Prime 20kVA Deutz Diesel Generators With Weather Proof Soundproof
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Alternator Brand | MARATHON | Controller | Deep Sea/Smartgen |
|---|---|---|---|
| Cooling System | Water | Engine Brand | Deutz |
| Frequency | 50Hz | Fuel Type | Diesel |
| Insulation Class | H/F | Noise Level | Low |
| Phase | Single/Three | Power Output | 16kW |
| Protection Class | IP23/IP54 | Speed | 1500rpm |
| Voltage | 400V/230V | Warranty | 1-3 Years |
| Highlight | 20kVA Deutz Diesel Generators,Prime Deutz Diesel Generators,Soundproof deutz 20kva generator |
||
Product Description

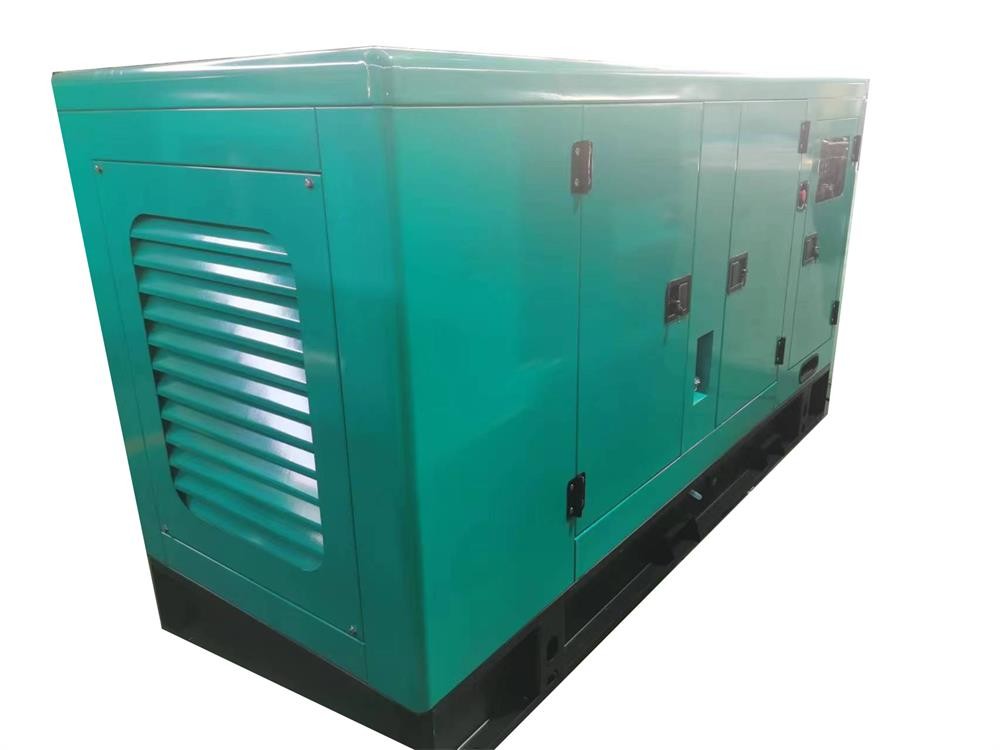

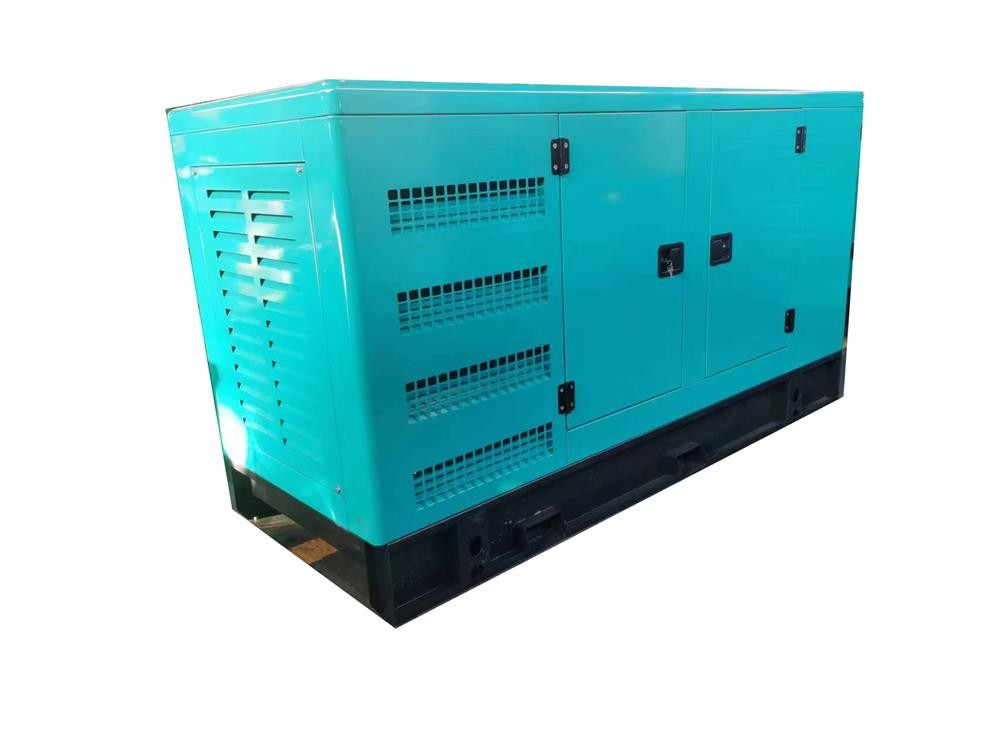

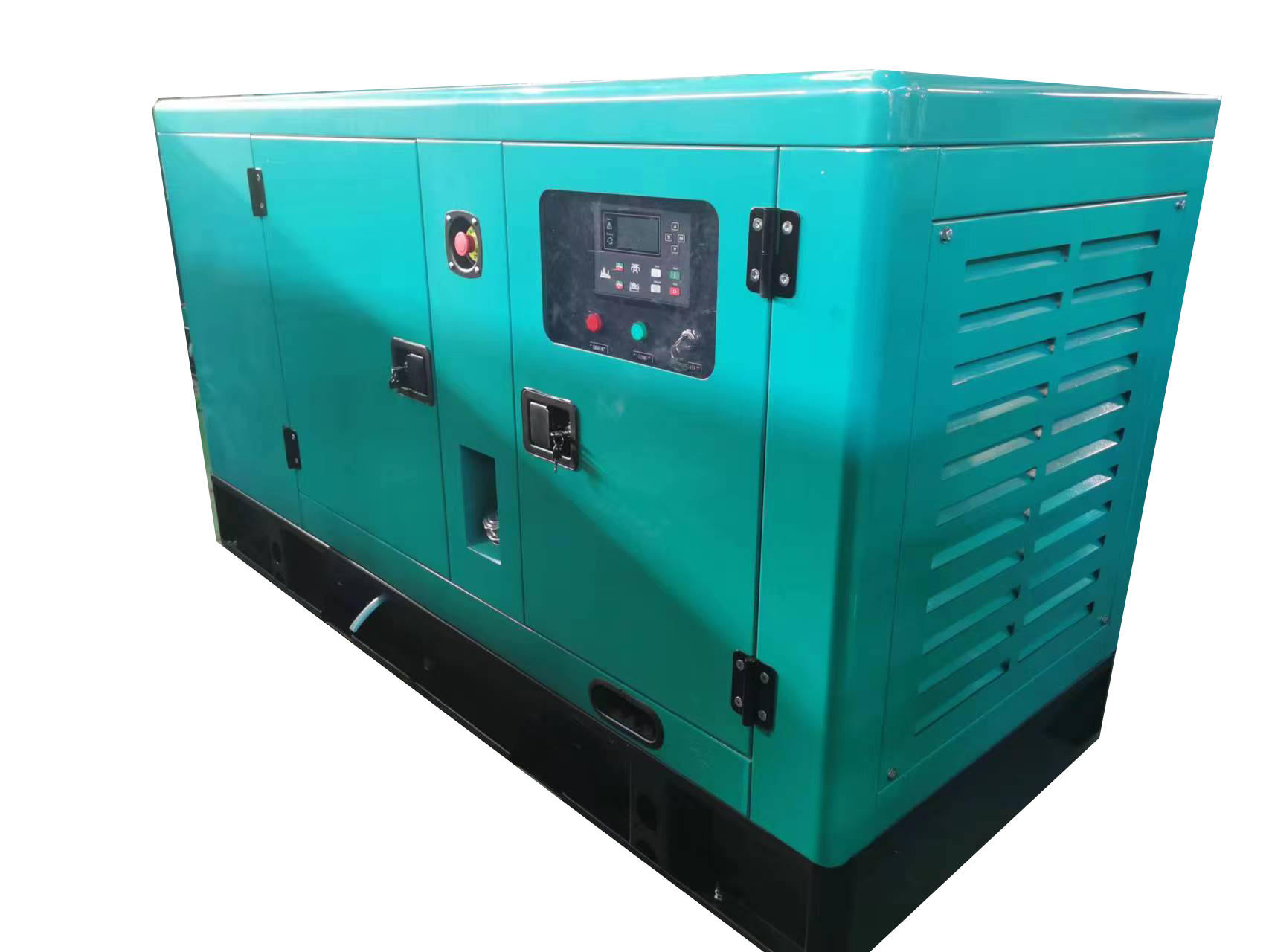

Prime 20kVA Deutz China Diesel Generator Set with Weather-Proof & Soundproof
PRODUCT ADVANTAGE
(1) Our canopy is made of cold-rolled sheet, providing enhanced strength in all positions.
(2) Our spray-painted plastics undergo pickling and phosphating pretreatment, ensuring the paint surface remains colorfast even after five years of outdoor exposure.
(3) Customers can choose from a variety of canopy colors as per their requirements.
(4) Rigorous testing includes 50% load, 75% load, 100% load, and 110% load capacity testing.
(5) Forklift pockets are conveniently located on the base frame for easy loading and unloading.
(6) Customers can request a logo to be made, provided the order quantity is at least 10 units or one full container.
TECHNICAL DATA:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG22DE | TG22DES |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 Phase, 4 Wires | |
| Rate Current | 28.9A | |
| Prime Power | 16kW / 20kVA | |
| Standby Power | 18kW / 22kVA | |
| Engine Model | Deutz BFM3 G1 | |
| Alternator Model | Marathon GM-16-4 | |
| Controller | DATAKOM DKG-507 | |
| Weight & Dimensions | ||
| Length (mm) | 1500 | 2000 |
| width (mm) | 750 | 900 |
| Height (mm) | 1000 | 1250 |
| Weight (kgs) | 680 | 900 |
| Engine Specification | ||
| Brand | Deutz | |
| Engine Model | BFM3 G1 | |
| Standby power (kw) | 22 | |
| Injection | Indirect | |
| Aspiration | Naturally Aspirated | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 98 x 105 | |
| Displacement (L) | 3.168 | |
| Cooling | water | |
| Compression Ratio | 18.5:1 | |
| Engine Oil capacity (L) | 4.8 | |
| Coolant Capacity ( In radiator) | 4.8 | |
| Governor | Electric (GAC) | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 50Hz | |
| 100% Load (L/h) | 5.4 | |
| 75% Load (L/h) | 4.0 | |
| 50% Load (L/h) | 2.8 | |
| 25% Load (L/h) | 1.6 | |
| Alternator Specification | ||
| Brand | Marathon | |
| Model | GM-16-4 | |
| Rate Output (kVA) | 20 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | DATAKOM | |
| Model | DKG-507 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| CANBUS & MPU VERSIONS | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Diesel Generator Set / Silent Diesel Generator Set / Soundproof Diesel Generator Set / Trailer Type Diesel Generator Set / Container Type Diesel Generator Set
- Our company cooperates with famous diesel engine brands - Powered by Cummins, Deutz , Perkins , Ricardo, Weichai, SDEC, Yuchai, FAW, Yangdong, VMAN engines.
- Equipped with famous Brushless alternators - Optional Stamford, Leroy Somer, Marathon, Mecc alte and China brand alternators.
- Equipped with a 50°C radiator with fan, an effective engine cooling system ensures long-time working.
- Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control models, Deep sea, Smartgen , ComAp and DATAKOM
- Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
- Equipped with high density sound-absorbing material -- sound insulation, fireproofing
- Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
- Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
- High protected class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
- New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
- Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
- Double open doors on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
- All new design for diesel generator set of Silent, Super silent, Soundproof, Trailer type, 20ft / 40HQ Container type.
- Our generator set complies with all main standards, such as: GB/T2820, ISO8528, IEC34, CE standard
FAQ
Q: Do you offer OEM/ODM service?
A: Yes, we do provide OEM and ODM services.
Q: What are your payment terms?
A: Our payment terms are 30% advance payment via T/T, with the balance to be paid before shipment. Alternatively, we accept irrevocable L/C.
Q: What is your lead time?
A: Generally, it takes about 15 days from receipt of deposit or original L/C. However, if your order requires a specific design, the delivery time may be longer.
Q: What certificates do you hold?
A: We have CE and ISO certifications. Additionally, we can apply for specific certificates for different countries, such as SONCAP for Nigeria, CIQ for Egypt, SASO for Saudi Arabia, etc.
Q: What is your minimum order quantity (MOQ)?
A: Our MOQ is above 1 unit.
