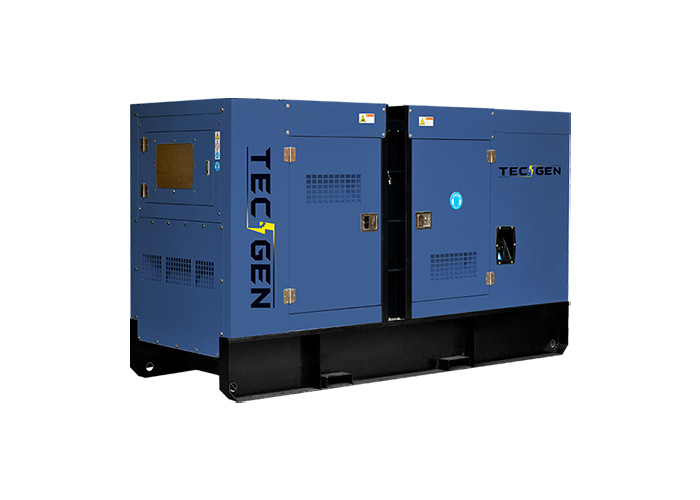

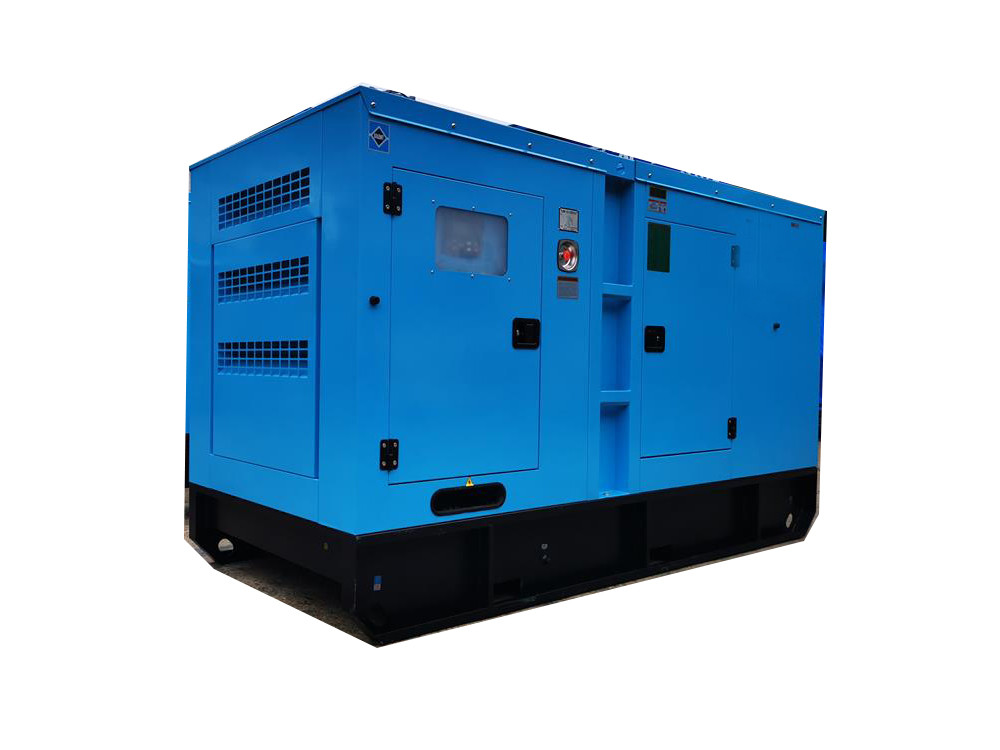

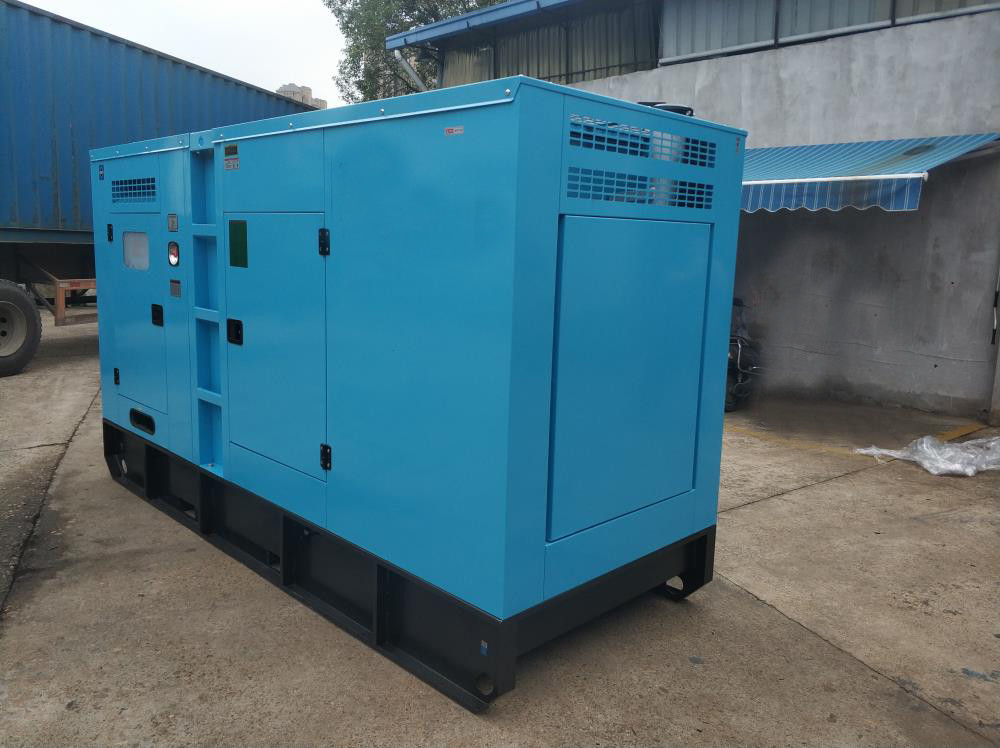

Standby Power Sources 50HZ SDEC Generators 250KVA 275KVA Generator Electric Diesel
| Place of Origin | China |
|---|---|
| Brand Name | SDEC |
| Certification | CE/SONCAP/FCC/SGS |
| Model Number | TG275SC |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plywood case Package or Plastic film package in container |
| Delivery Time | 15-20 working days after received deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open Type Or Silent Type | Altitude | ≤1000m |
|---|---|---|---|
| Ambient Temperature | -20℃~+40℃ | Control System | Smartgen/Deepsea/ComAp |
| Cooling System | Water Cooled | Frequency | 50/60Hz |
| Fuel | Diesel | Speed | 1500/1800rpm |
| Starting System | Electric/Manual | Color | Optional |
| Highlight | 50HZ SDEC Generators,SDEC Generators 250KVA,275KVA generator electric diesel |
||
Product Description
Standby Power Sources Diesel Elctric Power Generator 250KVA 275KVA Shangchai Diesel Generator Set
Standby Output: 275kVA/220kW
Prime Output: 250kVA/200kW
Payment Term One: 30% Paid By T/T for Deposit, 70% Paid by T/T Before Shipment.
Payment Term Two: 100% Paid by Irrevocable L/C At Sight.
Supply Scope: Diesel engine, Alternator, Automatic start / stop control panel, Dry type air fillter, fuel filter, oil filter, 4V D.C automatic battery charger, Max. 50 degree celsius radiator, Batteries, rack and cable, Ripple flex exhaust pipe, flange and muffler, Circuit breaker, Base Fuel tank, Complete users' manual.
Testing: Tecgen Power provides a full line of brand new and high quality products. Every unit is strictly factory tested.
Services Parts: Service and parts are avaiable from Tecgen Power or distributors in your location.
Specifications:
| Technical Parameter for Diesel Generator | Genset Model | TG275SC |
| Prime Power | 250kVA/200kW | |
| Standby Power | 275kVA/220kW | |
| Frequency | 50Hz | |
| Rated Voltage | 400V | |
| Power Factor | 0.8 | |
| Engine Brand | SDEC | |
| Engine Model | SC9D340D2 | |
| Alternator Brand | Tecgen Stamford | |
| Alternator Model | TGI274S-200 | |
| Engine General Data | Engine Power(kW) | 250 |
| Cyl / Arrangement | 6L | |
| Air Intake way | Turbo | |
| Bore×Stroke (mm×mm) | 114x144 | |
| Speed Governor | Electrical | |
| Fuel Consumption (g/kw.h)) | 195 | |
| Alternator Data | Model | TGI274S-200 |
| Brand | Tecgen Stamford | |
| Rate Output | 250kVA/200kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Control System | Brand | Smartgen |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brand | Deepsea, ComAp | |
| Starting Voltage | 24V | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
Tecgen Power Generator Feature:
1, Output range: 10kVA to 3000kVA Heavy Duty diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date. During the guarantee period, our Tecgen Power will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts maintenance for gen-set
