500kW SDEC Generators
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | SDEC Diesel Genset | Rate Power | 500kW / 625kVA |
|---|---|---|---|
| Max Power | 550kW / 688kVA | Frequency | 50Hz |
| Rate Voltage | 415 / 240V | Engine Brand | SDEC |
| Engine Model | 6KTAA25-G39 | Cylinder | 6 |
| Alternator Brand | Copy Stamford | Alternator Model | TGI354S500 |
| Type | Open-type | Origin | Fuzhou |
| Highlight | 500kW SDEC Generators,625kVA SDEC Generators,240V sdec genset |
||
Product Description

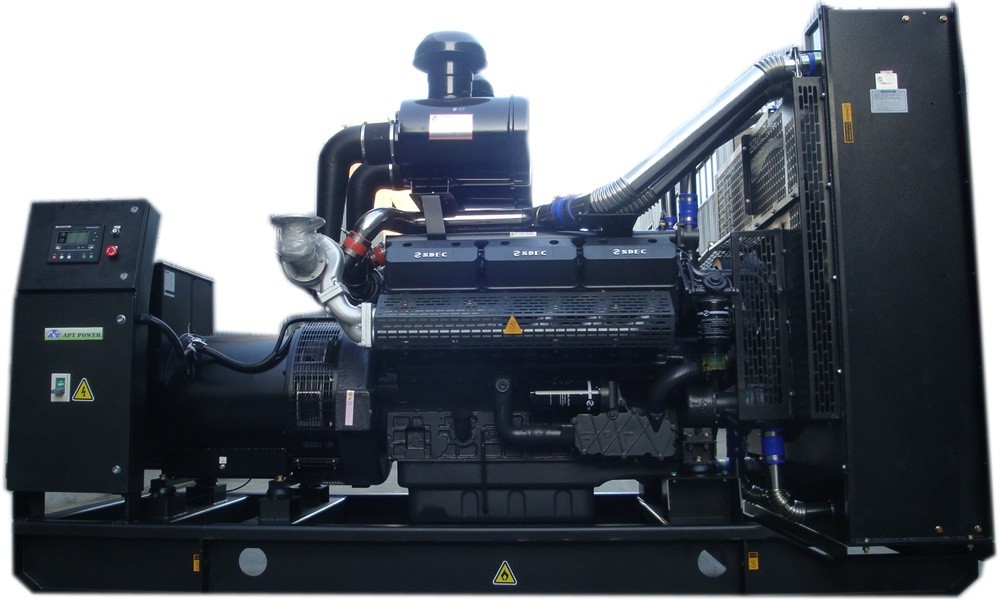

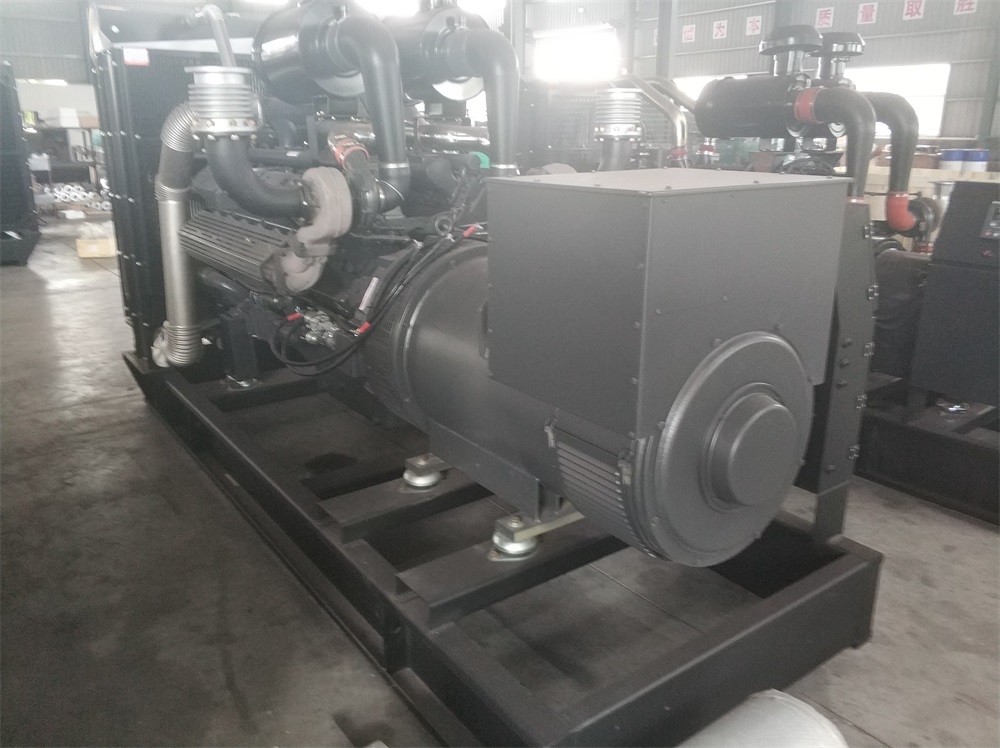

500kW China Engine SDEC Diesel Generating Set Building Back-up Power Source 625kVA Prime
Customize Your Power Generator to Perfection
At TECGEN, we understand that every power need is unique. That's why we offer a range of optional features to tailor your generator to your exact specifications:
1. Frequency and Voltage Options: Choose between 50Hz (380/220V, 400/230V, 415V/240V, 440V, etc.) or 60Hz (110/220V, 115/230V, 127/220V, 220/440V, etc.) configurations to match your specific requirements.
2. Phase Selection: Option for single-phase or three-phase power supply to suit your operational needs.
3. Automatic Transfer Switch (ATS): Ensure seamless power transfer between sources with an optional ATS, guaranteeing uninterrupted operation during power outages.
4. Heater Options: For enhanced performance in cold environments, select from water and oil heaters to protect your generator and maintain optimal working conditions.
5. Container Design: Choose our generator sets designed for 20FT/40HQ containers, offering mobility and easy deployment wherever needed.
6. Customization: We're here to accommodate any other unique requirements or specifications of electric generator you might have.
500kW SDEC Genset TECHNICAL DATA:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG688SD | TG688SDS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 415/240V | |
| Phase | 3 | |
| Rate Current | 869.5A | |
| Prime Power (KW/KVA) | 500 / 625 | |
| Standby Power(KW/KVA) | 550 / 688 | |
| Engine Model | SDEC 6KTAA25-G39 | |
| Alternator Model | TGI354S500 | |
| Controller | Smartgen HGM6120N | |
| Weight & Dimensions | ||
| Length (mm) | 3500 | 4500 |
| width (mm) | 1600 | 1900 |
| Height (mm) | 2100 | 2300 |
| Weight (kgs) | 3700 | 4500 |

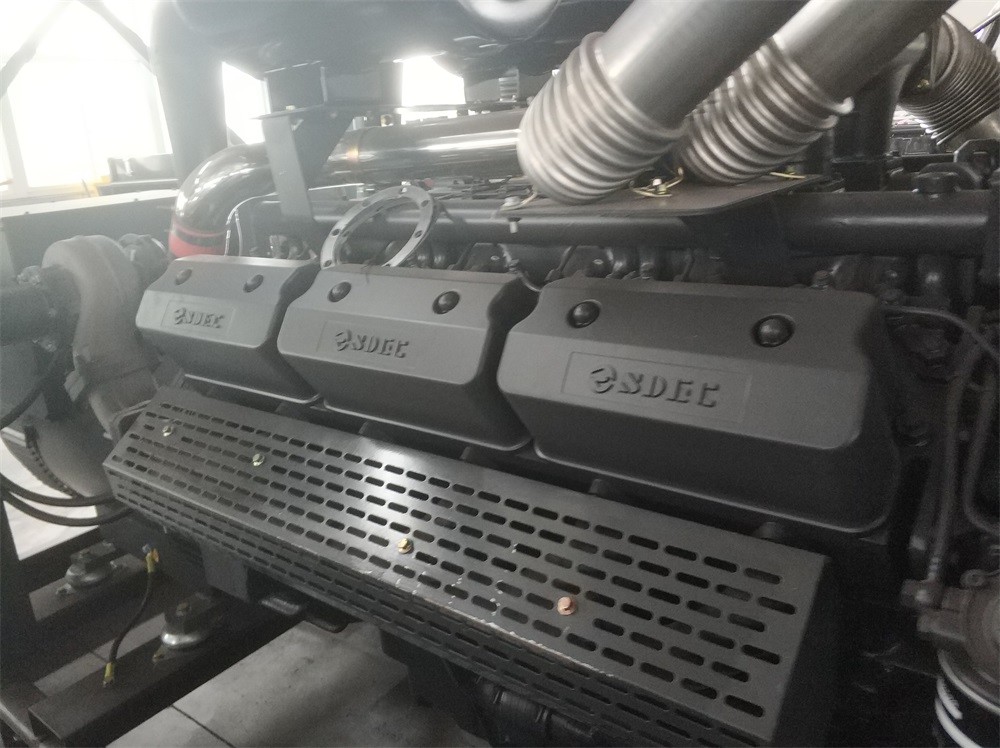

| Engine Specification | ||
| Brand | SDEC | |
| Engine Model | 6KTAA25-G39 | |
| Prime power (kw) | 572 | |
| Injection | Indirect | |
| Aspiration | Turbocharged & Intercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 170 x 185 | |
| Displacement (L) | 25.18 | |
| Cooling | water | |
| Compression Ratio | 16:1 | |
| Engine Oil capacity (L) | 125 | |
| Coolant Capacity ( In radiator) | 125 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 131.0 | |
| 75% Load (L/h) | 98.2 | |
| 50% Load (L/h) | 65.5 | |
| 25% Load (L/h) | 32.7 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI354S500 | |
| Rate Output (kW) | 500 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Smartgen | |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
We are Factory!
Product Features:
- We work with renowned diesel engines – Powered by Cummins, Perkins, Deutz, Loverock, Doosan, SDEC, Ricardo, Isuzu, FAW, Yangdong, Weichai, MTU, and others.
- Equipped with top-tier Brushless alternators – select from Stamford, Leroy Somer, Marathon, Tecgen, Mecc alte., and more.
- With a 50°C radiator and fan, our generator set’s engine cooling system ensures continuous long-term operation.
- Our generator set is equipped with an advanced control system, ATS system, remote control system, parallel operation system. Optional control models include Deep sea, Smartgen, ComAp and DATAKOM.
- The generator set’s protective canopy is made of High-quality steel of 2MM to 6MM thickness.
- The generator set is equipped with high-density sound-absorbing material for sound insulation and fireproofing.
- Our generator set includes a 12V/24V DC battery with charger and connection wire.
- The generator set is equipped with a 10-12 hours fuel tank with a fuel indicator for long runtime.
- The generator set’s control box and power output box have a high protection class IP55, are waterproof and Electric leakage protected with a Breaker for added safety.
- The air inflow and air outlet are designed for noise reduction and improved engine efficiency by 15%.
- The generator set has a beautiful and practical design for forklift access, with convenient water and oil outlets for easy maintenance.
- The double-sided open doors provide easy access to every part of the engine and alternator for servicing personnel.
- We offer all-new designs for Silent, Super Silent, Soundproof, Trailer-mounted and Container-mounted diesel generator sets.
- Our generator sets comply with all major standards including GB/T2820, ISO8528, IEC34, CE, EPA Tier4 standards, etc., making them reliable choices for your needs.
You Ask, We Answer - FAQ
Got questions? We've got answers! At Tecgen, we are committed to providing clarity and transparency for our valued customers. Here's the scoop on the most frequently asked questions:
1. Minimum Order Quantity (MOQ):
- Q: What's your MOQ?
- A: Just one! We welcome orders of all sizes, whether you need a single piece or more.
2. Payment Preferences:
- Q: What's your preferred payment method?
- A: For your convenience, we accept Wire Transfers (T/T) and Letters of Credit (L/C) to facilitate secure transactions.
3. Delivery Timeframe:
- Q: How soon can I expect delivery?
- A: You can typically count on receiving your order within 10 to 15 working days, depending on your specific requirements.
4. Port of Shipment:
- Q: Where do you ship from?
- A: Our products sail from Fuzhou port, China, ensuring efficient and reliable transportation.
5. Brand Customization:
- Q: Can I use my brand name on your diesel generator?
- A: Absolutely! We welcome Original Equipment Manufacturing (OEM) and Original Design Manufacturing (ODM) collaborations, so your brand shines.
