10kVA 15kVA Yangdong Genset 20kVA 25kVA 30kVA 40KVA 50kVA 60kVA 75kVA
| Place of Origin | China |
|---|---|
| Brand Name | Yangdong |
| Certification | CE/SONCAP/FCC/SGS |
| Model Number | TG30YD |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plywood case Package or Plastic film package in container |
| Delivery Time | 15-20 working days after received deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Diesel Generator Set | Type | Open Type Or Silent Type |
|---|---|---|---|
| Engine Brand | Yangdong | Alternator Brand | Tecgen |
| Control System | AMF/ATS | Output Type | AC Three Phase |
| Conditions Of Use | Land Use | Cooling Method | Water Cooling |
| Ambient Temp | ≤40 C | Genset Color | Color Is Optional |
| Highlight | 15kVA Yangdong Genset,10kVA Yangdong Genset,75kVA 10kva diesel generator |
||
Product Description
Good Quality Diesel Generators Yangdong Diesel Genset 10kVA 15kVA 20kVA 25kVA 30kVA 40KVA 50kVA 60kVA 75kVA
1) Engine: Yangdong diesel engine, Water-cooled
2) Alternator: Tecgen Stamford Tech Alternator
Brushless H class insulation, Self excitation, IP 23 protection, AVR regulator,THF < 5%,low radio interference.
3) 3 phase 4 wires / 1 phase 2 wires
4) Three phase voltage Available :208V/220V/230V/240V/380V/390V/400V/415V/440V/460V/480V
Single phase available:100-250V
PRODUCTS DETAILS

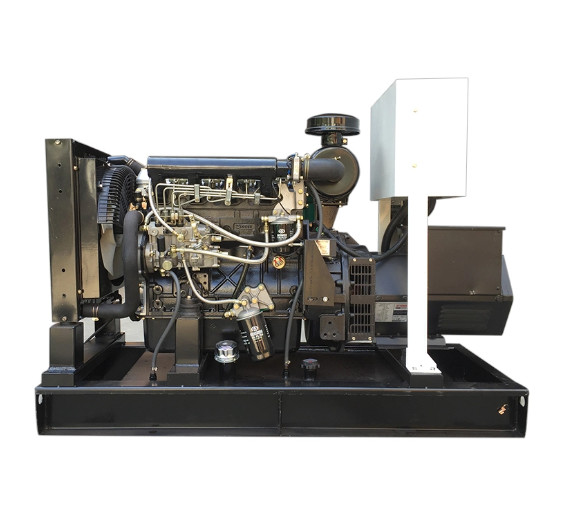

Yangdong Diesel Generator Set
50HZ 3 Phase 380V
| Genset Model | Genset Standby Power |
Genset Prime Power |
Engine Model | Alternator Model | ||
| KVA | KW | KVA | KW | |||
| TG10YD | 10 | 8 | 9 | 7 | YD380D | TG164S-7 |
| TG12YD | 12 | 10 | 11 | 9 | YD385D | TG164S-9 |
| TG15YD | 15 | 12 | 14 | 11 | YD480D | TG164S-11 |
| TG18YD | 18 | 14 | 16 | 13 | YND485D | TG164S-13 |
| TG22YD | 22 | 18 | 20 | 16 | YSD490D | TG184S-16 |
| TG25YD | 25 | 20 | 23 | 18 | Y490D | TG184S-18 |
| TG28YD | 28 | 22 | 25 | 20 | Y495D | TG184S-20 |
| TG30YD | 33 | 27 | 30 | 24 | Y4100D | TG184S-24 |
| TG35YD | 35 | 28 | 31 | 25 | Y4102D | TG184S-25 |
| TG40YD | 41 | 33 | 38 | 30 | Y4105D | TG184S-30 |
| TG45YD | 45 | 36 | 40 | 32 | Y4102ZD | TG184S-32 |
| TG55YD | 55 | 44 | 50 | 40 | Y4102ZLD | TG224S-40 |
| TG60YD | 60 | 48 | 55 | 44 | Y4105ZLD | TG224S-44 |
| TG70YD | 69 | 55 | 63 | 50 | YD4EZLD | TG224S-50 |
| TG83YD | 83 | 66 | 75 | 60 | Y4110ZLD | TG224S-60 |
Genset Supply Scope:
1. Brand new Yangdong water cooled diesel engine
2. Brand new Copy Stamford
3. Radiator with engine driven fan mounted on skid.
4. Deepsea,Comap,Harsen,Smartgen Set mounted control panel
5. CHNT,DELIXI,MCCB mounted
6. Anti-vibration mountings as to ensure the compete genset running under stablilization.
7. 12V/24V DC Electric start system and engine driven battery charger, lead-acid type starting batteries
8. Industrial silencers with flexible connects and elbow
9. Base fuel tank, with fuel gauge integrated in the base frame of generating set
10. Test report of generator, Set of drawings and O&M manuals
11.Optional Choice:Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose.
Genset Feature:
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
Service:
1)Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2)Service quality assurance:
Our sale staffs are all experlence and professional ,who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service:
We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply:
We provide all kinds of spare parts and technical support.
