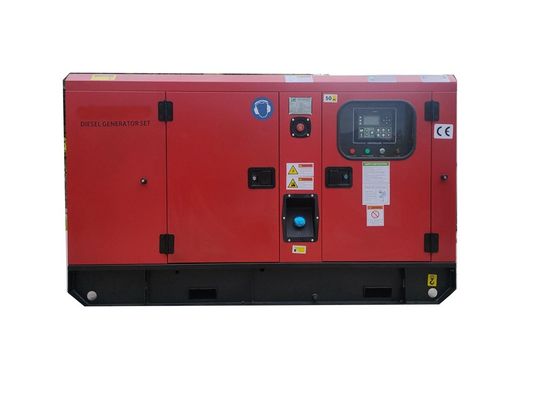

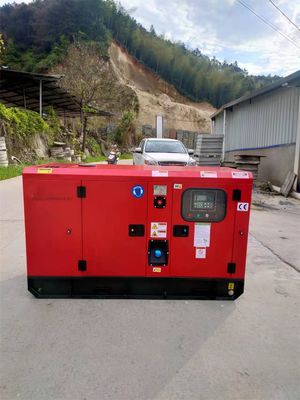

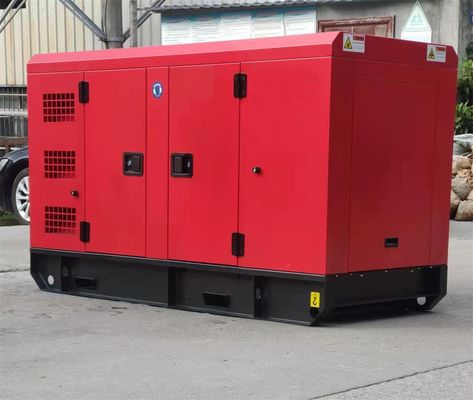

35kVA Duetz Diesel Generator With 100A In Built Auto Transfer Switch 28kW Water Cooled

35kVA Duetz Diesel Generator with 100A In-built Auto Transfer Switch 28kW Water Cooled Diesel Generator​

Tecgen DEUTZ Diesel Generator Set Standard Features:

1. Rated Power : 20KVA - 750KVA (16kW – 600kW)

2. Frequency :50/60Hz

3. Speed :1500/1800rpm

4. Phase :3phase ; single phase

5. Voltage: 110V - 460V

6. Fuel tank : 8 hours

7. Noise level : below 68db@7m

8. Environmental temperature : -5ºC ~ 50ºC

9. Water tank :50ºC environmental protection water tank

10. Diesel engine :Diesel , four stroke , water cooling

11. Alternator : brushless alternator /Stamford / Mecc alte / Leroy Somer / Marathon / Copy Stamford

12. Controller : Deepsea / ComAp / Smartgen / DATAKOM

13. Leading time: Normal 15 days

14. Starting method : Manual or electronic , adjustable

15. Package : Plastic wrapping film

16. Export port : Fuzhou Port

17. Optional : ATS ,water heater , fuel heater, Alternator heater.

18. Electrical start system with maintain free battery & engine driven battery charger;

19. Residence silencer with flexible connections & elbow;

20. Full Set of Test report, drawings & manuals include.

28kW / 35kVA DEUTZ DIESEL GENERATOR SET TECHNICAL DATA:

Water Cooled Diesel Generator Set / Silent Diesel Generator Set / Soundproof Diesel Generator Set / Trailer Type Diesel Generator Set / Container Type Diesel Generator Set

1. Our company cooperates with famous diesel engine brands - Powered by Cummins, Deutz , Perkins , Ricardo, Weichai, SDEC, Yuchai, FAW, Yangdong, VMAN engines.
2. Equipped with famous Brushless alternators - Optional Stamford, Leroy Somer, Marathon, Mecc alte and China brand alternators.
3. Equipped with a 50°C radiator with fan, an effective engine cooling system ensures long-time working.
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control models, Deep sea, Smartgen , ComAp and DATAKOM
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing
7. Automatic Diesel Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
9. High protected class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
12. Double open doors on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
13. All new design for diesel generator set of Silent, Super silent, Soundproof, Trailer type, 20ft / 40HQ Container type.
14. Our generator set complies with all main standards, such as: GB/T2820, ISO8528, IEC34, CE standard

FAQ

Q: Do you offer OEM/ODM service?

A: Yes, we do provide OEM and ODM services.

Q: What are your payment terms?

A: Our payment terms are 30% advance payment via T/T, with the balance to be paid before shipment. Alternatively, we accept irrevocable L/C.

Q: What is your lead time?

A: Generally, it takes about 15 days from receipt of deposit or original L/C. However, if your order requires a specific design, the delivery time may be longer.

Q: What certificates do you hold?

A: We have CE and ISO certifications. Additionally, we can apply for specific certificates for different countries, such as SONCAP for Nigeria, CIQ for Egypt, SASO for Saudi Arabia, etc.

Q: What is your minimum order quantity (MOQ)?

A: Our MOQ is above 1 unit.
