Powerful 40kVA Deutz Genset 16kW-600kW 1500rpm Silent
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 50Hz | Warranty | 1-2 Years |
|---|---|---|---|
| Noise Level | 65dB(A) | Power Prime Output | 16kW - 600kW |
| Engine Brand | Deutz | Genset Type | Silent / Super Silent / Container Silent |
| Speed | 1500rpm | Control System | AMF/ATS/Manual |
| Highlight | 40kVA deutz genset,deutz genset 16kW,600kW silent diesel generator |
||
Product Description

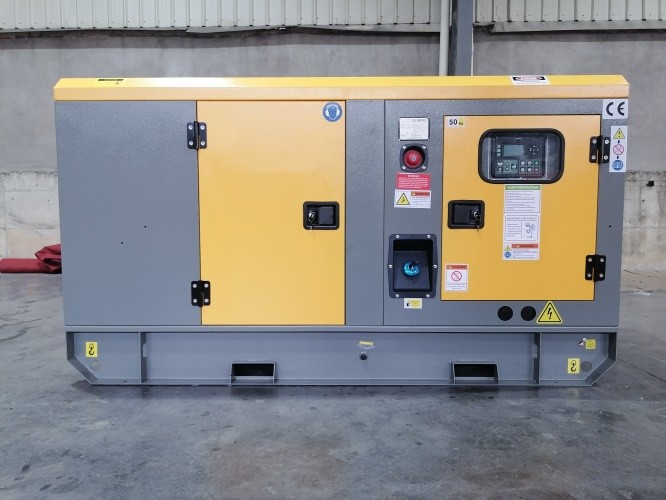

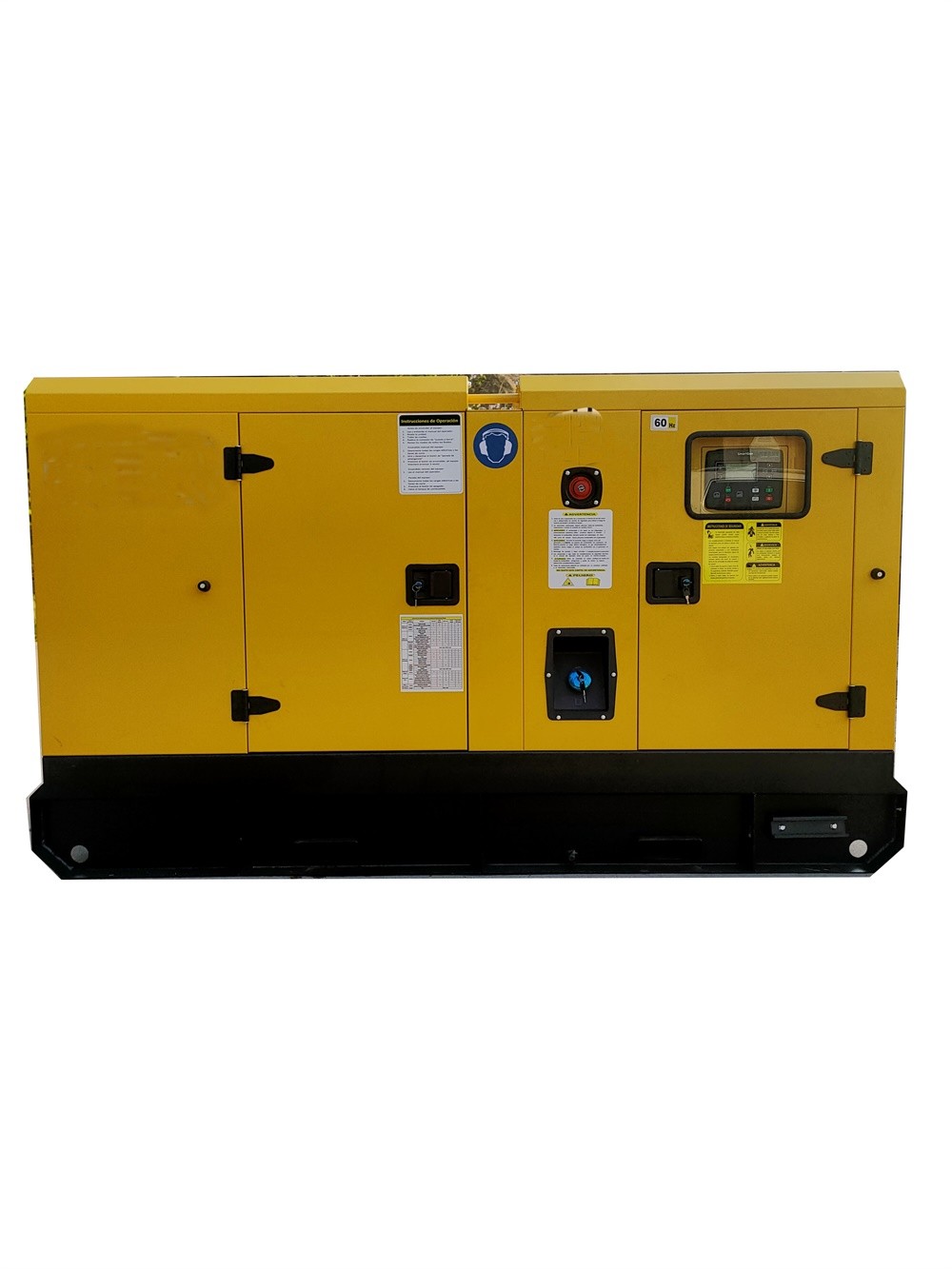

Powerful 40kVA Diesel Generator range 16kW - 600kW 1500rpm Speed in Silent Design
Product Description:
Deutz Diesel Generators are general diesel generators powered by diesel engines, providing reliable and cost-effective power solutions. These diesel powered generators are available in a range of sizes from 16kW to 600kW, and feature a variety of genset types, including silent, super silent, and container silent. The 1500rpm speed engine is also available, and powered by the trusted Deutz brand. Additionally, these diesel generators are equipped with control systems including AMF/ATS/Manual.
Deutz Diesel Generators are essential for both commercial and industrial applications, providing reliable power and efficiency. These generators are designed to meet the most stringent environmental regulations, and feature excellent fuel economy. With a variety of options available, Deutz Diesel Generators are the perfect choice for any application. Whether you are looking for a discreet solution for a residential area, or need a powerful generator for a large-scale application, Deutz Diesel Generators are the ideal choice.
Features:
- Product Name: Deutz Diesel Generators
- Warranty: 1-2 Years
- Genset Type: Silent / Super Silent / Container Silent
- Control System: AMF/ATS/Manual
- Speed: 1500rpm
- Power prime Output: 32kW - 40kW
- Diesel Power Generator Set
- Diesel Powered Generator
- Diesel Power Generator Set
Technical Parameters:
| Technical Specification: | ||
| 40kVA Deutz Generator Set Specification | ||
| Genset Model | TG44DE | TG44DES |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 Phase, 4 Wires | |
| Rate Current | 57.A | |
| Rate Power | 32kW / 40kVA | |
| Standby Power | 35kW / 44kVA | |
| Engine Model | Deutz BFM3T | |
| Alternator Model | Marathon MP-40-4 | |
| Controller | ComAp AMF9 | |
| Weight & Dimensions | ||
| Length (mm) | 1550 | 2050 |
| Width (mm) | 750 | 900 |
| Height (mm) | 1000 | 1250 |
| Weight (kgs) | 800 | 1000 |
| Engine Specification | ||
| Brand | Deutz | |
| Engine Model | BFM3T | |
| Standby power (kw) | 44 | |
| Injection | Indirect | |
| Aspiration | Turbocharged | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 98 x 105 | |
| Displacement (L) | 3.168 | |
| Cooling | water | |
| Compression Ratio | 18.5:1 | |
| Engine Oil capacity (L) | 4.8 | |
| Coolant Capacity ( In radiator) | 4.8 | |
| Governor | Electric (GAC) | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 50Hz | |
| 100% Load (L/h) | 10.3 | |
| 75% Load (L/h) | 8.0 | |
| 50% Load (L/h) | 5.5 | |
| 25% Load (L/h) | 3.0 | |
| Alternator Specification | ||
| Brand | Marathon | |
| Model | MP-40-4 | |
| Rate Output (kVA) | 40 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulater | AVR | |
| Steady StateVoltage Regulater | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | ComAp | |
| Model | AMF9 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| CANBUS & MPU VERSIONS | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Deutz Diesel Generators are widely used in emergency, industrial and commercial applications. The brand DEUTZ stands for reliability and quality, and the TGDES diesel generator set, with a power prime output range of 16kW to 600kW, is no exception. This generator is certified with ISO, CE, SASO and CIQ, and is available with a minimum order quantity of one set. The package includes plastic film package in container, and delivery time is 15 working days. Payment can be made through T/T or L/C. The Deutz genset comes with three types of genset: silent, super silent and container silent. It also has a control system of AMF/ATS/Manual and a warranty of 1-2 years. The engine is of the DEUTZ brand, and the supply ability is 350 units per month. Price is negotiable. This DEUTZ diesel generator set is the perfect solution for emergency, industrial and commercial solutions.
Customization:
Deutz Diesel Generators
- Brand Name: Deutz Genset
- Model Number: TG44DES
- Place of Origin: Fuzhou, China
- Certification: ISO / CE / SASO / CIQ
- Minimum Order Quantity: 1 SET
- Price: Negotiation
- Packaging Details: Plastic film package in container
- Delivery Time: 15 Working Days
- Payment Terms: T/T / L/C
- Supply Ability: 350 Units Per Month
- Power prime Output: 32kW / 40
- Noise Level: 65dB(A)
- Speed: 1500rpm
- Genset Type: Silent / Super Silent / Container Silent
- Engine Brand: Deutz
- Keywords: Diesel Engine Generator, Diesel Generator Sets, DEUTZ Diesel Generator Set
Support and Services:
Technical Support and Services for Deutz Diesel Generators
At Deutz, we provide our customers with the highest quality technical support and services for Deutz Diesel Generators. Our highly experienced and knowledgeable team of engineers can provide you with the best advice and support for any issues related to your Deutz generator.
We offer a wide range of services such as regular maintenance, repairs, upgrades, and installation services. We have a dedicated customer service team that is available 24/7 to answer any of your questions or concerns. Our team is committed to providing you with the best quality service and support for your Deutz Diesel Generator.
We understand the importance of having a reliable and efficient generator. That’s why we are dedicated to providing you with the best technical support and services. We have the experience and expertise to help you get the most out of your Deutz Diesel Generator.
Packing and Shipping:
Packaging and Shipping for Deutz Diesel Generators
Packaging: All Deutz Diesel Generators are securely packaged in high-grade cardboard boxes and shrink-wrapped for extra protection. All edges and corners are protected to ensure the generator arrives in perfect condition.
Shipping: To ensure safe and fast delivery, all Deutz Diesel Generators are shipped via a trusted delivery service. Tracking information is provided with each order for easy monitoring of shipment progress.
FAQ:
Q1: What is the brand name of the Deutz Diesel Generator?
A1: The brand name of the Deutz Diesel Generator is Deutz Genset.
Q2: What is the model number of the Deutz Diesel Generator?
A2: The model number of the Deutz Diesel Generator is TG44DES.
Q3: Where is the Deutz Diesel Generator manufactured?
A3: The Deutz Diesel Generator is manufactured in Fuzhou, China.
Q4: What certifications does the Deutz Diesel Generator have?
A4: The Deutz Diesel Generator is certified with ISO / CE / SASO / CIQ.
Q5: What is the minimum order quantity for the Deutz Diesel Generator?
A5: The minimum order quantity for the Deutz Diesel Generator is 1 SET.
