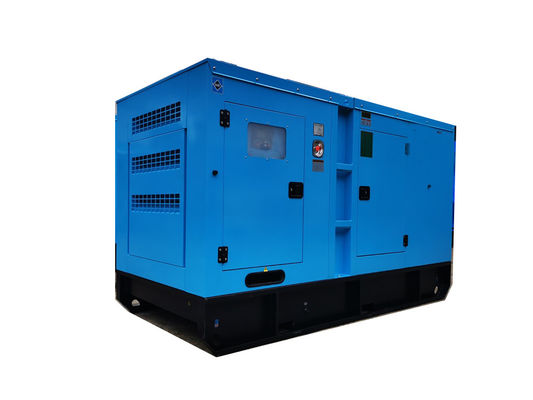

140kW Diesel Industrial Generator Silent Type With Brushless Single Bearing Alternator
Place of Origin | Fuzhou, China |
---|---|
Brand Name | Deutz Genset |
Certification | ISO / CE / SASO / CIQ |
Model Number | TG198DES & TG206DES |
Minimum Order Quantity | 1 SET |
Price | Negotiation |
Packaging Details | Plastic film package in container |
Delivery Time | 15 Working Days |
Payment Terms | T/T / L/C |
Supply Ability | 350 Units Per Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xWarranty | 1-2 Years | Control System | AMF/ATS/Manual |
---|---|---|---|
Engine Brand | Deutz | Noise Level | 65dB(A) |
Speed | 1500rpm | Frequency | 50Hz |
Power Prime Output | 144kW / 180kVA & 150kW / 188kVA | Genset Type | Silent / Super Silent / Container Silent |
Highlight | Diesel industrial generator,140kW industrial generator,Silent Type deutz generator |
140kW industrial diesel generator silent type with brushless single bearing alternator
Product Description:
Deutz Diesel Generators are the perfect choice for reliable power generation. With a 1-2 year standard warranty, these diesel generator sets are designed to operate at a speed of 1500rpm, a noise level of 65dB(A) and a frequency of 50Hz. You have the choice of utilizing the control system of AMF/ATS/Manual for maximum efficiency. Deutz Diesel Generators are renowned for their reliability and feature high quality components to ensure maximum power output. Invest in a Deutz Diesel Generator today to enjoy a reliable and reliable source of power generation.
Features:
- Product Name: Deutz Diesel Generators
- Frequency: 50Hz
- Noise Level: 65dB(A)
- Speed: 1500rpm
- Control System: AMF/ATS/Manual
- Warranty: 1-2 Years
- Industrial Diesel Generator
- Diesel Power Generator Set

Technical Parameters:
Technical Specification: | ||||
180kVA & 188kVA Diesel Genset Specification | ||||
Genset Model | TG198DE | TG198DES | TG206DE | TG206DES |
Open | Silent | Open | Silent | |
Frequency | 50Hz | |||
Voltage | 400/230V | |||
Phase | 3 | |||
Rate Current (A) | 259.8 | 271.4 | ||
Prime Power (KW/KVA) | 144 / 180 | 150 / 188 | ||
Standby Power(KW/KVA | 158 / 198 | 165 / 206 | ||
Engine Model | BF6M1013EC G2 | BF6M1013EC G2 | ||
Alternator Model | UCI 274G | TAL-A44-M | ||
Controller | ComAp AMF9 | |||
Fuel Tank Capacity | 312L | |||
Weight And Demensions | ||||
Length (mm) | 2350 | 3500 | 2350 | 3500 |
width (mm) | 1100 | 1250 | 1100 | 1250 |
Height (mm) | 1600 | 1750 | 1600 | 1750 |
Weight (kgs) | 1780 | 2450 | 1780 | 2450 |
Engine Specification | ||||
Engine Brand | Deutz | |||
Engine Model | BF6M1013EC G2 | |||
Standby power (kw) | 153 | |||
Injection | Indirect | |||
Aspiration | Turbocharged & CAC | |||
No. of cylinders | 6 | |||
Bore of Stroke (mm) | 108 x130 | |||
Displacement (L) | 7.15 | |||
Cooling | water | |||
Compression Ratio | 19:1 | |||
Engine Oil capacity (L) | 9.8 | |||
Coolant Capacity ( In radiator) | 9.8 | |||
Governor | Electric (EMR) | |||
Air Filter | Dry Element | |||
Fuel consumption | @ 50Hz | |||
100% Load (L/h) | 38.5 | |||
75% Load (L/h) | 28.9 | |||
50% Load (L/h) | 19.6 | |||
25% Load (L/h) | 10.9 | |||
Alternator Specification | ||||
Brand | Stamford | Leroy Somer | ||
Model | UCI 274G | TAL-A44-M | ||
Rate Output (kW) | 145.6 | 160 | ||
Pole | 4 | |||
Winding Connections | Star | |||
Insulation Class | H | |||
Enclosure | IP23 | |||
Altitude (m) | ≤1000 | |||
Voltage Regulator | AVR | |||
Steady State Voltage Regulator | 1% | |||
Bearing | single | |||
Controller System | ||||
Brand | ComAp | |||
Model | AMF9 | |||
Functions | Control with AMF module | |||
Static with auto. battery charger | ||||
Emergency stop push button | ||||
CANBUS & MPU VERSIONS | ||||
OPTIONAL EQUIPMENTS | ||||
ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts |
Applications:
Deutz Diesel Generators are the perfect choice for any application that requires reliable, efficient and powerful electric power. This model, the TG198DES & TG206DES, is a top-of-the-line diesel generator set that is designed and manufactured by the leading brand Deutz. It is certified by ISO, CE, SASO and CIQ, and is available in minimum order quantity of one SET. The price is negotiable, and it is packaged in plastic film in a container for delivery within 15 working days. The payment terms are T/T or L/C, and the supply ability is 350 units per month. It has a reliable engine brand, Deutz, with a noise level of 65dB(A). It is available in three types – silent, super silent and container silent – and is equipped with AMF/ATS/Manual control system and 1500rpm speed. Deutz Diesel Generators are an ideal choice for a variety of applications including electric diesel generators, diesel power generator set and diesel powered generator.
Customization:
Deutz Genset is an ideal Emergency Diesel Generator for commercial and industrial use, providing reliable power for any situation.
- Brand Name: Deutz Genset
- Model Number: TG198DES & TG206DES
- Place of Origin: Fuzhou, China
- Certification: ISO / CE / SASO / CIQ
- Minimum Order Quantity: 1 SET
- Price: Negotiation
- Packaging Details: Plastic film package in container
- Delivery Time: 15 Working Days
- Payment Terms: T/T / L/C
- Supply Ability: 350 Units Per Month
- Speed: 1500rpm
- Genset Type: Silent / Super Silent / Container Silent
- Frequency: 50Hz
- Power prime Output: 144kW / 180kVA & 150kW / 188kVA
- Control System: AMF/ATS/Manual
Our Deutz Diesel Generators are perfect for emergencies, supplying reliable power when you need it most. With a wide range of power outputs and types available, you are sure to find the perfect Electric Diesel Generator for your needs.
Support and Services:
At Deutz, we understand the importance of having reliable and efficient diesel generators. That's why we are committed to providing you with the best customer service and technical support.
Our technical support team consists of experienced engineers who are trained to provide you with the best possible support. We can answer any questions you may have about how to operate or maintain your Deutz diesel generator.
We also offer a variety of services to keep your generator running smoothly. Our service team is available to perform routine maintenance, such as oil and filter changes, as well as more complex repairs and overhauls.
No matter what your needs are, Deutz is here to help. Contact us today to learn more about our technical support and service options.

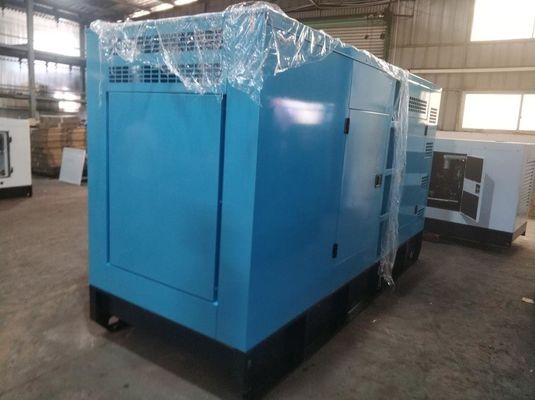

Packing and Shipping:
At Deutz Diesel Generators, we take great care to ensure that our generators are packaged and shipped safely to our customers. We use a combination of bespoke wooden crates and strong, durable packaging materials to protect our generators during transit.
Our wooden crates are custom-made to provide secure, reliable protection for our generators during shipping. We use high-grade plywood for the crates and reinforced metal bands to ensure that the crates remain secure and the generators remain safe.
We also use a range of other packaging materials to ensure that our generators are fully protected during transit. We use bubble wrap to protect against impacts, cardboard to keep the generator from shifting, and shrink wrap to keep the generator sealed and secure.
We also provide full tracking information for all orders so that our customers can stay up to date with the progress of their shipment. We use a range of reliable, secure couriers to ensure that the generators arrive safely and on time.



FAQ:
- Q1: What's the Brand Name of this generator?
- A1: The Brand Name is Deutz Genset.
- Q2: What's the Model Number?
- A2: The Model Number is TG198DES & TG206DES.
- Q3: Where is this generator made?
- A3: This generator is made in Fuzhou, China.
- Q4: Does this generator have any certifications?
- A4: Yes, this generator has ISO / CE / SASO / CIQ certification.
- Q5: What's the minimum order quantity and the price?
- A5: The minimum order quantity is 1 SET and the price is negotiable.
