Backup 130kVA Deutz Diesel Generators Heavy Duty 104kW Prime Power Genset For Home Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Silent / Super Silent / Container Silent | Warranty | 1-2 Years |
|---|---|---|---|
| Engine Brand | Deutz | Speed | 1500rpm |
| Control System | AMF/ATS/Manual | Noise Level | 65dB(A) |
| Frequency | 50Hz | Power Prime Output | 16kW - 600kW |
| Highlight | 130kVA Deutz Diesel Generators,Heavy Duty Deutz Diesel Generators,104kW heavy duty diesel generator |
||
Product Description

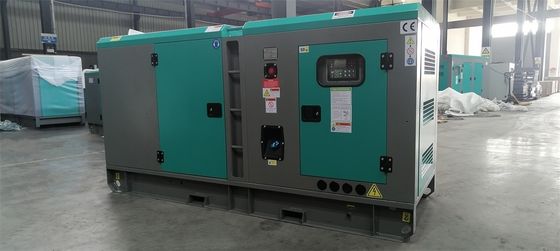

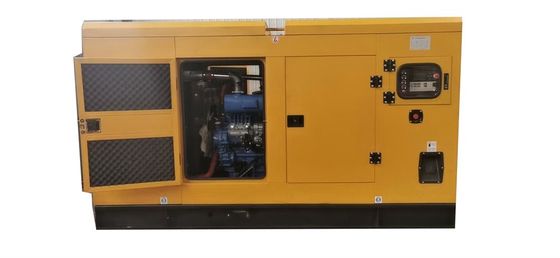

Backup 130kVA heavy duty diesel generator 104kW prime power genset for home use
Product Description:
Deutz Diesel Generators are the ideal choice for customers looking for a reliable and powerful electric diesel generator set. Their state-of-the-art design and superior engineering make them an excellent choice for any application. Our Deutz Diesel Generators offer a wide variety of models to meet any need, ranging from super silent, container silent, to silent models. With noise levels as low as 65 dB(A), our generators provide an exceptionally quiet operation. Our generators are also engineered to run at a constant speed of 1500 rpm for maximum reliability and efficiency. All of our generators come with a 1-2 year warranty and are outfitted with an advanced control system, such as an Automatic Mains Failure (AMF) or Automatic Transfer System (ATS) for easy operation. Whether you’re looking for a diesel powered generator set, electric diesel generators, or any other type of diesel powered generator, Deutz Diesel Generators are sure to provide the reliable and powerful performance you need.
Features:
- Emergency Diesel Generator: Deutz Diesel Generators are available for use as emergency diesel generators, with a frequency of 50Hz and power prime output of 16kW to 600kW.
- Diesel Powered Generator: Deutz Diesel Generators are powered by diesel, with a speed of 1500rpm and a choice of control system, including AMF/ATS/Manual.
- Electric Diesel Generators: Deutz Diesel Generators are electric diesel generators, available in three types: Silent, Super Silent and Container Silent.
Technical Parameters:
| Technical Specification: | ||
| 130kVA Deutz Generator Set Specification | ||
| Genset Model | TG143DE | TG143DES |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 Phase, 4 Wires | |
| Rate Current | 187.6A | |
| Prime Power | 104kW / 130kVA | |
| Standby Power | 114kW / 143kVA | |
| Engine Model | Deutz BF4M1013FC | |
| Alternator Model | Marathon MP-104-4 | |
| Controller | ComAp AMF9 | |
| Weight & Dimensions | ||
| Length (mm) | 2300 | 2900 |
| Width (mm) | 1100 | 1200 |
| Height (mm) | 1600 | 1930 |
| Weight (kgs) | 1350 | 1880 |
| Engine Specification | ||
| Brand | Deutz | |
| Engine Model | BF4M1013FC | |
| Standby power (kw) | 129 | |
| Injection | Indirect | |
| Aspiration | Turbocharged & CAC | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 108 x 130 | |
| Displacement (L) | 4.76 | |
| Cooling | water | |
| Compression Ratio | 18:1 | |
| Engine Oil capacity (L) | 7.4 | |
| Coolant Capacity ( In radiator) | 7.4 | |
| Governor | Electric (EMR) | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 50Hz | |
| 100% Load (L/h) | 32.3 | |
| 75% Load (L/h) | 23.5 | |
| 50% Load (L/h) | 15.7 | |
| 25% Load (L/h) | 8.5 | |
| Alternator Specification | ||
| Brand | Marathon | |
| Model | MP-104-4 | |
| Rate Output (kVA) | 130 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | ComAp | |
| Model | AMF9 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| CANBUS & MPU VERSIONS | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Deutz Diesel Generators are diesel power generator sets that are designed to provide emergency power to an array of applications, ranging from residential to industrial. Their brand name, Deutz Genset, is backed by ISO / CE / SASO / CIQ certification and comes with a minimum order quantity of one set. The generator set is powered by Deutz engines, and offers power prime outputs ranging from 16kW to 600kW at 1500rpm. These diesel power generator sets are sold at a price that is open to negotiation and come with a 1-2 year warranty. The noise level of the generator set is 65dB(A). The generator is packaged in plastic film containers for delivery, which usually takes 15 working days. Payment for the generator set can be done through T/T or L/C. The company can supply up to 350 units per month.
Customization:
Customized Deutz Diesel Generators
- Brand Name: Deutz Genset
- Model Number: TG143DES
- Place of Origin: Fuzhou, China
- Certification: ISO / CE / SASO / CIQ
- Minimum Order Quantity: 1 SET
- Price: Negotiation
- Packaging Details: Plastic film package in container
- Delivery Time: 15 Working Days
- Payment Terms: T/T / L/C
- Supply Ability: 350 Units Per Month
- Power prime Output: 104kW / 130kVA
- Power standby output: 114kW / 143kVA
- Frequency: 50Hz
- Control System: AMF/ATS/Manual
- Noise Level: 65dB(A)
- Engine Brand: Deutz
- Electric Diesel Generators, Diesel Power Generator Set, Industrial Diesel Generator
Support and Services:
Deutz Diesel Generators Technical Support and Service
At Deutz Diesel Generators, we offer comprehensive technical support and service to ensure our customers get the most out of their Deutz product. Our in-house team of experts is available to answer any questions you may have and provide technical assistance with setup and installation.
We also provide diagnostics and repair services to ensure that your Deutz product is operating at peak performance. Our experienced technicians can quickly diagnose and repair any problems you may be having with your generator, and our online support resources are available anytime for self-help.
In addition, Deutz Diesel Generators provides comprehensive preventative maintenance services to maximize the life of your generator. Our preventative maintenance plans include regular checks and inspections to ensure your generator is running at its best. We also offer a variety of spare parts and accessories to keep your generator running smoothly.
For more information about Deutz Diesel Generators technical support and service, please contact us today.
Packing and Shipping:
Packaging and Shipping for Deutz Diesel Generators
Deutz Diesel Generators will be shipped in their original packaging, or in packaging designed to protect the product during transit. All products are tested prior to shipping to ensure they are in working order.
Shipping times may vary depending on the customer's location and the availability of the product. Customers should contact the vendor for more information regarding shipping times and costs.
In the event of any damage caused during shipping, the customer should contact the vendor immediately. The vendor is responsible for providing a replacement or refund for any damaged products.
FAQ:
- Q1: What is the brand of the Deutz Diesel Generators?
- A1: The brand name of the Deutz Diesel Generators is Deutz Genset.
- Q2: What is the model number of the Deutz Diesel Generators?
- A2: The model number of the Deutz Diesel Generators is TG143DES.
- Q3: Where is the place of origin for the Deutz Diesel Generators?
- A3: The place of origin for the Deutz Diesel Generators is Fuzhou, China.
- Q4: What is the minimum order quantity for the Deutz Diesel Generators?
- A4: The minimum order quantity for the Deutz Diesel Generators is 1 SET.
- Q5: What kind of payment terms are accepted for the Deutz Diesel Generators?
- A5: The accepted payment terms for the Deutz Diesel Generators are T/T and L/C.
