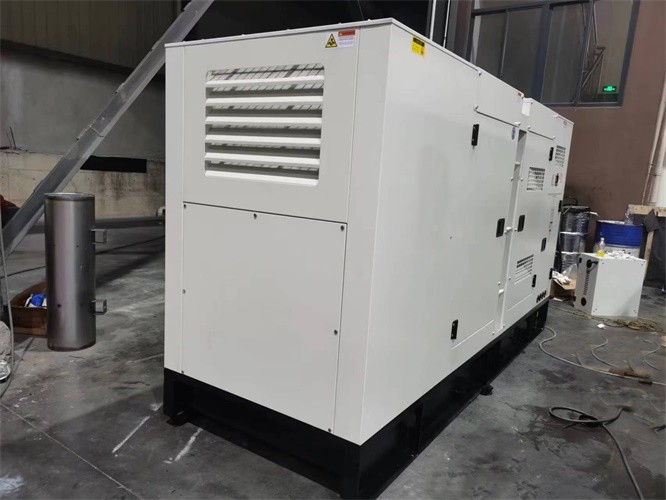

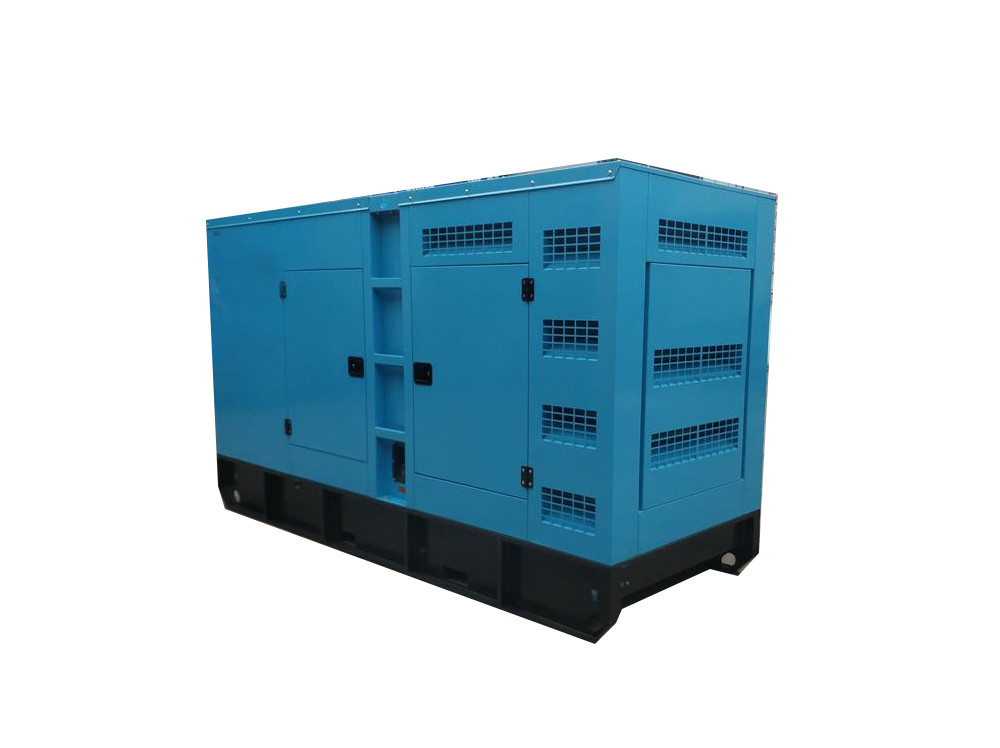

Low Noise 100kVA Continuous Duty Diesel Generator With Auto Transfer Switch ATS
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 50Hz | Genset Type | Silent / Super Silent / Container Silent |
|---|---|---|---|
| Warranty | 1-2 Years | Power Prime Output | 16kW - 600kW |
| Speed | 1500rpm | Engine Brand | Deutz |
| Control System | AMF/ATS/Manual | Noise Level | 65dB(A) |
| Highlight | 100kVA Continuous Duty Diesel Generator,Low Noise Continuous Duty Diesel Generator,600kW low noise diesel generator |
||
Product Description
100kVA continuous duty diesel generator AMF9 AMF/ATS Controller for emergency Power
Product Description:
Deutz Diesel Generators feature industrial-grade power prime outputs ranging from 16kW to 600kW, with engines from the renowned DEUTZ brand. Offering advanced technology, these generators are equipped with state-of-the-art control systems, including AMF/ATS/Manual, providing reliable power for a variety of applications. With noise levels at just 65dB(A), Deutz's diesel generators are also ideal for emergency power solutions. Every Deutz diesel generator set comes with a 1-2 year warranty, ensuring performance and durability for any industrial or emergency power needs.
For customers looking for an industrial or emergency diesel generator, DEUTZ Diesel Generator Set is the perfect choice. DEUTZ's advanced technology, reliable power output, and low noise levels make it the perfect choice for any industrial or emergency power needs.
Features:
- Product Name: Deutz Diesel Generators
- Genset Type: Silent / Super Silent / Container Silent
- Warranty: 1-2 Years
- Noise Level: 65dB(A)
- Speed: 1800rpm
- Power prime Output: 80kW / 100kVA
- Industrial Diesel Generator Sets
- Electric Diesel Generators
Technical Parameters:
| Technical Specification: | ||
| 100kVA Diesel Generator Specification | ||
| Genset Model | TG110DED6 | TG110DESD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Rate Speed | 1800RPM | |
| Voltage | 208/120V | |
| Phase | 3 Phase, 4 or 12 Wires | |
| Rate Current | 277.6A | |
| Prime Power | 80kW / 100kVA | |
| Standby Power | 88kW / 110kVA | |
| Engine Model | Deutz BF4M2012C G2 | |
| Alternator Model | Tecgen TGI274S80 | |
| Controller | ComAp AMF9 | |
| Noise Level | 65 dB(A) @ 7m | |
| Weight & Dimensions | ||
| Length (mm) | 1860 | 2350 |
| Width (mm) | 900 | 1100 |
| Height (mm) | 1360 | 1590 |
| Weight (kgs) | 1050 | 1650 |
| Engine Specifications | ||
| Brand | Deutz | |
| Engine Model | BF4M2012C G2 | |
| Standby power | 108kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged & CAC | |
| No. of cylinders | 4 | |
| Speed | 1800RPM | |
| Bore of Stroke (mm) | 101 x 126 | |
| Displacement (L) | 4.04 | |
| Cooling | Water Cooled | |
| Compression Ratio | 19:1 | |
| Engine Oil capacity (L) | 6 | |
| Coolant Capacity ( In radiator) | 6 | |
| Governor | Electric (DDE) | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 60Hz | |
| 100% Load (L/h) | 24.4 | |
| 75% Load (L/h) | 18.2 | |
| 50% Load (L/h) | 12.4 | |
| 25% Load (L/h) | 6.9 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI274S80 | |
| Rate Output | 100kVA | |
| Speed | 1800RPM | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | ComAp | |
| Model | AMF9 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| CANBUS & MPU VERSION | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Deutz Diesel Generators, with brand name Deutz Genset, model number TG110DESD6, is produced in Fuzhou, China, with ISO / CE / SASO / CIQ certification. The minimum order quantity is 1 SET, and the price is negotiable. The packaging for Deutz Diesel Generators is plastic film package in container. Delivery time is 15 working days. Payment terms are T/T / L/C. The supply ability is 350 units per month. The power prime output is 16kW - 600kW. Deutz Diesel Generators are available in three types, silent, super silent, and container silent, with frequency of 60Hz and speed of 1800rpm. There is a control system of AMF/ATS/Manual. Deutz Diesel Generators are of high quality, reliable performance, and long service life. It is widely used in various industries for its general diesel generator, high quality and low price.
Customization:
Deutz Diesel Generators
- Brand Name: Deutz Genset
- Model Number: TG110DESD6
- Place of Origin: Fuzhou, China
- Certification: ISO / CE / SASO / CIQ
- Minimum Order Quantity: 1 SET
- Price: Negotiation
- Packaging Details: Plastic film package in container
- Delivery Time: 15 Working Days
- Payment Terms: T/T / L/C
- Supply Ability: 350 Units Per Month
- Power prime Output: 80kW / 100kVA
- Power standby Output: 88kW / 110kVA
- Noise Level: 65dB(A)
- Engine Brand: Deutz
- Genset Type: Silent / Super Silent / Container Silent
- Speed: 1800rpm
Our Deutz diesel generators are perfect for those looking for a reliable diesel engine generator with high-performance and low running costs. We offer diesel powered generators that are designed for maximum efficiency and durability, making them ideal for powering your home, business or industrial applications. Our Deutz diesel genset are equipped with sound-attenuated enclosures and are available in a variety of configurations, from 16kW to 600kW.
Support and Services:
Deutz Diesel Generators Technical Support and Services
At Deutz Diesel Generators, we offer excellent technical support and services to our customers.
Technical Support
Our technical support team is available 24/7 to answer any questions you may have about our diesel generators. We provide remote support and on-site assistance for all of our products. Our team of experienced engineers is well-versed in the latest diesel generator technologies and can provide you with the necessary advice and guidance.
Maintenance and Repair
Our team of technicians is always on hand to help with any maintenance and repair needs. We have all the necessary tools and equipment to ensure that your generator is running smoothly and efficiently. We also offer scheduled maintenance services to keep your generator running at its best.
Parts and Accessories
We have a wide range of genuine Deutz parts and accessories in stock. Our team can help you find the right part for your generator and ensure that it is installed correctly. We also offer an extensive selection of aftermarket parts and accessories.
Packing and Shipping:
Packaging and Shipping of Deutz Diesel Generators
Deutz Diesel Generators are securely packaged in sturdy boxes to protect them from any potential damage during shipping. Additionally, we use pallets and shrink-wrapping to ensure that the boxes remain intact during transport. We also offer customized packaging solutions for bulk orders.
Our shipping services are tailored to meet the needs of our customers, and we offer a variety of shipping methods including air, land, and sea freight. We guarantee that all orders will be delivered on time and in perfect condition.
FAQ:
Common Questions about Deutz Genset
Q1: What is the Brand Name of Deutz Genset?
A1: The Brand Name of Deutz Genset is Deutz Genset.
Q2: What is the Model Number of Deutz Genset?
A2: The Model Number of Deutz Genset is TG110DESD6.
Q3: Where is the Place of Origin of Deutz Genset?
A3: The Place of Origin of Deutz Genset is Fuzhou, China.
Q4: What are the Certification of Deutz Genset?
A4: The Certification of Deutz Genset is ISO / CE / SASO / CIQ.
Q5: What is the Minimum Order Quantity of Deutz Genset?
A5: The Minimum Order Quantity of Deutz Genset is 1 SET.
