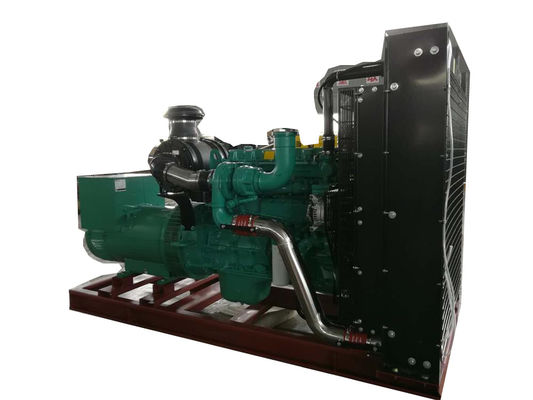

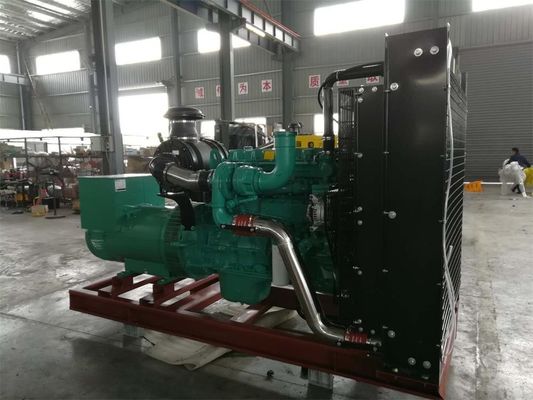

Standby 480kVA CKD Type Diesel Engine Generator Set Driven By DCEC Diesel Engine 1500rpm
| Place of Origin | China |
|---|---|
| Brand Name | Tecgen CKD Genset |
| Certification | CE/SONCAP/SASO/SGS |
| Model Number | TG480C |
| Minimum Order Quantity | 1 Uint |
| Price | Negotiation |
| Packaging Details | Plywood case package or By Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fuel Type | Diesel | Voltage | 220-440V |
|---|---|---|---|
| Warranty | 1500 Running Hours | Speed | 1500/1800rpm |
| Cooling System | Water Cooled | Power Range | 7kW - 2400KW |
| Product Name | CKD Type Genset | Frequency | 50/60Hz |
| Highlight | 480kVA diesel engine generator set,CKD diesel engine generator set,2400KW diesel generator |
||
Product Description
Standby 480kVA CKD type generator set driven by DCEC diesel engine 1500rpm
Product Description:
Chinese CKD Type Diesel Generators are designed for reliable and efficient performance, and are widely used in a variety of applications. Available in power ranges from 7kW to 2400KW, these generators are able to operate at a voltage range of 220-440V and a frequency of 50/60Hz. The generators are water cooled and come with a 1500 running hours warranty, making them an ideal choice for a variety of applications. With their reliable performance and long-term quality assurance, Chinese Diesel Generators have come to be trusted by customers around the world.
Features:
- Product Name: China Made CKD Genset
- Power Range: 7kW - 2400KW
- Voltage: 220-440V
- Fuel Type: Diesel
- Speed: 1500/1800rpm
- China CKD DG Genset: SDEC Diesel Generator, Weichai Generator, Yuchai Generator, Cummins Genset
Technical Parameters:
| Technical Specification: | ||
| 350kVA CKD Type Genset Specification | ||
| Genset Model | TG480C | TG480CS |
| CKD Type | Silent | |
| Frequency | 50Hz | |
| Voltage | 380 / 220V | |
| Phase | 3 | |
| Rate Current | 665.5A | |
| Prime Power | 350kW / 438kVA | |
| Standby Power | 385kW / 480kVA | |
| Engine Model | 6ZTAA13-G2 | |
| Alternator Model | TGI314S350 | |
| Controller | HGM6120N | |
| Weight & Dimensions | ||
| Length (mm) | 3400 | 4210 |
| width (mm) | 1270 | 1730 |
| Height (mm) | 2100 | 2230 |
| Weight (kgs) | 3970 | 5200 |
| Engine Specification | ||
| Brand | Cummins | |
| Engine Model | 6ZTAA13-G2 | |
| Rate / Standby power (kW) | 390 / 415 | |
| Injection | Indirect | |
| Aspiration | Turbocharged and Air-air Intercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 130 x 163 | |
| Displacement (L) | 13 | |
| Cooling | water | |
| Compression Ratio | 17:1 | |
| Engine Oil capacity (L) | 23.1 | |
| Coolant Capacity ( In radiator) | 23.1 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 87.1 | |
| 75% Load (L/h) | 63.6 | |
| 50% Load (L/h) | 42.2 | |
| 25% Load (L/h) | 23 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI314S350 | |
| Rate Output (kW) | 350 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Smartgen | |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Tecgen China CKD Genset - DCEC Cummins Diesel Generator
Tecgen China Engine Genset is an excellent choice for various industrial applications. Our CKD diesel generator is powered by Chinese diesel engine, has a frequency of 50/60Hz, and is available in power range of 7kW to 2400kW. It has a voltage range of 220-440V and comes with a 1500 running hours warranty. It is also certified by CE/SONCAP/SASO/SGS. Our diesel engine generator set is offered at a negotiable price, and the minimum order quantity is 1 unit. It is packed in Plywood case package or By Foam and PE film package, and the delivery time is 15 working days.
Customization:
Customized Chinese Diesel Generators
Are you looking for a reliable and cost-effective diesel generator? Tecgen China Engine Genset offers the perfect solution for you. Our customized Chinese diesel generators are powered by DCEC Cummins diesel engines, and are silent, durable and efficient. Our generators are available from 1 unit, and come with CE/SONCAP/SASO/SGS certification. What's more, these generators are competitively priced and come with a 1500 running hours warranty.
Model Number: TG480C
Place of Origin: China
Certification: CE/SONCAP/SASO/SGS
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Plywood case package or By Foam and PE film package
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C
Supply Ability: 400 Units Per Month
Frequency: 50/60Hz
Fuel Type: Diesel
Product Name: China Made Genset
Warranty: 1500 Running Hours
Voltage: 220-440V
Tecgen China Engine Genset is proud to offer you high-quality, silent diesel generators that are made in China. Our generators are designed for maximum efficiency, and offer the perfect solution for your business needs. Whether you are looking for a single unit or multiple units, we have the right generator for you.
If you're interested in our customized Chinese diesel generators, please contact us today for more information and pricing. We look forward to hearing from you.
Packing and Shipping:
Packaging and Shipping for Chinese Diesel Generators
Our Chinese diesel generators are securely packaged using industrial-grade materials and methods to ensure that they are not damaged during transit. Our shipping partners are reliable and have a track record of delivering our products on time.
We use both standard and customized packaging methods depending upon the size and weight of the product. Our standard packaging includes cardboard boxes, foam and plastic packaging, and wooden frames. For custom orders, we will work with you to create the packaging solution that best fits your requirements.
We also offer both air and sea shipping options. Our air shipping partners are reliable and have a track record of delivering our products on time. Sea shipping is a more cost-effective option, but it takes longer to deliver the products.
FAQ:
Q: What is the Brand Name of the Chinese Diesel Generators?
A: The Brand Name of the Chinese Diesel Generators is Tecgen China Engine Genset.
Q: What is the Model Number of the Chinese Diesel Generators?
A: The Model Number of the Chinese Diesel Generators is TG480C.
Q: Where is the Chinese Diesel Generators manufactured?
A: The Chinese Diesel Generators is manufactured in China.
Q: What certifications do Chinese Diesel Generators have?
A: The Chinese Diesel Generators have CE/SONCAP/SASO/SGS certifications.
Q: What is the Minimum Order Quantity for the Chinese Diesel Generators?
A: The Minimum Order Quantity for the Chinese Diesel Generators is 1 Unit.
