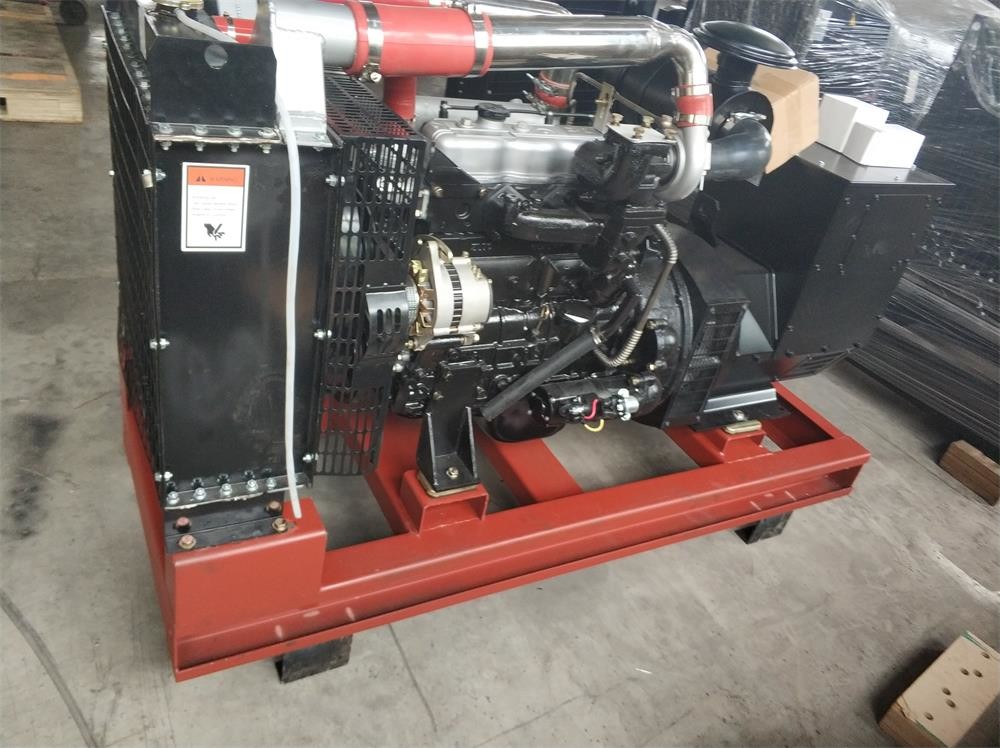

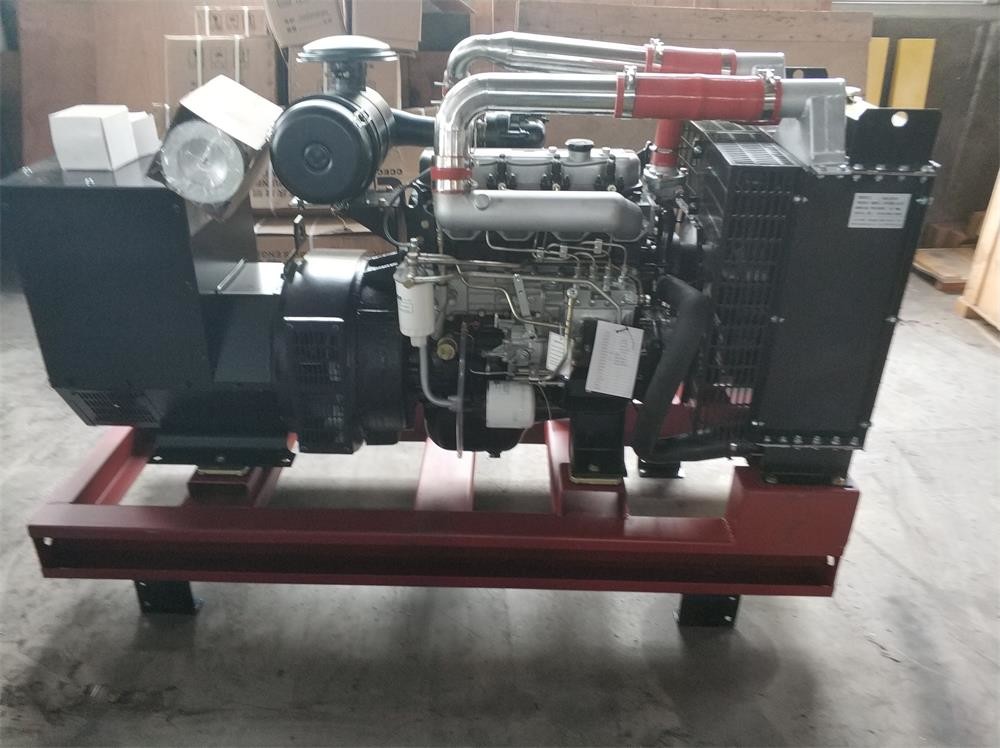

30kVA ISUZU Diesel Generator
| Place of Origin | China |
|---|---|
| Brand Name | Tecgen CKD Genset |
| Certification | CE/SONCAP/SASO/SGS |
| Model Number | TGTG30AI |
| Minimum Order Quantity | 1 Uint |
| Price | Negotiation |
| Packaging Details | Plywood case package or By Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Speed | 1500/1800rpm | Frequency | 50/60Hz |
|---|---|---|---|
| Product Name | CKD Type Genset | Fuel Type | Diesel |
| Voltage | 220-440V | Cooling System | Water Cooled |
| Power Range | 7kW - 150KW | Warranty | 1500 Running Hours |
| Highlight | 30kVA isuzu diesel generator,50Hz isuzu diesel generator,1800rpm ckd generator |
||
Product Description
CKD Type Standby 30kVA ISUZU diesel generator 50Hz generator CKD Type for emergency use
Product Description:
China Made CKD Genset offers a wide range of CKD diesel generator sets ranging from 7kW to 150KW, powered by ISUZU engines from China. The genset is water-cooled and is backed by a 1500 running hours warranty. It also has adjustable speed ranging from 1500 to 1800rpm, providing great flexibility for different applications. With China Engine Genset, you can be sure of reliable and cost-effective power solutions for any specific needs.
Features:
- Product Name: CKD TYPE Genset
- Power Range: 7kW - 2400KW
- Warranty: 1500 Running Hours
- Fuel Type: Diesel
- Voltage: 220-440V
- Keywords: China DG Genset, CKD Diesel Generator, China DG Genset, CKD China Diesel Generator
Technical Parameters:
| Technical Specification: | |
| ISUZU 27kVA CKD Type Diesel Generator Specification | |
| Genset Model | TG30AI |
| CKD Type | |
| Frequency | 50Hz |
| Voltage | 415/240V |
| Phase | 3 |
| Rate Current | 37.6A |
| Prime Power | 22kW / 27kVA |
| Standby Power | 24kW / 30kVA |
| Engine Model | Aoling ISUZU 4JB1T |
| Alternator Model | TGI184S22 |
| Controller | Mebay DC52D |
| Weight & Dimensions | |
| Length (mm) | 1100 |
| Width (mm) | 650 |
| Height (mm) | 600 |
| Weight (kgs) | 650 |
| Engine Specification | |
| Brand | Aoling ISUZU |
| Engine Model | 4JB1T |
| Prime power (kw) | 28 |
| Injection | Indirect |
| Aspiration | Naturally Aspirated |
| No. of cylinders | 4 |
| Bore of Stroke (mm) | 93 x 102 |
| Displacement (L) | 2.7 |
| Cooling | Water Cooled |
| Compression Ratio | 17.4:1 |
| Governor | Mech |
| Air Filter | Dry Element |
| Fuel consumption | @ 50Hz |
| 100% Load (L/h) | 6 |
| 75% Load (L/h) | 4.5 |
| 50% Load (L/h) | 3.0 |
| 25% Load (L/h) | 1.5 |
| Alternator Specification | |
| Brand | Tecgen |
| Model | TGI184S22 |
| Rate Output | 22kW |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System | |
| Brand | Mebay |
| Model | DC52D |
| Functions | Control with AMF module |
| Static with auto. battery charger | |
| Emergency stop push button | |
| ATS Connection | |
| OPTIONAL EQUIPMENTS | |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Fuel-water separator, Silent Type, Super Silent Type, Trailer & Silent Type, 3000Hours Spare Parts | |
Applications:
The Tecgen CKD China Engine Genset from China is a reliable power source for many different applications. It is perfect for use in commercial, industrial, and residential settings. It is powered by ISUZU diesel engine and features a power range between 7kW and 2400KW. The Tecgen China Engine Genset also has a fuel type of diesel and can operate at a frequency of 50/60Hz. It has a voltage of 220-440V and is also equipped with a silent generator set for quiet operation.
The Tecgen China Engine Genset is certified by CE/SONCAP/SASO/SGS and is available at a minimum order quantity of 1 unit. It is also offered at a competitive price and comes with Plywood case package or By Foam and PE film package. Delivery time is 15 working days and payment can be made through T/T or L/C. With a supply ability of 400 units per month, the Tecgen China Engine Genset is the perfect power solution for any application.
Customization:
Custom China Diesel Generators - Tecgen China Engine Genset
Are you looking for a reliable China diesel generator? Look no further than Tecgen China Engine Genset. We are the leading China DG Genset factory in the business, offering a wide variety of ISUZU diesel generator and China DG Genset. Our products are certified with CE/SONCAP/SASO/SGS and come with a minimum order quantity of 1 unit. Our prices are highly competitive and negotiable. Plus, all our products come with a 1500 running hours warranty. Whether you need 220-440V voltage or 1500/1800rpm speed, we have the perfect diesel generator for you.
- Brand Name: Tecgen CKD Genset
- Model Number: TG30AI
- Place of Origin: China
- Certification: CE/SONCAP/SASO/SGS
- Minimum Order Quantity: 1 Uint
- Price: Negotiation
- Packaging Details: Plywood case package or By Foam and PE film package
- Delivery Time: 15 Working Days
- Payment Terms: T/T, L/C
- Supply Ability: 400 Units Per Month
- Product Name: China Made CKD Genset
- Fuel Type: Diesel
- Warranty: 1500 Running Hours
- Voltage: 220-440V
- Speed: 1500/1800rpm
Packing and Shipping:
Packaging and Shipping of Chinese Diesel Generators
Chinese Diesel Generators are packaged and shipped in a way that provides maximum protection against damage during handling and transit. Depending on the size and weight of the generator, it is usually packed in a robust wooden crate or a cardboard box and secured with bubble wrap and other cushioning materials. The generator is then secured to the pallet with strapping and shrink wrap. We also ensure that the pallet is properly labeled with the delivery address and contact information.
FAQ:
Q1: What brand is the diesel generator?
A1: The diesel generator is Tecgen China Engine Genset.
Q2: What is the model of the diesel generator?
A2: The model of the diesel generator is TG30AI.
Q3: What certifications does the diesel generator have?
A3: The diesel generator has CE/SONCAP/SASO/SGS certifications.
Q4: What is the minimum order quantity?
A4: The minimum order quantity is 1 unit.
Q5: What is the price of the diesel generator?
A5: The price of the diesel generator is negotiable.
