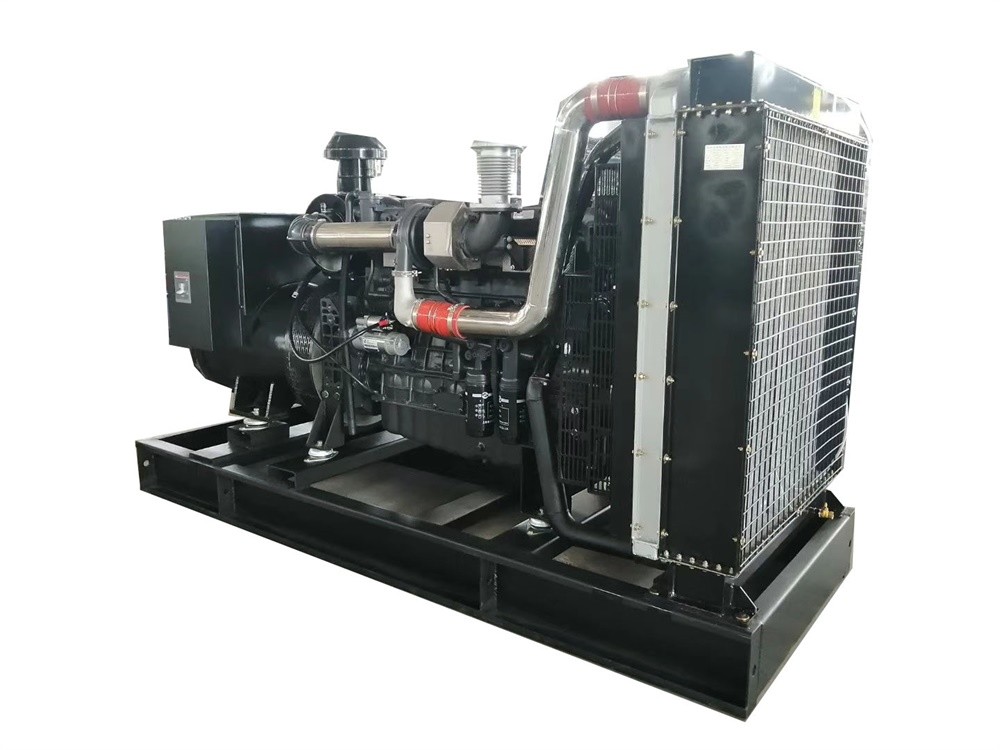

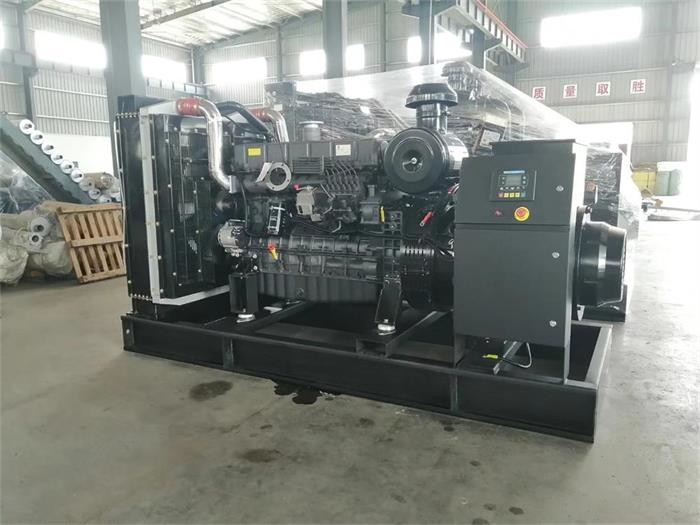

1500 / 1800rpm SDEC Diesel Generator
| Place of Origin | China |
|---|---|
| Brand Name | Tecgen China Engine Genset |
| Certification | CE/SONCAP/SASO/SGS |
| Model Number | TGTG385SD |
| Minimum Order Quantity | 1 Uint |
| Price | Negotiation |
| Packaging Details | Plywood case package or By Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cooling System | Water Cooled | Warranty | 1500 Running Hours |
|---|---|---|---|
| Frequency | 50/60Hz | Product Name | China Made Genset |
| Speed | 1500/1800rpm | Fuel Type | Diesel |
| Power Standby | 308kW / 385kVA | Voltage | 220-440V |
| Highlight | 1800rpm sdec diesel generator,1500rpm sdec diesel generator,60Hz sdec generator |
||
Product Description
Dependable SDEC Diesel Generator Power Range 16kW - 800kW Speed 1500/1800rpm
Product Description:
Chinese Diesel Generators are diesel engine generator sets produced in China. It has a speed of 1500/1800rpm, voltage of 220-440V, and frequency of 50/60Hz. The cooling system is water cooled. This diesel generating set offers reliable and powerful performance and is perfect for various applications. It is designed and built to meet the highest quality standards and is an ideal choice for those looking for a China-made genset. With its superior design, advanced technology, and reliable components, the Chinese Diesel Generator is the perfect choice for any application. Whether you need a generator for residential, commercial, or industrial applications, the Chinese Diesel Generator is the perfect choice.
Features:
- China Made Genset
- Silent Diesel Generator
- Silent Generator Set
- SDEC Diesel Generator
- Water Cooled Cooling System
- Voltage Range: 220-440V
- Power Range: 16kW - 800KW
- Fuel Type: Diesel
Technical Parameters:
| Technical Specification: | ||
| Standby 385kVA Generator Set Specification | ||
| Genset Model | TG385SD | TG385SDS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 505.2A | |
| Prime Power | 280kW / 350kVA | |
| Standby Power | 308kW / 385kVA | |
| Engine Model | SC12E460D2 | |
| Alternator Model | TGI314S280 | |
| Controller | ComAP IL-AMF 25 | |
| Weight & Dimensions | ||
| Length (mm) | 3000 | 3810 |
| width (mm) | 1320 | 1630 |
| Height (mm) | 1700 | 2130 |
| Weight (kgs) | 2940 | 3700 |
| Engine Specification | ||
| Brand | SDEC | |
| Engine Model | SC12E460D2 | |
| Prime power | 338kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged and Aftercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 128 x 153 | |
| Displacement (L) | 11.8 | |
| Cooling | water | |
| Compression Ratio | 14:1 | |
| Engine Oil capacity (L) | 20.8 | |
| Coolant Capacity ( In radiator) | 20.8 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 75.3 | |
| 75% Load (L/h) | 57.5 | |
| 50% Load (L/h) | 39.9 | |
| 25% Load (L/h) | 22.2 | |
| Alternator Specification | ||
| Brand | TECGEN POWER | |
| Model | TGI314S280 | |
| Rate Output | 350kVA | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | ComAp | |
| Model | IL-AMF 25 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger, overcurrent | ||
| Emergency stop push button | ||
| RS232, CAN | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
SDEC Diesel Generators are a great choice when it comes to reliable and efficient power generation. Tecgen China Engine Genset is a leading brand in the industry, offering a wide range of diesel generators with model number TG385SD. These generators come with certification from CE/SONCAP/SASO/SGS, and they require a minimum order quantity of one unit. Prices are negotiable and the packaging details are either plywood case package or by foam and PE film package, with a delivery time of 15 working days. Payment terms are T/T or L/C and the supply ability is 400 units per month. The diesel generators use diesel as fuel type, with 50/60Hz frequency and water-cooled cooling system. The power range is from 16kW to 800KW, and the product name is China Made Genset.
Chinese Diesel Generators are widely used for both commercial and residential applications. They are used to provide reliable and continuous power for hospitals, factories, businesses, homes, and other places. They are designed to work even in the harshest environment and provide reliable power for a long time. The Tecgen China SDEC Engine Genset Diesel Generating Set is built to provide a reliable source of power, with a low cost of ownership and maintenance. The generators are highly efficient and are designed to meet the highest safety standards.
Tecgen China Engine Genset Diesel Generating Set is a great choice for anyone looking for an efficient and reliable power source. It offers a competitive price, and its low cost of ownership and maintenance makes it an ideal choice for any application. It is also certified with CE/SONCAP/SASO/SGS, and its diesel fuel type makes it an ideal choice for many applications.
Customization:
Chinese Diesel Generators - Tecgen China Engine Genset (TG385SD)
Tecgen China Engine Genset (TG385SD) provides reliable and efficient Chinese Diesel Generators, featuring SDEC Diesel Generator, Silent Generator Set, FAWDE Diesel Generator. All of our generators are certified with CE/SONCAP/SASO/SGS. With a minimum order quantity of 1 unit and competitive pricing, our Chinese Diesel Generators are available for delivery within 15 working days. Payment terms are T/T or L/C, and we can supply up to 400 units per month. Our Diesel Generators feature water cooling system, 1500/1800rpm speed, diesel fuel type, 50/60Hz frequency, and 1500 running hours warranty. For packaging, we offer plywood case package or By Foam and PE film package.
Packing and Shipping:
Packaging and Shipping of Chinese Diesel Generators
Chinese diesel generators are generally delivered within a steel framed crate, which is then wrapped in stretch film for added protection during transit. The generator is secured to the crate frame with heavy duty straps and the frame is then bolted to the pallet base. The pallet base is also strapped and stretch wrapped for extra protection.
When transporting the generator from the factory to the destination, it will be placed in a 20ft or 40ft shipping container depending on the size of the generator. If the generator is too large and cannot fit in a shipping container, it will be transported on a flatbed truck.
FAQ:
- Q: What is the Brand Name of the Generator?
- A: The Brand Name of the Generator is Tecgen China Engine Genset.
- Q: What is the Model Number of the Generator?
- A: The Model Number of the Generator is TG385SD.
- Q: Where is the Generator manufactured?
- A: The Generator is manufactured in China.
- Q: What certifications does the Generator have?
- A: The Generator has CE/SONCAP/SASO/SGS certifications.
- Q: How many Units can be supplied?
- A: We can supply up to 400 Units per Month.
