20kVA CKD Type Chinese Diesel Generators , 16kW Isuzu Diesel Generator
| Place of Origin | China |
|---|---|
| Brand Name | Tecgen China Engine Genset |
| Certification | CE/SONCAP/SASO/SGS |
| Model Number | TG22AI |
| Minimum Order Quantity | 1 Uint |
| Price | Negotiation |
| Packaging Details | Plywood case package or By Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 50/60Hz | Voltage | 220-440V |
|---|---|---|---|
| Cooling System | Water Cooled | Product Name | CKD Genset |
| Fuel Type | Diesel | Speed | 1500/1800rpm |
| Power Range | 7kW - 150KW | Warranty | 1500 Running Hours |
| Highlight | CKD Chinese Diesel Generators,20kVA Chinese Diesel Generators,16kW isuzu diesel generator |
||
Product Description

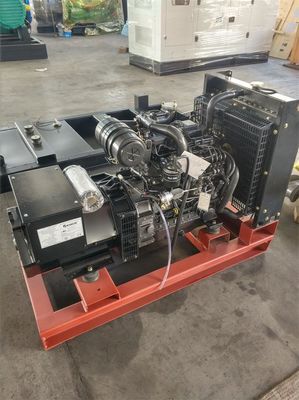

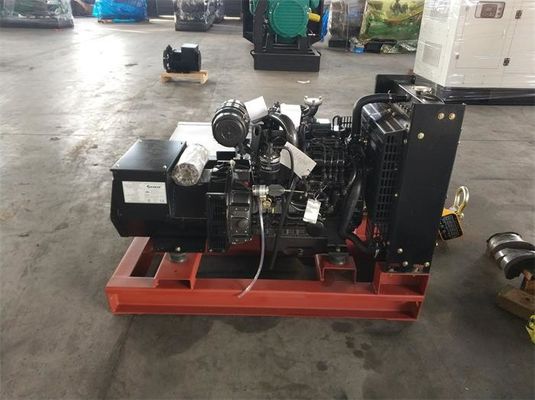

20kVA CKD type isuzu diesel generator 16kW CKD type genset for Manufacturing Facilities
Product Description:
CKD type Diesel Generating Set (DG Genset), made and manufactured by ISUZU, is a reliable and efficient source of power. It is available in a power range of 7kW to 150KW and runs at a speed of 1500/1800rpm. Fueled by diesel, it is designed to meet a variety of voltage needs - from 220 to 440V. This China made Genset is widely used in many industries, including commercial, industrial, agricultural, and residential applications, and is a trusted source of energy for many customers. It is known for its superior performance, reliability, and cost-effectiveness.
For more than a decade, ISUZU has been producing quality diesel generators that are reliable and cost-effective. With an extensive range of power outputs, a variety of voltage options, and a commitment to excellence, our China Made CKD Genset is the ideal choice for any customer. Our goal is to provide a superior product that meets the needs of our customers and exceeds their expectations.
Our Chinese CKD Diesel Generators are known for their superior performance, reliability, and cost-effectiveness. With a power range of 7kW to 150KW and a speed of 1500/1800rpm, our generators can meet the needs of any customer. Our generators are fueled by diesel, providing a reliable and efficient source of power. In addition, our generators come in a variety of voltage options, allowing customers to choose the voltage that is best suited to their needs.
Choose ISUZU’s Chinese CKD Diesel Generators and experience the power and reliability of our top-of-the-line, cost-effective product. With our China Made Genset, you can be sure that you are getting a generator that will meet your needs and provide you with a reliable source of energy.
Features:
- Product Name: China Made Genset
- Fuel Type: Diesel
- Voltage: 220-440V
- Frequency: 50/60Hz
- Cooling System: Water Cooled
- High Quality ISUZU Diesel Generator
- Reliable CKD Diesel Generator
Technical Parameters:
| Technical Specification: | |
| ISUZU 16kW CKD Diesel Generator Specification | |
| Genset Model | TG22AI |
| CKD Type | |
| Frequency | 50Hz |
| Voltage | 415/240V |
| Phase | 3 |
| Rate Current | 27.8A |
| Prime Power | 16kW / 20kVA |
| Standby Power | 18kW / 22kVA |
| Engine Model | Aoling ISUZU 4JA1-F1 |
| Alternator Model | TGI184S16 |
| Controller | Mebay DC52D |
| Weight & Dimensions | |
| Length (mm) | 1100 |
| Width (mm) | 650 |
| Height (mm) | 600 |
| Weight (kgs) | 500 |
| Engine Specification | |
| Brand | Aoling ISUZU |
| Engine Model | 4JA1-F1 |
| Prime power (kw) | 21 |
| Injection | Indirect |
| Aspiration | Naturally Aspirated |
| No. of cylinders | 4 |
| Bore of Stroke (mm) | 90 x 102 |
| Displacement (L) | 2.585 |
| Cooling | Water Cooled |
| Compression Ratio | 17:1 |
| Governor | Mech |
| Air Filter | Dry Element |
| Fuel consumption | @ 50Hz |
| 100% Load (L/h) | 4.38 |
| 75% Load (L/h) | 3.3 |
| 50% Load (L/h) | 2.2 |
| 25% Load (L/h) | 1.1 |
| Alternator Specification | |
| Brand | Tecgen |
| Model | TGI184S16 |
| Rate Output | 16kW |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System | |
| Brand | Mebay |
| Model | DC52D |
| Functions | Control with AMF module |
| Static with auto. battery charger | |
| Emergency stop push button | |
| ATS Connection | |
| OPTIONAL EQUIPMENTS | |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Fuel-water separator, Silent Type, Super Silent Type, Trailer & Silent Type, 3000Hours Spare Parts | |
Applications:
CKD Diesel Generators are a great choice for a variety of uses and applications. ISUZU Diesel Generator, Diesel Engine Generator Set, and China DG Genset are the quality brand name Tecgen China Engine Genset within the industry for their superior performance and reliability. The TG22AI is certified with CE/SONCAP/SASO/SGS and has a minimum order quantity of one unit. The price is negotiable and the packaging is either plywood case package or by foam and PE film package. Delivery time is typically within 15 working days with payment terms of T/T or L/C. Tecgen China Engine Genset is capable of delivering 400 units per month with a warranty of 1500 running hours. The frequency is 50/60Hz and the fuel type is diesel. The speed is 1500/1800rpm and the product name is China Made CKD Genset.
Customization:
Welcome to Tecgen China Engine Genset, the premier provider of ISUZU CKD Diesel Generator, CKD Diesel Generating Set ,CKD Diesel Engine Generator Set. We offer a wide range of CKD Diesel Generators with Model Number TG, from 7kW to 2400KW power range, 220-440V voltage, 1500/1800rpm speed and water cooled cooling system. All our diesel generators are CE/SONCAP/SASO/SGS certified and have a minimum order quantity of 1 unit. Packaging is available in Plywood case package or By Foam and PE film package. We offer competitive prices and fast delivery with 15 working days. Payment terms are T/T, L/C and we can provide 400 units per month.
Packing and Shipping:
Packaging and Shipping of CKD Diesel Generators
Chinese CKD Diesel Generators are typically packaged in wooden crates, boxes, or in plastic wrapping to protect them from damage during shipping. They are shipped via sea freight or air freight, depending on customer requirements. The delivery time depends on the destination, and the shipping cost is calculated based on the size and weight of the cargo.
FAQ:
- Q: What is the brand name of the Chinese Diesel Generators?
- A: The brand name of the Chinese Diesel Generators is Tecgen CKD China Engine Genset.
- Q: What is the model number of the Chinese Diesel Generators?
- A: The model number of the Chinese Diesel Generators is TG22AI.
- Q: Where are the Chinese Diesel Generators made?
- A: The Chinese Diesel Generators are made in China.
- Q: What certifications are the Chinese Diesel Generators?
- A: The Chinese Diesel Generators are certified with CE/SONCAP/SASO/SGS.
- Q: What is the minimum order quantity of the Chinese Diesel Generators?
- A: The minimum order quantity of the Chinese Diesel Generators is 1 Uint.
