AC Brushless Synchronous Alternator 100% Copper Wire 1500RPM 1800RPM Single Double Bearing

  • AC Brushless Synchronous Alternator 100% Copper Wire 1500RPM 1800RPM Single Double Bearing
  • AC Brushless Synchronous Alternator 100% Copper Wire 1500RPM 1800RPM Single Double Bearing
  • AC Brushless Synchronous Alternator 100% Copper Wire 1500RPM 1800RPM Single Double Bearing
Place of Origin China
Brand Name TECGEN Brushless Alternator
Certification ISO / CE / SASO / SONCAP
Model Number TGI
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Standard export package
Delivery Time 10 Working Days
Payment Terms T/T / L/C
Supply Ability 2000 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency 50Hz / 60Hz Bearing Single/Double Bearing
Speed 1500RPM / 1800RPM Product TECGEN Brushless Alternator
Phase Single / Three Phase Winding 100% Copper
Type Brushless
Highlight

AC brushless synchronous alternator

,

brushless synchronous alternator 1500RPM

,

1800RPM ac synchronous alternator
Leave a Message
Product Description

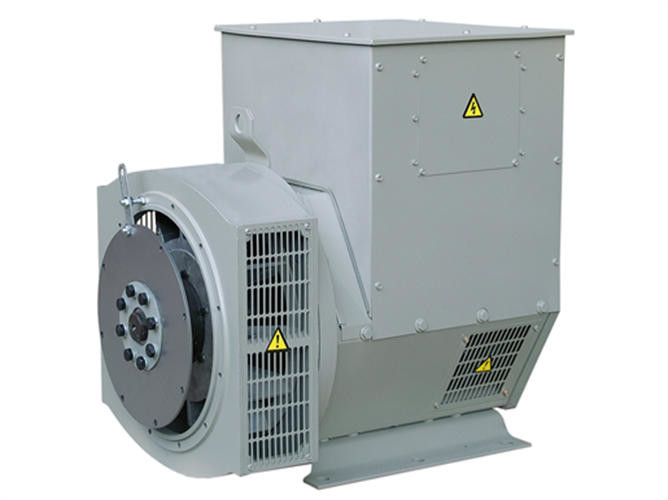

AC Brushless Synchronous Alternator 100% Copper Wire 1500RPM / 1800RPM Single/Double Bearing

Product Description:

TECGEN Brushless Alternator - Other Generators
TECGEN Other Generators is a 100% copper alternator that provides a reliable, stable and efficient power solution for different applications. It is available in single bearing and double bearing, single phase and three phase, with frequency of 50Hz and 60Hz. The model number is TGI. This alternator is designed to deliver a high quality, reliable and efficient performance, and is ideal for applications such as high voltage equipment, industrial machinery and other power requirements. It is also equipped with advanced features such as overload protection, temperature protection, overvoltage protection, etc. to ensure complete safety and reliability. The TECGEN Brushless Alternator will be the perfect choice for applications requiring reliable, efficient and cost-effective power solutions.


Features:

  • Product Name: Other Generators
  • Frequency: 50Hz / 60Hz
  • Type: Brushless
  • Speed: 1500RPM / 1800RPM
  • Winding: 100% Copper
  • Product: TECGEN Brushless Alternator
  • Keywords: 100% AC Alternator, AC Brush Alternator, 100% AC Alternator


Technical Parameters:

Alternator Rate power: 6.5-1000KVA



Model Prime Output (1500rpm/50Hz) 400V Prime Output (1800rpm/60Hz) 440V
KVA KW KVA KW
TGI164A 8.1 6.5 10.2 8.2
TGI164B 11 8.8 13.8 11
TGI164C 13.5 10.8 16.9 13.5
TGI164D 16 12.8 20 16
TGI184E 22.5 18 28.8 23
TGI184F 27.5 22 34.4 27.5
TGI184G 31.3 24 37.5 30
TGI184H 37.5 30 46.9 37.5
TGI184J 40 32 50 40
TGI224C 42.5 34 52.5 42
TGI224D 50 40 62.5 50
TGI224E 60 48 70 56
TGI224F 72.5 58 87.5 70
TGI224G 85 68 97.5 78
TGI274C 100 80 117.5 94
TGI274D 120 96 137.5 110
TGI274E 140 112 167.5 134
TGI274F 160 128 190 152
TGI274G 180 144 218.5 174.8
TGI274H 200 160 245 196
TGI274J 230 184 281 224.8
TGI274K 250 200 299 239.2
TGI314C 250 200 294 235
TGI314D 295 236 350 280
TGI314E 325 260 394 315
TGI314F 380 304 456 365
TGI354C 450 360 550 440
TGI354D 500 400 594 475
TGI354E 600 480 713 570
TGI354F 670 536 775 620

Applications:

The TECGEN Brushless Alternator is the perfect solution for any power generation needs. With a 100% Copper Winding, Single or Three Phase, 50Hz / 60Hz, 1500RPM / 1800RPM, it is ideal for any off-grid, industrial, or commercial application. Built with ISO / CE / SASO / SONCAP certified components, it is a reliable and efficient source of power. With a Minimum Order Quantity of 1 SET and Price Negotiation, it is an affordable and cost-efficient solution. All orders come with Standard Export Packaging and Delivery Time of 10 Working Days. Payment is accepted via T/T / L/C and with a Supply Ability of 2000 Units Per Month, you can rest assured that you will have the power you need in a timely manner. Trust the TECGEN Brushless Alternator for your power needs!





AC Brushless Synchronous Alternator 100% Copper Wire 1500RPM 1800RPM Single Double Bearing 0

Support and Services:

Technical Support and Services for Other Generators

We offer technical support and services for Other Generators to ensure that our customers receive the highest quality products and services. Our team of experienced professionals is available to provide assistance with installation, maintenance, troubleshooting, and any other technical issues. We also provide training and support for product updates and upgrades.

If you have questions or need assistance, please contact us at support@othergenerators.com. We look forward to helping you get the most out of your Other Generators products.
