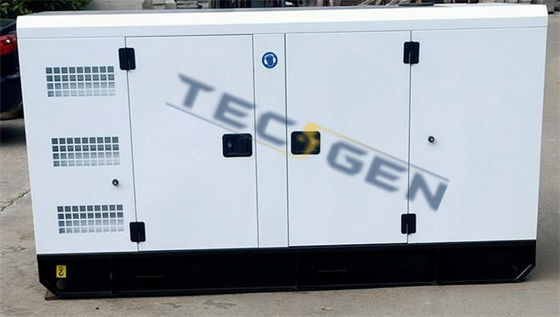

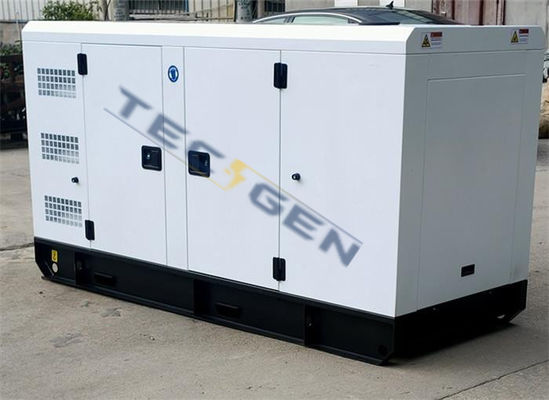

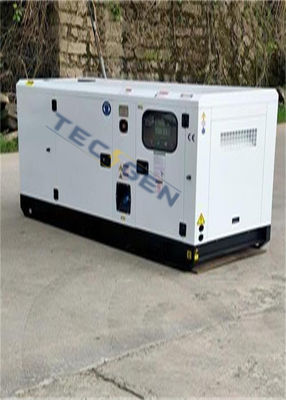

60hz 25 Kva Generator Set Low Noise Soundproof Type For Home Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conditions Of Use | Land-use | Genset Type | Low Noise Soundproof |
|---|---|---|---|
| Rated Power | 20kW / 25kVA | Standby Power | 22kW / 28kVA |
| Frequency | 60Hz | Rated Voltage | 208 / 120V |
| Engine Brand | Quanchai | Alternator | Copy Stamford |
| Highlight | soundproof 25 kva generator set,low noise 25 kva generator set,25kva soundproof diesel generator set |
||
Product Description
60Hz Diesel Generator with 25kVA Low Noise Soundproof Type for Home Use
- Cost-effective 25kVA China Diesel Genset: We offer a cost-effective 25kVA China Diesel Genset that provides superior reliability and performance, suitable for various applications.
- Reliable Quanchai Engine: Our 25kVA genset is equipped with a reliable Quanchai engine. Quanchai has a strong reputation in the diesel engine manufacturing industry, ensuring excellent performance and reliability.
- Flexible Payment Terms: We provide two flexible payment options to meet different customer needs. You can choose to pay 30% deposit via T/T (Telegraphic Transfer) and 70% before shipment, or opt for 100% payment through an irrevocable Letter of Credit (L/C) at sight.
- Comprehensive Supply Scope: Our supply scope includes the diesel engine, alternator, automatic start/stop control panel, dry-type air filter, fuel filter, oil filter, 4V D.C automatic battery charger, max. 50-degree radiator, batteries, rack and cable, ripple flex exhaust pipe, flange and muffler, circuit breaker, base fuel tank, and complete user's manual.
- Factory Tested for Quality: Every unit of our 25kVA China Diesel Genset undergoes strict factory testing to ensure high quality and performance. We prioritize delivering brand new and thoroughly tested products to our customers.
- Service and Parts Availability: Tecgen Power and our authorized distributors provide service and parts support for the 25kVA China Diesel Genset. You can rely on our network for assistance and availability of genuine parts in your location.
| Engine | Quanchai/SDEC/Ricardo/Weichai | Radiator | 50degrees max, fans driven by belt with safety guard |
| Alternator | Stamford / Leroy Somer / Meccalte etc. | Charger | 12/24V DC charger |
| Controller | Smartgen / Deepsea / DEIF, etc. | Governor | Mechanical or electronic |
| Circuit breaker | CHINT / Delixi / Aisikai etc. | Canopy | Soundproof made by galvanized steel plate |
| ATS | Aisikai / ABB / SOCOMEC, etc. | Filters | Dry type air filter, fuel filter, oil filter |
| Fuel tank | 8hours / 12hours / 24hours, or customed | Absorber | High strength rubber |
| Start system | 24V electric start | Muffler | Ripple flex exhaust pipe, exhaust siphon, flange |
| Battery | Maintenance free type | Manuals | Complete with engine, alternator and genset |
25KVA QAUNCHGAI GENSET TECHNICAL DATA:
| Technical Specification: | ||
| Standby Power 22kW Quanchai Silent Generator Set Specification | ||
| Genset Model | TG28QCD6 | TG28QCSD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Voltage | 208 / 120V | |
| Phase | 3 | |
| Rate Current | 69.4A | |
| Prime Power | 20kW / 25kVA | |
| Standby Power | 22kW / 28kVA | |
| Engine Model | Quanchai N490D | |
| Alternator Model | TGI184S20 | |
| Controller | Mebay DC52D | |
| Fuel Tank Type | 8 Hours Integrated-fuel-tank | |
| ATS | 80A Built-in Auto Transfer Switch | |
| Weight & Dimensions | ||
| Length (mm) | 1320 | 1900 |
| Width (mm) | 700 | 730 |
| Height (mm) | 1000 | 1130 |
| Weight (kgs) | 600 | 830 |
| Engine Specification | ||
| Brand | Anhui Quanchai Engine Co., Ltd | |
| Engine Model | N490D | |
| Standby power | 27kW | |
| Injection | Indirect | |
| Aspiration | Natural intake | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 90 x 100 | |
| Displacement (L) | 2.544 | |
| Cooling | water | |
| Compression Ratio | 18:1 | |
| Engine Oil capacity (L) | 5.5 | |
| Coolant Capacity ( In radiator) | 5.5 | |
| Governor | Mechanical or Electronical | |
| Air Filter | Dry Element | |
| Fuel consumption | at 60Hz | |
| 100% Load (L/h) | 5.7 | |
| 75% Load (L/h) | 4.3 | |
| 50% Load (L/h) | 2.9 | |
| 25% Load (L/h) | 1.4 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI184S20 | |
| Rate Output | 20kW | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Mebay | |
| Model | DC52D | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Silent & Trailer Type, Remote Monitor, 3000Hours Spare Parts | ||
Quanchai Generator Set Features:
1, Genset Output range: 9kVA to 80kVA Heavy Duty Silent diesel generator.
2, Different brands of engine, alternator and controller for options
3, Coupled with Stamford alternator, Marathon alternator or Chinese Tecgen Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, Aisikai circuit breaker
14, Three-phase output meets differing requirements
15, ATS (Auto transfer switch for city power and generator power) / AMF (auto mains failure) /parallel running for option
16, 10 Working Hours Base Fuel Tank (Integrated-fuel-tank for option)
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Warranty with 1000 hours or one year, which comes first.
All Open or silent type Genset can be installed wheel. It depends on your requirements. If we produce with mobile type, the machine can be moved around easily.
