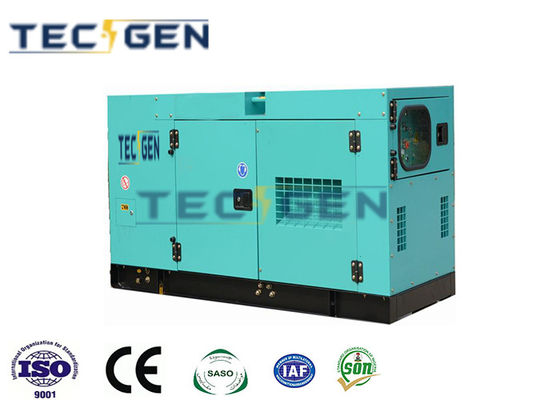

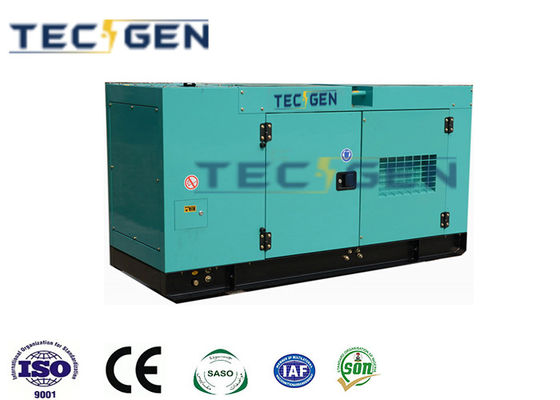

Silent Type 16kw Soundproof Diesel Generator Set With 63a Built In Auto Transfer Switch

Place of Origin Fuzhou, China
Brand Name Quanchai 16kW Silent Genset
Certification CE
Model Number TG22QCSD6
Minimum Order Quantity 1 unit
Price Negotiation
Packaging Details Stretch film packaging or Polywooden Package
Delivery Time 10 - 20 Working Days
Payment Terms T/T, L/C, D/A, D/P
Supply Ability 200 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Genset Output 16kW / 20kVA Genset Type Soundproof
Engine Brand Quanchai N485D Alternator Model Copy Stamford TGI164S16
ATS 63A Built-in Auto Transfer Switch Fuel Tank Type 8 Running Hours Integrated-fuel-tank
Governor Mechanical Or Electronical Fuel Consumption 4.6 L Per Hours
Highlight

silent soundproof diesel generator set

,

16kw soundproof diesel generator set

,

16kw silent diesel generator set

Leave a Message
Product Description

Silent Type 16kW Diesel Generator Set with 63A Built-in Auto Transfer Switch

  1. Quanchai Diesel Engine: Our 16kW Back-up Generator Set is powered by a reliable Chinese diesel engine manufactured by Quanchai. Quanchai is known for producing high-quality engines, ensuring excellent performance and durability.



  1. Flexible Payment Terms: We offer two flexible payment options to accommodate different customer preferences. You can choose between a 30% deposit paid by T/T (Telegraphic Transfer) and 70% before shipment, or 100% payment through an Irrevocable L/C (Letter of Credit) at sight.



  1. Warranty Coverage: Our generator set comes with a warranty period of 12 months or 1,000 running hours, whichever comes first. This warranty demonstrates our confidence in the product's quality and provides you with peace of mind.



  1. Comprehensive Supply Scope: The supply scope of our generator set includes the diesel engine, alternator, automatic start/stop control panel, air filter, fuel filter, oil filter, battery charger, radiator, batteries, exhaust pipe, circuit breaker, base fuel tank, and a complete user manual. This comprehensive package ensures that you have everything necessary for a smooth installation and operation.



  1. Factory Testing: Every unit of our generator set undergoes strict factory testing. This testing process guarantees that you receive a brand new and fully functional product, ready to meet your backup power needs.



  1. Service and Parts Availability: Tecgen Power is committed to providing excellent after-sales service and ensures availability of service and parts through our company or authorized distributors in your location. This ensures prompt assistance and support whenever you need it.



Choose our 16kW Back-up Generator Set powered by a Quanchai diesel engine for its reliability, flexible payment options, warranty coverage, comprehensive supply scope, factory testing, and excellent service and parts availability. Experience the power of Tecgen Power today!



Silent Type 16kw Soundproof Diesel Generator Set With 63a Built In Auto Transfer Switch 0



20kVA SILENT ENCLOSED GENSET TECHNICAL DATA:



Technical Specification:
60Hz 16kW Quanchai Silent Generator Set Specification
Genset Model TG22QCD6 TG22QCSD6
Open Silent
Frequency 60Hz
Voltage 208 / 120V
Phase 3
Rate Current 55.5A
Prime Power 16kW / 20kVA
Standby Power 18kW / 22kVA
Engine Model Quanchai N485D
Alternator Model TGI164S16
Controller Mebay DC52D
Fuel Tank Type 8 Hours Integrated-fuel-tank
ATS 63A Built-in Auto Transfer Switch
Weight & Dimensions
Length (mm) 1320 1900
Width (mm) 700 730
Height (mm) 1000 1130
Weight (kgs) 530 750
Engine Specification
Brand Anhui Quanchai Engine Co., Ltd
Engine Model N485D
Standby power 20kW
Injection Indirect
Aspiration Natural intake
No. of cylinders 4
Bore of Stroke (mm) 85 x 95
Displacement (L) 2.156
Cooling water
Compression Ratio 18:1
Engine Oil capacity (L) 5.5
Coolant Capacity ( In radiator) 5.5
Governor Mechanical or Electronical
Air Filter Dry Element
Fuel consumption at 60Hz
100% Load (L/h) 4.6
75% Load (L/h) 3.4
50% Load (L/h) 2.3
25% Load (L/h) 1.1
Alternator Specification
Brand Tecgen
Model TGI164S16
Rate Output 16kW
Pole 4
Winding Connections Star
Insulation Class H
Enclosure IP23
Altitude (m) ≤1000
Voltage Regulator AVR
Steady State Voltage Regulator 1%
Bearing Single
Controller System
Brand Mebay
Model DC52D
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS Connection
OPTIONAL EQUIPMENTS
Wall-mouted ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Silent & Trailer Type, Remote Monitor, 3000Hours Spare Parts



Silent Type 16kw Soundproof Diesel Generator Set With 63a Built In Auto Transfer Switch 1



While Tecgen Power provides a comprehensive supply scope for the 16kW Back-up Generator Set, there may be additional accessories or customizations available to meet your specific needs. Here are a few options you may consider:



1. Automatic Transfer Switch (ATS): An ATS enables automatic switching between the utility power and the generator during a power outage. It ensures a seamless transition and eliminates the need for manual intervention.



2. Super Soundproof Enclosure: If noise reduction is a priority for your installation, you can inquire about the availability of a Super soundproof enclosure. This enclosure helps minimize the generator's noise emissions, making it suitable for noise-sensitive environments.



3. Fuel Transfer System: If you require an extended fuel capacity or a fuel transfer system for remote fuel monitoring and refilling, you can discuss these options with Tecgen Power. They can provide guidance on the availability and compatibility of such systems.



4. Remote Monitoring and Control: Tecgen Power may offer remote monitoring and control solutions that allow you to monitor the generator's performance, fuel levels, and other critical parameters remotely. This can be particularly useful for managing multiple generators or when remote access is required.



5. Customized Control Panel or Display: Depending on your specific requirements, Tecgen Power may be able to provide customizations to the control panel or display, such as additional monitoring features or specific interface requirements.



Please note that additional accessories or customizations may have specific lead times, costs, and compatibility considerations, which can be discussed in detail with Tecgen Power or their authorized distributors.
