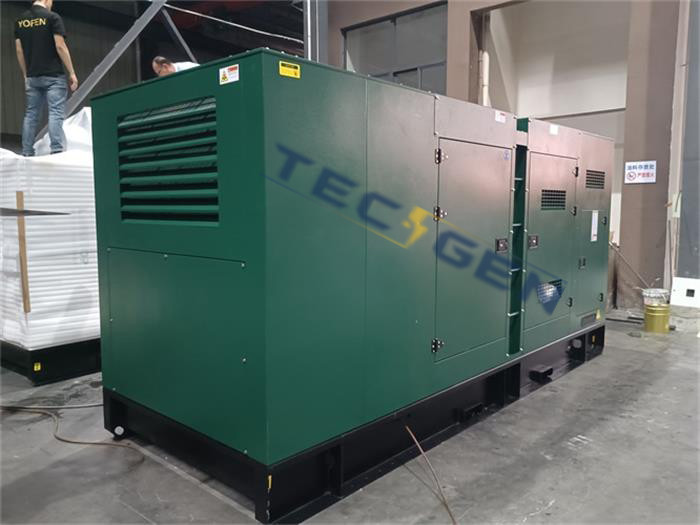

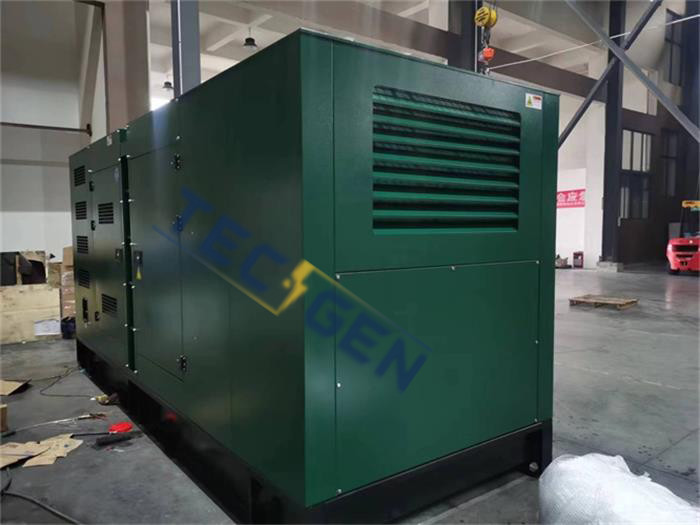

50hz Quiet Diesel Generator 352kva For Backup Power Electricity

50Hz Diesel generator 352kVA diesel generating set for Back-up power electricity

Δ VMAN DIESEL GENERATORS FROM 289kVA TO 1125kVA

1. Powered by genuine VMAN diesel water-cooled engines.
2. Equipped with 50C radiator for silent canopy application.
3. Features a brand new brushless AC alternator with 100% copper wires, Three Phase, 50/60Hz, 1500/1800RPM, H insulation class, IP23 protection grade.
4. Comes with a digital control panel with emergency stop, alarm, and RS485 communication.
5. Heavily-duty fabricated steel-based frame.
6. Complete set mounted on the base frame with anti-vibration mounting pads.
7. Includes a 24V DC electric start system with maintenance-free batteries.
8. Comes with a full set of drawings, manuals, and test reports.
9. Equipped with silencer, flexible connections, and elbows.

Δ TESTING ITEMS

TECGEN POWER offers a comprehensive line of brand new and high-quality products.
Each and every unit undergoes rigorous factory testing before shipment.

1. Testing for parts faults
2. Testing of fuel tank pressure
3. Bolt tightening torque testing
4. Paint thickness testing
5. Voltage bearing and insulation testing
6. Noise testing
7. Loading Testing: 25%, 50%, 75%, 100%, 110% load to verify all control systems, alarms, and shutdown protections.

DIESEL GENERATOR TECHNICAL DATA:

1. Genset Standard Accessories

• Standard 50 radiator mounted on skid
• Common steel frame with Base fuel tank
• Circuit breaker (Delixi / Aisikai)
• Non-return valve
• Shock Pad
• Forklift mouth
• Exhaust silencer
• Battery and connecting wires
• Battery charger by main supply
• RS485 communication interface
• Battery charger by main supply
• Standard tool kit
• Operation manual and document

2. Genset Optional Accessories

• Engine coolant and oil heater
• Water Heater or Diesel Fuel Water Heater
• ATS and paralleling system
• Integrated Fuel Tank
• Fuel-water separator
• Alternator brand option with Stamford / Leroy Somer /Meccalte
• Breaker & ATS option with ABB or Schneider
• 500 hours Spare parts for regular maintenance like Fuel filter, oil filter, air filter, belt and GASK.

Our Generating Set Advantages

1. High-pressure pipes for diesel input-outlet
2. Stronger heavy-duty rubber anti-vibration mountings
3. All base fuel tanks baked enamel finish
4. All canopy powder coating (Powder type - 3 years durable, longer service life and less color fading)
5. Maintenance-free battery and high-quality battery charger
6. High-standard wiring and components (Delixi) relays, indicators, fuse breaker, meters etc.
7. Non-return Valve equipped
8. Turbocharger protection, moving parts protected and other CE standards (depends on required)
9. ONE Hour Testing for all genset (0%-25%-50%-75%-100%-110% loading)
10. Fastest Delivery Guaranteed
11. Commitment to Reliable Quality and After-sale Services
12. Excellent Quality Control and Pre-shipment Inspection
    (All alternator, base frame, fuel tank, canopy, ATS cabinets etc are produced in TECGEN factory zone to avoid any off-site quality problems.

FAQ (Frequently Asked Questions)

Q: What is your warranty period?
A: Our warranty period is 18 months or 1500 running hours, whichever comes first. However, depending on the specific project, we can extend the warranty period.

Q: Does your generator come with a global warranty?
A: Yes, most of our products, such as Cummins and Doosan power generators, come with a global warranty. The alternators we use, like Leroy Somer, Stamford, and Marathon, also come with a global warranty, so you don't have to worry about after-sales service.

Q: Do you offer OEM/ODM services?
A: Yes, we do offer OEM services.

Q: What are your payment terms?
A: We accept 20% payment in advance by T/T and the balance 80% shall be paid before shipment or by L/C at sight. We also accept L/C deferred payment terms.

Q: What is your company's production capacity?
A: We can produce 300 sets of diesel generator sets per month and 4000 units of alternators per month.

Q: What is your delivery time?
A: Our normal delivery time is 10-20 working days. However, for special engines and alternators, the delivery time may be longer.

Q: Can you provide us with spare parts if we need spare parts?
A: Yes, we can provide you with spare parts anytime, not limited to the warranty period. Typically, the parts can be delivered within 3-5 days.
