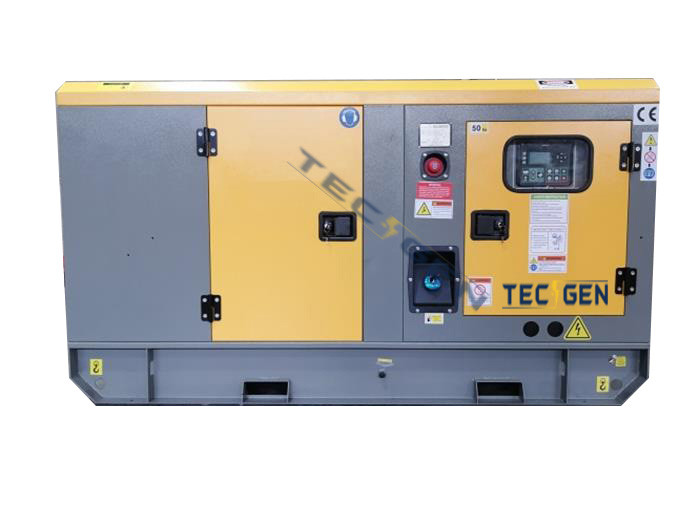

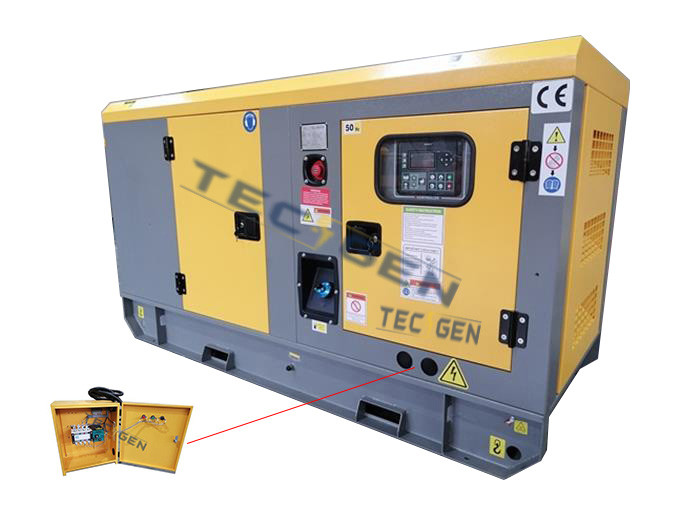

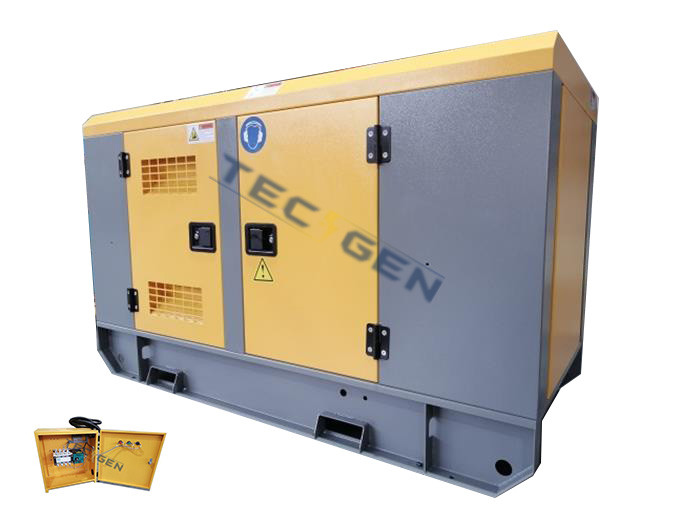

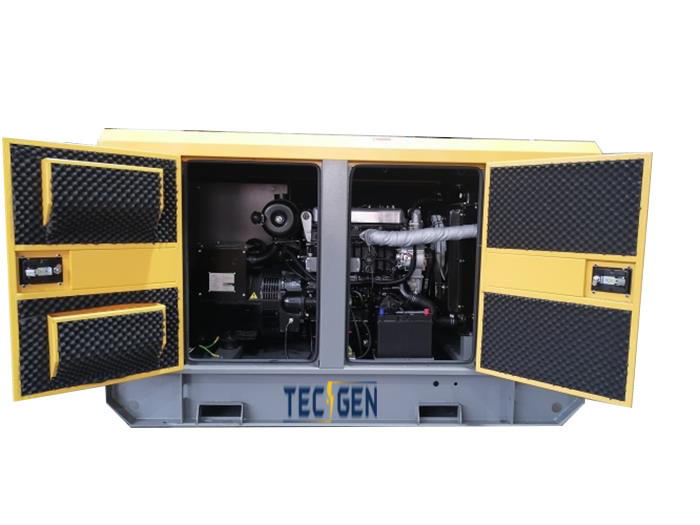

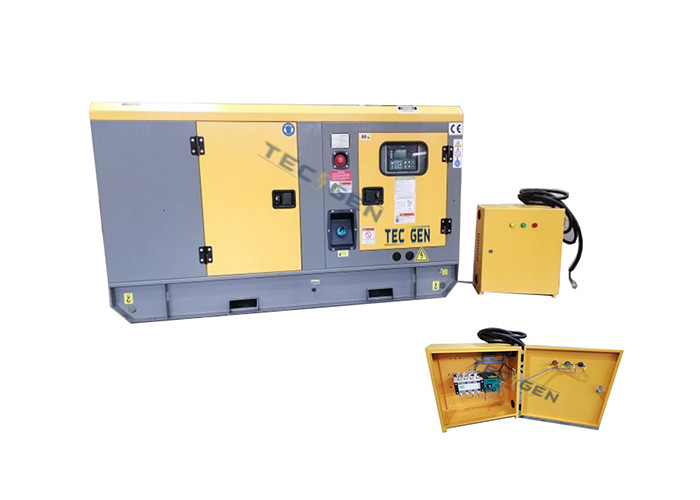

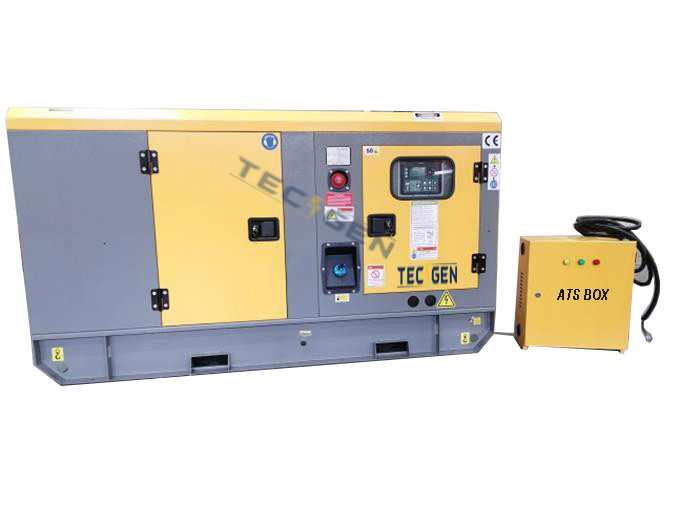

60kW Deutz Diesel Engine Generator With 120A Wall Mounted ATS Box

  • 60kW Deutz Diesel Engine Generator With 120A Wall Mounted ATS Box
  • 60kW Deutz Diesel Engine Generator With 120A Wall Mounted ATS Box
  • 60kW Deutz Diesel Engine Generator With 120A Wall Mounted ATS Box
  • 60kW Deutz Diesel Engine Generator With 120A Wall Mounted ATS Box
  • 60kW Deutz Diesel Engine Generator With 120A Wall Mounted ATS Box
  • 60kW Deutz Diesel Engine Generator With 120A Wall Mounted ATS Box
Place of Origin Fuzhou, China
Brand Name Tecgen Power
Certification CE
Model Number TG83DES
Minimum Order Quantity 1 unit
Price Negotiation
Packaging Details Stretch film packaging
Delivery Time 15 Days
Payment Terms T/T, L/C, D/P, D/A
Supply Ability 200 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Deutz Diesel Generator Type Silent Enclosed
Frequency 50Hz Volatge 220/380V
Prime Output 60kW / 75kVA Max Output 66kW / 83kVA
Engine Deutz BF4M2012C G1 ATS 120A Wall-mounted ATS Box
Highlight

60kW deutz diesel engine generator

,

120A deutz diesel engine generator

,

60kW deutz diesel generator
Leave a Message
Product Description

60kW Diesel generator Deutz diesel engine generator with 120A Wall-mounted ATS Box



The basic configuration for a diesel genset powered by a Deutz diesel engine includes:

  1. A brand-new Deutz water-cooled diesel engine with 4 cylinders and turbocharging.
  2. A brand-new AC alternator from STAMFORD / Leroy Somer / Mecc Alte / TECGEN, with ratings of 230/400V (confirmable and customizable), 3-phase, 50Hz, 1500Rpm, 0.8 power factor, IP23 protection, and H insulation class.
  3. A radiator with an engine-driven fan, mounted on a skid for efficient cooling.
  4. The genset is equipped with a DEIF SGC-420 auto start control panel from Denmark, conveniently mounted on the set.
  5. The set includes a CHNT brand circuit breaker for reliable electrical protection.
  6. Anti-vibration mountings are used to reduce vibrations and ensure smooth operation.
  7. The genset features a 12/24V DC electric start system, utilizing VARTA brand lead-acid type starting batteries.
  8. Industrial silencers with flexible connections and elbows are included for noise reduction.
  9. A base fuel tank is integrated into the genset, providing 8 hours of running time and equipped with a fuel gauge on the base frame.
  10. The genset comes with a test report, a set of drawings, and operation and maintenance manuals (O&M manuals).
  11. A standard tool kit is provided for basic maintenance and servicing.



Optional Supply:

  1. ATS (ATS box or ATS cabinet)
  2. Water Hearer / diesel water heater
  3. Integrated Fuel Tank
  4. Remote control by cell phone
  5. 12 / 24 running hours fuel tank
  6. Engine 3000 hours spare parts
  7. Canopy with customed material and colors
  8. Super Silent design with 60dB(A) at 7m



60kW Deutz Diesel Engine Generator With 120A Wall Mounted ATS Box 0

60kW Deutz Diesel Engine Generator With 120A Wall Mounted ATS Box 1





60kW Diesel Generator Set Datasheet
Genset Model TG83DES
Rated Power 60kW / 75kVA
Standby Power 66kW / 83kVA
Governor Electric
Frequency 50Hz
Rated Voltage 220 /380 V
Rated Current (A) 114.0A
Dimension (mm) L1650 x W700 x H900
Gross Weight (kg) 800
Diesel Engine Brand Deutz
Model BF4M2012C G1
Configuration Four-stroke,Water-cooling,Direct Injection
Rated Power 70kW
Rated Speed (rpm) 1500rpm
Cylinder No. 4
Bore*Stroke (mm) 101 x 126
Displacement(L) 4.04
Intake Turbocharged
Fuel Consumption (g/Kw*h) 221@100% load
Starting method 24V DC
Alternator Brand Tecgen
Model TGI224S60
Rated Power 75kVA
Materials 100% pure copper
Efficiency 92.50%
Voltage Regulation <=±1
Voltage Regulation Brushless, Self-excitation
Insulation Class H
Option brands Stamford / Leroy Somer / Meccalte
Control System Brand DEIF
Model DEIF SGC-420
Working Voltage DC8.0V to DC35.0V, continuous
Overall Dimensions (mm) 233*38.5*173
Panel Cutout (mm) 219*158
Working Condition 0 to 95 % RH. To IEC 60068-2-78
Functions AMF/ATS
RS485 & CAN communication
9 Inlet & 7 Outlet
PLC & BTN
Protections Under-speed
Over-speed
Configurable crank connect
Battery monitoring
Charging alternator
Pre-heat
Coolant temperature
Lube oil pressure
Fuel level detection
Fuel theft detection
ECU communication failure
ECU diagnostic lamp
Option brands Deepsea / Smartgen / ComAp / Mebay
Genset option equipment
Integrated-Fuel-Tank ATS Box / Cabinet
PMG Alternator Sync Panel
Trailer Type Engine Heater
Water Heater Fuel – Water Separator
Maintenance Timetable of Diesel Generating Set
Items Job Content Everyday Every Week Every Month Every Six Month Every Year or 250 Hours
Lubricating System Check Oil leakage √ √ √ √ √
Level of engine oil √ √ √ √ √
Replace Oil Filter       √ √
Engine Olil       √ √
Clean Crankcase box       √ √
Cooling System Check Oil leakage √ √ √ √ √
Radiator Block     √ √ √
Soft Tube and Joint     √ √ √
Fluid   √ √ √ √

Antifreeze and

Anticorrosion

     √ √ √
Belt Status       √ √

Add Grease

lubricant

 Fan and Tensing       √ √
Belt wheel       √ √
Check Driving Belt wheel and pump       √ √
Replace Cooling Liquid Every 12 months
Clean Cooling System
Airflow System Check Oil Gas     √ √ √
Cleaner   √ √ √ √
Pipe Fittings and Joint       √ √
Replace Core of Air Cleaner         √
Fuel System Check Leakage √ √ √ √ √
Quality of Fuel   √ √ √ √
Pump Nozzle         √
Fuel pipe and Joint       √ √
Oil Pump     √ √ √
Discharged Deposition of Fuel Tank     √ √ √
Replace Filter of oil       √ √
Check Nozzle Every Two Years
Adjust Value         √





60kW Deutz Diesel Engine Generator With 120A Wall Mounted ATS Box 2



60kW Diesel Generator Set Powered by Deutz Engine



1. Brand new water-cooled diesel engine with a 50 ºC tropical radiator.

2. Brand new brushless alternator with a 2-year warranty.

3. DEIF / DEEP SEA / ComAp / TECGEN POWER digital controller.

4. Maintenance-free starter battery and battery isolator switch.

5. Oil, coolant, fuel, and water drain on the base frame for easy cleaning.

6. Anti-vibration mountings for reduced noise and vibrations.

7. 0%, 25%, 50%, 75%, 100%, 110% loading test by load bank before shipping.

8. Generators equipped with 8-10 hours fuel tank.

9. General catalog in English in PDF format showcasing quality and manufacturing values.

10. Additional kit of filters and basic spare parts included.

11. 100% fire-resistant sound attenuation material for long-lasting noise reduction.

12. Manufactured in accordance with ISO9001-2008 and GB/T19001-2008 quality standards.



Optional:

1. Frequency options: 50Hz (380/220V, 400/230V, 415V/240V, 440V) or 60Hz (110/220V, 115/230V, 127/220V, 220/440V).

2. Single phase or three-phase configurations available.

3. Automatic Transfer Switch (ATS) option for seamless power transfer.

4. Water/Oil heater for improved performance in cold weather.

5. Genset container design available in 20FT/40HQ.

6. Customizable options to meet specific requirements.



FAQ:

1. Minimum order quantity: 1 set.

2. Payment terms: T/T, L/C.

3. Delivery time: 10-20 working days.

4. Port of loading: Fuzhou, China.

5. OEM and ODM supported.

6. Available colors: White, Blue, Red, Green, Yellow, Gray, etc.

7. Exported to Southeast Asia, Middle East, Africa, Europe, North and South America, Oceania.

8. Certifications: ISO9001-2008, ISO14001-2004, CE, etc.

9. Packaging: Stretching film (plywood crate optional).

10. Validity period of the offer: 30 days.
