360kW Open Frame Diesel Generator Genset With AMF / RS485 Comminication Functions
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Deutz Diesel Generator | Application | Indursty Bank Hotel Factory Building |
|---|---|---|---|
| Alternator Type | Brushless, Self-exciting | Control System | AMF/ATS/Manual |
| Rated Power | 360kW / 450kVA | Fuel Tank | 8-24H,Base Fuel Tank/External FueL Tank |
| Output Type | Three Phase | Voltage | 230V/400V, 110V/220V |
| Highlight | 360kW open frame diesel generator,AMF open frame diesel generator,RS485 open frame diesel generator |
||
Product Description

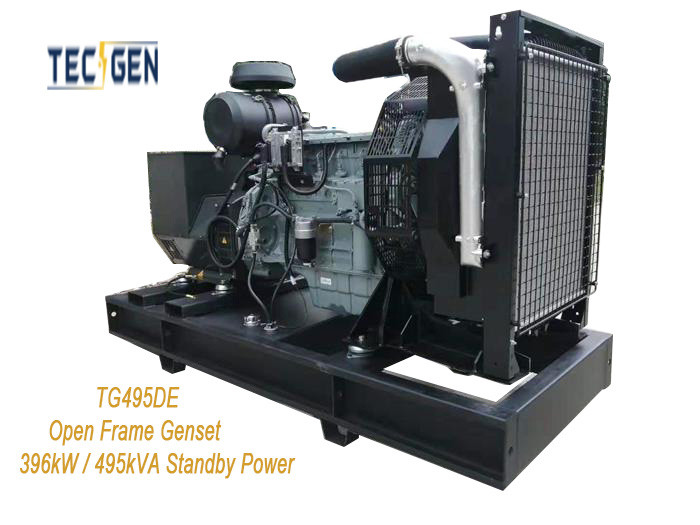

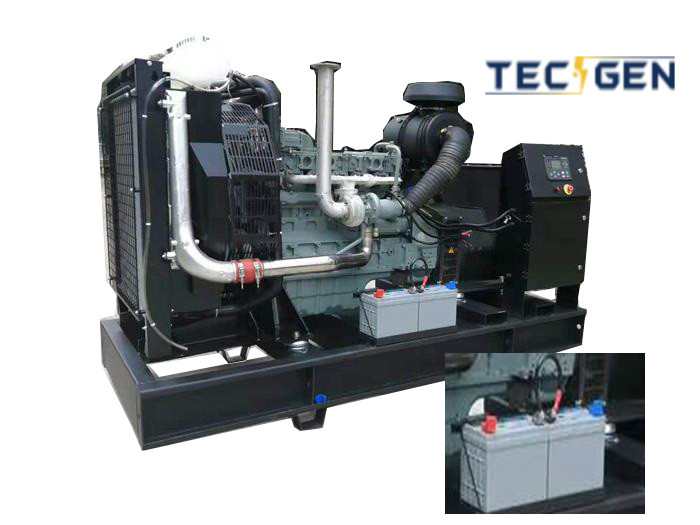

Diesel Generator 360kW Open frame Genset with AMF/RS485 Comminication Functions
Configuration Specification with Unique Features:
- Engine: Brand new, original water-cooled diesel engine ensures optimal performance and longevity.
- Alternator: Top-quality STAMFORD, LEROY SOMER, or Tecgen single-bearing 3-phase alternator with IP23 and H insulation class guarantees efficient power generation.
- Radiator: Original 50ºC radiator with an engine-driven fan mounted on a skid for effective cooling.
- Circuit Breaker: Reliable Delixi or Chint branded case circuit breaker ensures electrical safety.
- Frame & Fuel Tank: Heavy-duty fabricated steel frame with a built-in fuel tank supports at least 8 hours of uninterrupted operation.
- Anti-Vibration Mountings: Complete set mounted on a base frame with anti-vibration mountings for reduced noise and vibration.
- Exhaust System: Industrial 9 dB muffler exhaust system with flexible connections and bellows for quiet operation.
- Maintenance: Base frame equipped with fuel, oil, and coolant drain cocks for easy maintenance.
- Electric Start System: 12/24V DC electric start system with a maintenance-free battery and a SMARTGEN brand battery charger ensures smooth startup.
- Control Panel: Set-mounted automatic control panel with a SMARTGEN brand AMF controller module for automatic start & stop provides convenient operation.
- Documentation: Comprehensive test report of the generator, set of drawings, and manuals for easy installation and usage.
- Certifications: CE and ISO9001 approved, guaranteeing the highest standards of quality and safety.
| Engine | Genset Power Range | Alternator | Controller | Option |
| Cummins | 16kW - 1200kW | Stamford / Leroy Somer / Meccalte / Marathon / Tecgen | DEIF SGC-420 | ATS |
| Perkins | 7kW - 1800kW | |||
| Deutz | 16kW - 600kW | |||
| Ricardo | 13kW - 300kW | Tecgen TG6120U | ||
| Yangdong | 7kW - 60kW | |||
| FAWDE | 12kW - 320kW | |||
| Weichai | 18kW - 3000kW | DEIF SGC-420 | ||
| SDEC | 8kW - 800kW | |||
| Yuchai | 30kW - 2000kW | |||
| Quanchai | 7kW - 64kW | Smargen HGM6120N | ||
| VMAN | 210kW - 818kW | |||
| YTO | 24kW - 320kW | |||
| Air-cooled | 11kW - 91kW | |||
| ISUZU | 17kW - 30kW | DEIF SGC-420 | ||
| Yunei | 12kW - 80kW | Mebay DC52D | ||
| Shangyan | 145kW - 850kW | |||
| Woling | 160kW - 800kW |

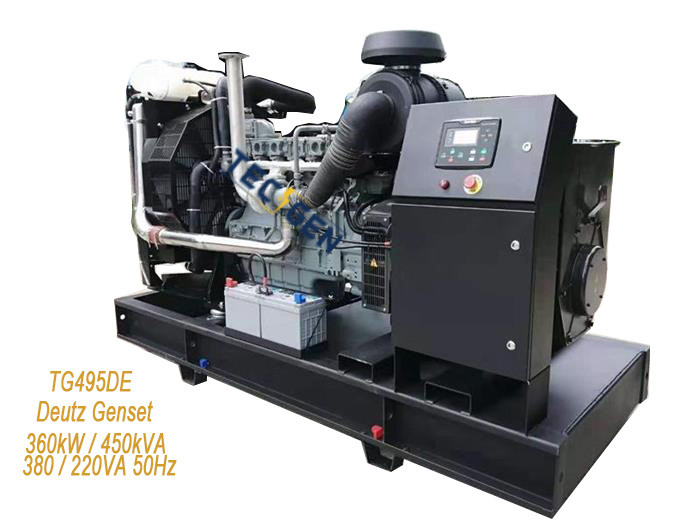

450kVA Diesel Generator Powered by Deutz Specifications:
| 360kW Power Generating Set Datasheet | ||||
| Deutz Diesel Generator | Genset Type | Open Type | ||
| Genset Model | TG495DE | |||
| Prime Output | 450kVA / 360kW | |||
| Max Output | 495kVA / 396kW | |||
| Engine model | Deutz TCD13 G1 | |||
| Alternator model | TGI354S360 | |||
| Frequency | 50Hz | |||
| Speed | 1500rpm | |||
| Voltage | 380/220V | |||
| Output Type | 3 Phase, 4 Wire | |||
| Current | 683.7A | |||
| Controller | DEIF SGC-420 | |||
| ATS | Option | |||
| Breaker | Aisikai / Delixi | |||
| Battery | Varta | |||
| Fuel Tank | 8 running Hours | |||
| Demission | L3100 x W2000 x H1900 | |||
| Weight | 3500 | |||
| Deutz Diesel Powered Genset parameters | ||||
| Voltage setting range | ≥±10% | |||
| Steady state voltage regulation rate | ≤0.5% | |||
| Transient voltage deviation (100% sudden power reduction) | ≤+17% | |||
| Transient Voltage Deviation (40% Sudden Power) | ≤-6.5% | |||
| Voltage Stability Time (100% Sudden Power Reduction) | ≤2.8S | |||
| Voltage Stability Time (40% Sudden Power) | ≤2.5S | |||
| Frequency adjustment range | ≥±10%Adjustble | |||
| Frequency volatility | ≤±0.25% | |||
| Transient frequency deviation (100% sudden power reduction) | ≤+8% | |||
| Transient frequency deviation (40% sudden power) | ≤-5% | |||
| Frequency Recovery Time (100% Sudden Power Reduction) | ≤1.48S | |||
| Frequency recovery time (40% sudden power) | ≤1.35S | |||
| Diesel Engine Parameters | ||||
| Deutz Engine TCD13 G1 | Brand | FAW JIEFANG (Deuzt) Engine Co., Ltd | ||
| Model | TCD13 G1 | |||
| Prime power | 435 | |||
| Combustion | Direct Injection | |||
| No. of Cylinders | 6Cylinder | |||
| Aspiration | Turbocharged & Intercooled | |||
| Compression Ratio | Direct Injection | |||
| Speed | 1500rpm | |||
| Displacement | 7.8 | |||
| Bore* Storke | 110mm*136 | |||
| governor | Electric | |||
| Start motor | DC 24V | |||
| Cooling Capacity | 31 | |||
| Cooling Type | Water cooling | |||
| FUEL CONSUMPTION | 229g/kW.h | |||
| Brushless Alternator Parameters | ||||
| Alternator TGI354S360 | Brand | Tecgen Power | ||
| Model | TGI354S360 | |||
| Rate Output | 360kW | |||
| Rate Speed | 1500rpm | |||
| Frequency | 50Hz | |||
| Altitude | ≤1000 | |||
| Alternator type | Single bearing, brushless type | |||
| Connection Type | 3 phase, 4 wire | |||
| Protection Grade | IP23 | |||
| Insulation Class | H | |||
| Voltage Regulation | AVR | |||
| Option brand | Stamford,Leroy Somer,Meccalte | |||
| Genset Controller System | ||||
| Controller DEIF SGC-420 | Brand | DEIF | ||
| Model | SGC-420 | |||
| Working Voltage | DC8.0V to DC35.0V, continuous | |||
| Overall Dimensions (mm) | 233*38.5*173 | |||
| Functions | AMF/ATS | |||
| RS485 & CAN communication | ||||
| 9 Inlet & 7 Outlet | ||||
| PLC & BTN | ||||
| Protections | Under-speed | |||
| Over-speed | ||||
| Configurable crank connect | ||||
| Battery monitoring | ||||
| Charging alternator | ||||
| Pre-heat | ||||
| Coolant temperature | ||||
| Lube oil pressure | ||||
| Fuel level detection | ||||
| Fuel theft detection | ||||
| ECU communication failure | ||||
| ECU diagnostic lamp | ||||
| Option brand | DEEPSEA,Smartgen,ComAp | |||
| Optional accessories | ||||
| Engine | Alternator | Electrical system | ||
| Water Heater | Anti-condensation heater | Anti-condensation heater | ||
| Oil preheater | PMG | Unit control screen with three remote functions | ||
| Air starting motor | Parallel | ATS automatic load transfer screen | ||
| Heavy Air Filter for Desert | Generators of other temperature rise grades | Full-automatic parallel screen for multiple units | ||
| Heavy duty secondary muffler | RTD temperature sensor, 2 per phase | Remote control system separate from unit | ||
| Fuel system | Other | Cooling system | ||
| 12/24h Base tank | Super Silent Canopy | Split water tank | ||
| Oil - water separator | Static sound box generator set |
|
||
| Fully automatic oil supply system | Vehicle-mounted power generation vehicle | Heat exchanger and external circulation cooling tower | ||
| Integrated Fuel Tank | Towing generator set | Marine cooling system | ||
| Delivery Date of Diesel Generator Set | ||||
| Spot goods | QTY(Set) | 12 – 24 Sets | 24 – 120 Sets | |
| Delivery Time | 7-15 Days | 15 – 25 Days | ||
| Custom | Delivery Time | 20 Days | 20 – 30 Days | |
ENHANCED CONFIGURATION with TECGEN POWER:
- Engine Versatility: Powered by a range of brand new original engines from CCEC/DCEC, UKPERKINS, DEUTZ, WEICHAI, YUCHAI, SDEC, RICARDO, and YANGDONG, ensuring a diverse selection for various applications.
- Alternator Quality: Utilizing top-tier STAMFORD, LEROY SOMER, or TECGEN single-bearing 3-phase alternators with IP23 and H insulation class for reliable power generation.
- Radiator Efficiency: Original 50ºC radiator paired with an engine-driven fan mounted on a skid for optimal cooling performance.
- Circuit Breaker Options: DELIXI, CHINT, or ABB branded case circuit breakers for enhanced electrical safety and protection.
- Durable Frame Design: Heavy-duty fabricated steel frame incorporates a built-in fuel tank, ensuring uninterrupted operation for at least 8 hours.
- Vibration Reduction: Complete set mounted on a base frame equipped with anti-vibration mountings for smoother, quieter operation.
- Exhaust System Quietness: Industrial 9 dB muffler exhaust system featuring flexible connections and bellows for reduced noise levels.
- Maintenance Simplicity: Base frame designed with fuel, oil, and coolant drain cocks for effortless maintenance and servicing.
- Advanced Electric Start: 12/24V DC electric start system paired with a maintenance-free battery and a DEIF brand battery charger for reliable startup.
- Control Panel Automation: Set-mounted automatic control panel featuring DEIF, SMARTGEN, DEEPSEA, or COMAP brand AMF controller modules for seamless automatic start and stop functionality.
- Comprehensive Testing: Each unit undergoes rigorous factory testing, including parts faults, fuel tank pressure, bolt tightening torque, painting thickness, voltage bearing, insulation, noise, and loading tests up to 110% to verify control systems, alarms, and shut-down protection.
OPTIONAL SUPPLEMENTARY FEATURES:
- Weatherproof, Soundproof, or Trailer-Mounted Canopy for additional protection and convenience.
- Engine/Alternator Pre-heaters for colder environments.
- Auto load sharing and synchronization panel for multi-generator setups.
- Build-in ATS (Auto Start & Stop Main Failure) or ATS Box/Cabinet for automatic failover.
- Large 12/24-hour fuel tank for extended runtime.
- Power output sockets for direct connection of appliances.
- Integrated Fuel Tank for a compact and self-contained solution.
- Fuel-Water Separator to ensure clean and efficient fuel usage.
