60kVA Diesel Generator Silent Enclosed Generator Set With 100A Built In ATS
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Prime Power | 60kVA | Standby Power | 66kVA |
|---|---|---|---|
| Diesel Engine | BF4M2012 DEUTZ | Frequency | 50Hz |
| AMPS | 83.5A | ATS | 100A Built-in Auto Transfer Switch |
| Genset Type | Silent / Soundproof / Super Silent | Controller | DEIF / DEEPSEA / Smartgen / ComAp / Tengen |
| Highlight | 60kVA diesel generator set,diesel generator set Built In ATS |
||
Product Description

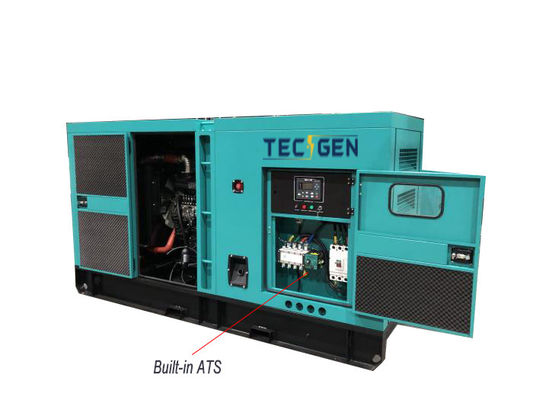

60kVA diesel generator silent enclosed generator set with 100A Built-in ATS
60kVA generator set is designed to provide a reliable and quiet power solution for various applications. With a continuous power output of 60kVA/48kW and a maximum power output of 66kVA/53kW for one hour, our generator set is an ideal choice for both prime and standby power applications.
Key Features:
- Engine: The Deutz BF4M2012 diesel engine powers our generator set, offering exceptional performance, reliability, and fuel efficiency. This engine is known for its durability and ability to deliver consistent power output.
- Generator: The Leroy Somer TAL-A42-H alternator is integrated into our generator set, providing high-quality power output and excellent voltage regulation. This generator is highly efficient and can handle varying load demands with ease.
- Control System: Equipped with the DEIF SGC-420 controller, our generator set offers advanced functionality and reliable performance. The controller allows for easy operation, real-time monitoring, and automatic protection, ensuring efficient and safe power management.
- Silent Operation: Our generator set is designed with noise reduction features, making it suitable for noise-sensitive environments. The soundproof enclosure and advanced insulation minimize noise levels, creating a quiet power solution.
Specifications:
- Power Output: Continuous 60kVA/48kW, Maximum 66kVA/53kW (1 hour)
- Engine Model: Deutz BF4M2012
- Generator Model: Leroy Somer TAL-A42-H
- Control System: DEIF SGC-420
- Fuel Type: Diesel
- Fuel Tank Capacity: 8 hours (standard)
- Voltage: 220V, 380V, 400V, or as per customer requirements
- Frequency: 50Hz or 60Hz
Options:
- Automatic Transfer Switch (ATS): Enables automatic switching between the generator and the main power supply, providing seamless backup power during outages.
- Extended Fuel Tank: Additional fuel storage capacity for extended runtime.
- Remote Monitoring System: Allows remote monitoring and control of the generator set through a user-friendly interface.
60kVA Diesel Generator Set Technical Specifications:
| 60kVA Silent Generator Set Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |

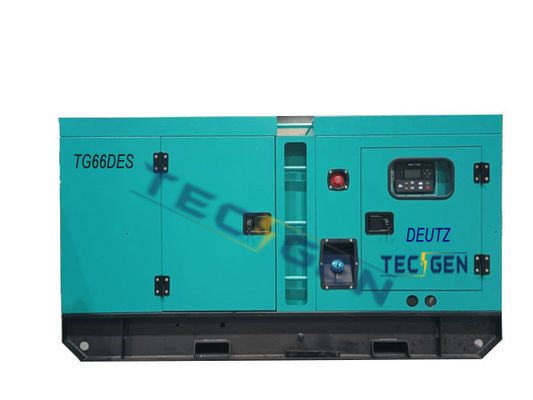

| TG66DES | BF4M2012 | TAL-A42-H | DEIF SGC-420 | 60kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Deutz 60kVA Diesel Generator Set | |||||
| Engine Model | BF4M2012 DEUTZ | ||||
| Alternator Mode | TAL-A42-H LEROY SOMER | ||||
| Rated Output | 60kVA / 48kW | ||||
| Standby Output | 66kVA / 53kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 240 / 415V | ||||
| Rated Current | 83.5A | ||||
| Breaker | 100A Aisikai Breaker | ||||
| ATS | 100A Built-in ATS | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 70dB(A) | ||||
| Net Weight | 1400KGS | ||||
| Genset size | L2400 * W1150 * H1300mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 60kVA Diesel Generator Set | |||||
| Manufacture | DEUTZ JIEFANG | ||||
| Model | BF4M2012 | ||||
| Rated Output/Speed | 54KW/1500RPM | ||||
| Standby Output/Speed | 60KW/1500RPM | ||||
| Aspiration | Turbocharged | ||||
| Speed Governor | Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 101*121mm | ||||
| Displacement | 4.04 L | ||||
| Compression ratio | 18.4:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 16.9 L / h | ||||
| Fuel Consumption/standby output | 17.8 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 60kVA Diesel Generator Set | |||||
| Alternator Model | TAL-A42-H | ||||
| Manufacture | Leroy Somer | ||||
| Rate Output | 50kW | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of onshore diesel generator set | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Silent Diesel Generator Advantages:
- Reliable Power Solution: Our Silent Type Diesel Generator Set offers a dependable power solution for a wide range of applications. Whether it's for residential, commercial, or industrial use, our generator set ensures uninterrupted power supply to keep your operations running smoothly.
- Quiet Operation: With its soundproof enclosure and advanced insulation, our generator set operates quietly, making it suitable for noise-sensitive environments such as residential areas, hospitals, and outdoor events. Enjoy efficient power generation without compromising on peace and tranquility.
Generator Set Usage:
- Residential Backup Power: Ensure continuous power supply during electrical outages, keeping essential appliances and systems running smoothly in residential areas.
- Construction Sites: Provide reliable power for construction sites, enabling the operation of tools, machinery, and equipment to meet project requirements.
- Healthcare Facilities: Ensure uninterrupted power supply for hospitals, clinics, and healthcare facilities, supporting critical medical equipment, life support systems, and patient care.
- Outdoor Events and Entertainment: Power outdoor events, concerts, festivals, and entertainment venues with our silent generator set, creating an enjoyable experience for attendees and performers.
FAQ (Frequently Asked Questions):
Q1: What is the fuel consumption of the generator set?
A1: The fuel consumption varies depending on the load and operating conditions. Our generator set is designed for optimal fuel efficiency, ensuring cost-effective operation.
Q2: Can the generator set be customized to meet specific voltage and frequency requirements?
A2: Yes, our generator set can be customized to meet various voltage and frequency requirements based on your specific needs.
Q3: Does the generator set come with a warranty?
A3: Yes, we provide a standard warranty period for our generator set. Please contact our customer service for more information.
Q4: Can I monitor the generator set remotely?
A4: Yes, we offer a remote monitoring system that allows you to monitor and control the generator set from a distance, ensuring convenience and peace of mind.
Experience reliable and quiet power generation with our Silent Type Diesel Generator Set. Contact our dedicated customer service team for inquiries, customization options, and expert assistance. Invest in a dependable power solution that meets your needs and exceeds your expectations.
