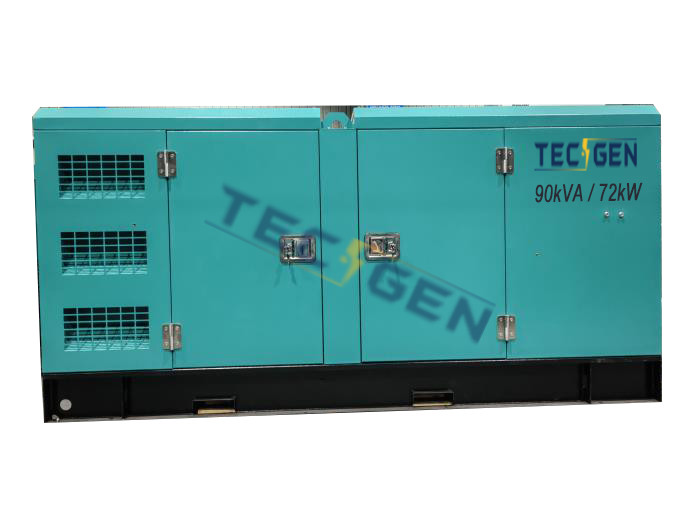

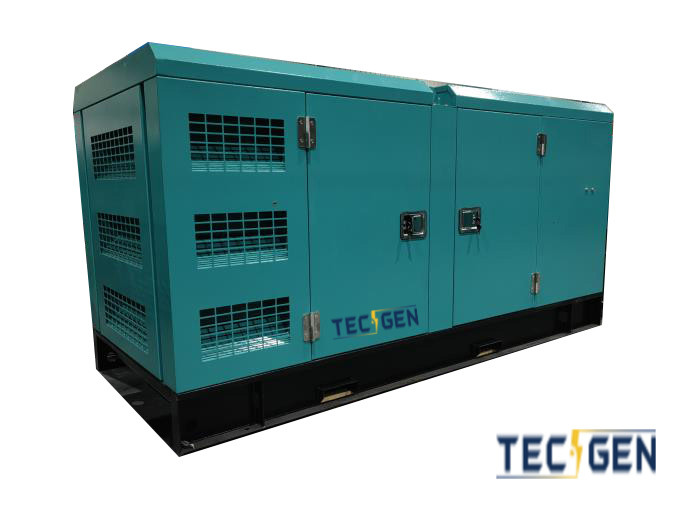

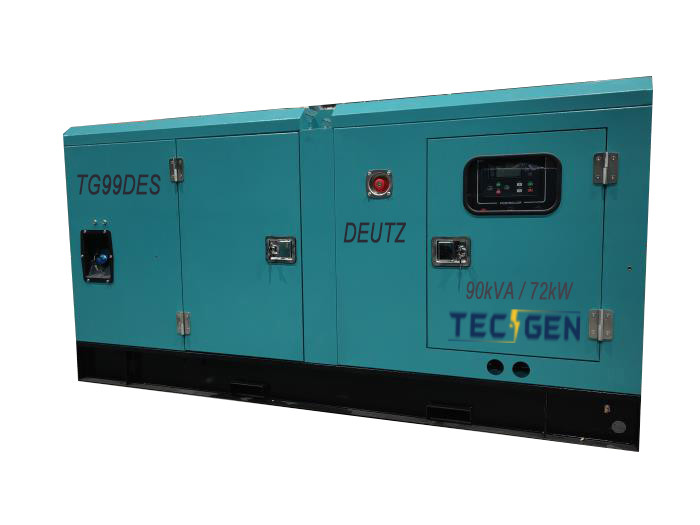

90kva Deutz Soundproof Diesel Generator Set Equipped With Integrated Fuel Tank
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Diesel Generator With Integrated Fuel Tank | Engine Brand | Deutz |
|---|---|---|---|
| Alternator Brand | Leroy Somer | Controller | DEIF SGC-420 |
| Prime Power | 90kVA / 72kW | Standby Power | 99kVA / 79kW |
| Genset Type | Soundproof | Fuel Tank Type | Integrated-fuel-tank |
| Highlight | 90kva soundproof diesel generator set,Deutz soundproof diesel generator set |
||
Product Description
90kVA Generator set soundproof diesel generator equipped with Integrated-fuel-tank
Designed to provide a reliable power solution for various applications, 90kVA generator set combines advanced technology and superior performance to meet your power requirements with ease. With a continuous power output of 90kVA/72kW and a maximum power output of 99kVA/79kW for one hour, our generator set is the ideal choice for both prime and standby power applications.
90kVA Generator Set Key Features:
- Engine: Our generator set is powered by the renowned Deutz BF4M2012C G2 diesel engine. This engine offers exceptional reliability, fuel efficiency, and durability, ensuring consistent performance even in demanding conditions.
- Generator: The Leroy Somer TAL-A44-D alternator is integrated into our generator set, delivering high-quality power output and excellent voltage regulation. This generator is known for its efficiency and ability to handle varying load demands.
- Control System: The DEIF SGC-420 controller, an imported brand known for its advanced functionality, ensures optimal performance and safety. It provides real-time monitoring, automatic protection, and user-friendly operation, making it easy to manage and control the generator set.
- Silent Operation: Our generator set is designed with noise reduction features, including a soundproof enclosure and advanced insulation. This ensures quiet operation, making it suitable for noise-sensitive environments such as residential areas, hospitals, and outdoor events.
90kVA Genset Specifications:
- Power Output: Continuous 90kVA/72kW, Maximum 99kVA/79kW (1 hour)
- Engine Model: Deutz BF4M2012C G2
- Generator Model: Leroy Somer TAL-A44-D
- Control System: DEIF SGC-420
- Fuel Type: Diesel

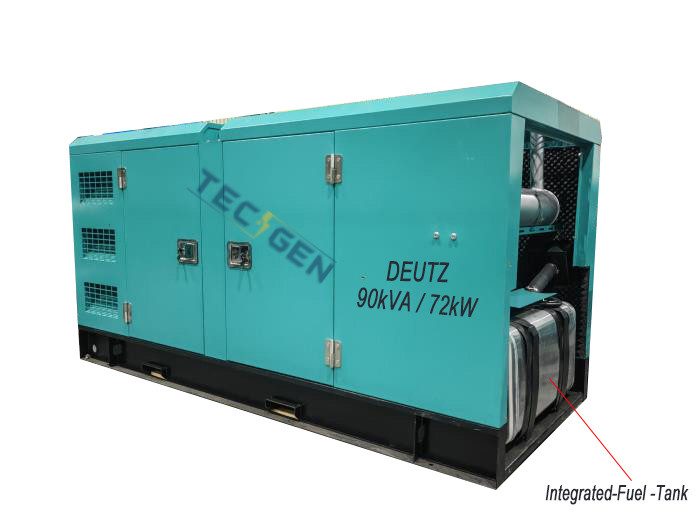

- Fuel Tank Capacity: Integrated Fuel Tank (customizable options available)
- Voltage: 220V, 380V, 400V, or as per customer requirements
- Frequency: 50Hz or 60Hz
90kVA Generator Set Technical Datasheets:
| 90kVA Diesel Generator Set Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG99DES | BF4M2012C G2 | TAL-A44-D | DEIF SGC-420 | 90kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Deutz 90kVA Diesel Generator Set | |||||
| Engine Model | BF4M2012C G2 DEUTZ | ||||
| Alternator Mode | TAL-A44-D LEROY SOMER | ||||
| Rated Output | 90kVA / 72kW | ||||
| Standby Output | 99kVA / 79kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 240 / 415V | ||||
| Rated Current | 125.2A | ||||
| Breaker | 160A Aisikai Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 70dB(A) | ||||
| Net Weight | 1950KGS | ||||
| Genset size | L2700 * W1400 * H1600mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Deutz 90kVA Diesel Generator Set | |||||
| Manufacture | DEUTZ JIEFANG | ||||
| Model | BF4M2012C G2 | ||||
| Rated Output/Speed | 85KW/1500RPM | ||||
| Standby Output/Speed | 93KW/1500RPM | ||||
| Aspiration | Turbocharged & CAC | ||||
| Speed Governor | Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 101*126mm | ||||
| Displacement | 4.04 L | ||||
| Compression ratio | 18.1:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 21.3 L / h | ||||
| Fuel Consumption/standby output | 23 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Deutz 90kVA Diesel Generator Set | |||||
| Alternator Model | TAL-A44-D | ||||
| Manufacture | Leroy Somer | ||||
| Rate Output | 80kW | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of onshore diesel generator set | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Options:
- Automatic Transfer Switch (ATS): Enables automatic switching between the generator and the main power supply, providing seamless backup power during outages.
- External Fuel Tank: Additional fuel storage capacity for extended runtime.
- Remote Monitoring System: Allows remote monitoring and control of the generator set through a user-friendly interface.
Generator Set Usage:
- Construction Sites: Our Silent Type Diesel Generator Set is an ideal power solution for construction sites where a reliable and portable power source is required to operate various tools, machinery, and equipment.
- Residential Areas: With its silent operation and low noise levels, our generator set is suitable for providing backup power in residential areas during electrical outages, ensuring the continuous operation of essential appliances and systems.
- Hospitals and Healthcare Facilities: Uninterrupted power supply is critical for hospitals and healthcare facilities. Our generator set offers a reliable backup power source, ensuring the smooth functioning of medical equipment, life support systems, and essential services during power disruptions.
- Outdoor Events and Entertainment: Our silent generator set is perfect for powering outdoor events, concerts, festivals, and other entertainment venues. Its quiet operation minimizes noise pollution, providing a pleasant experience for attendees and performers.
FAQ (Frequently Asked Questions):
Q1: What is the fuel consumption of the generator set?
A1: The fuel consumption varies depending on the load and operating conditions. However, our generator set is designed for optimal fuel efficiency, ensuring cost-effective operation.
Q2: Can the generator set be customized to meet specific voltage and frequency requirements?
A2: Yes, our generator set can be customized to meet various voltage and frequency requirements based on your specific needs.
Q3: Is installation support provided with the generator set?
A3: Yes, we provide installation guidance and technical support to ensure a smooth setup process.
Q4: What is the warranty period for the generator set?
A4: We offer a standard warranty period of XX months/years. Extended warranty options are also available.
Experience reliable and efficient power generation with our Silent Type Diesel Generator Set. Contact our dedicated customer service team for inquiries, customization options, and expert assistance. Invest in a dependable power solution that will meet your needs and exceed your expectations.
