Open Frame Deutz Genset 53kW Water Cooled With DC Start Battery
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE |
| Model Number | TG66DE |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C, D/A, D/P |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open Frame | Engine Brand | Deutz BF4M2012 |
|---|---|---|---|
| Alternator Brand | Stamford UCI 224E | Prime Power | 60kVA / 48kW |
| Max Power | 66kVA / 53kW | Output Type | AC Three Phase |
| Specification | 53kVA Deutz Diesel Generators | Usage | Common Units, Standby Unit, Emergency Crew |
| Highlight | Open frame deutz genset,DC Start Battery deutz genset,53kW deutz diesel generator |
||
Product Description

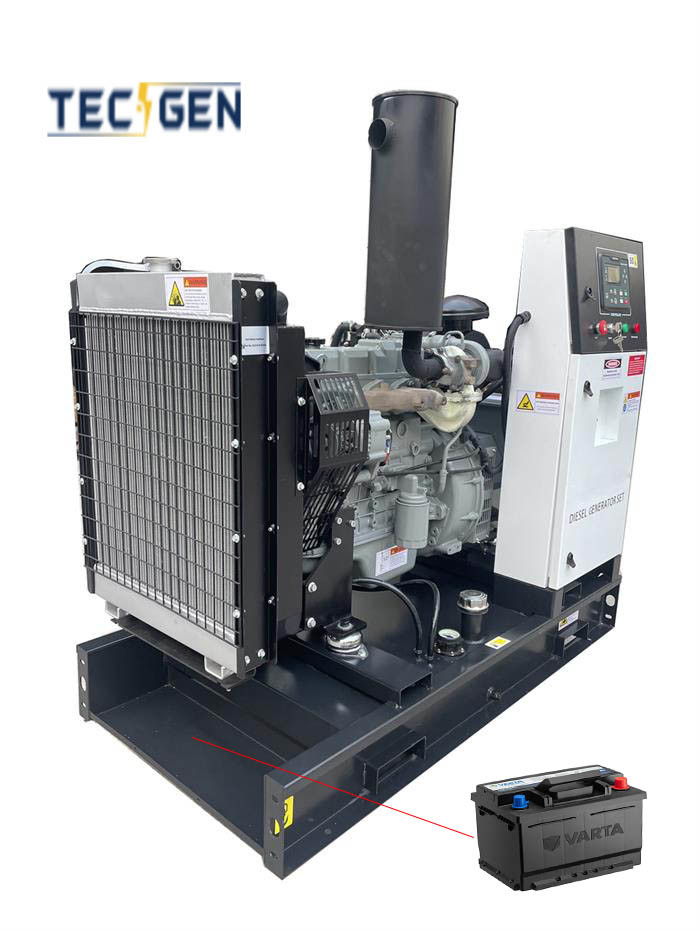

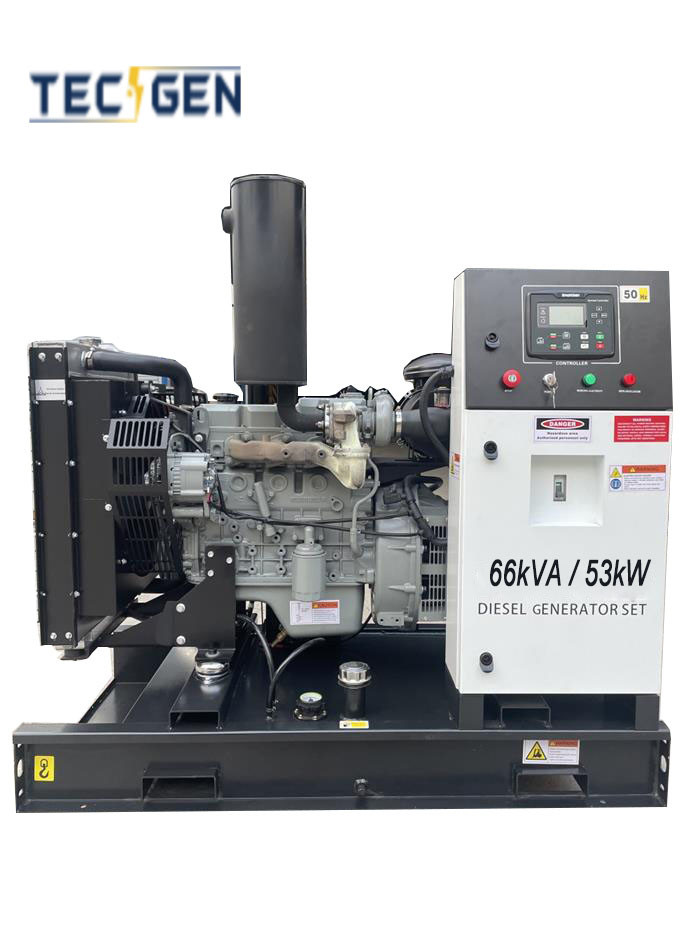

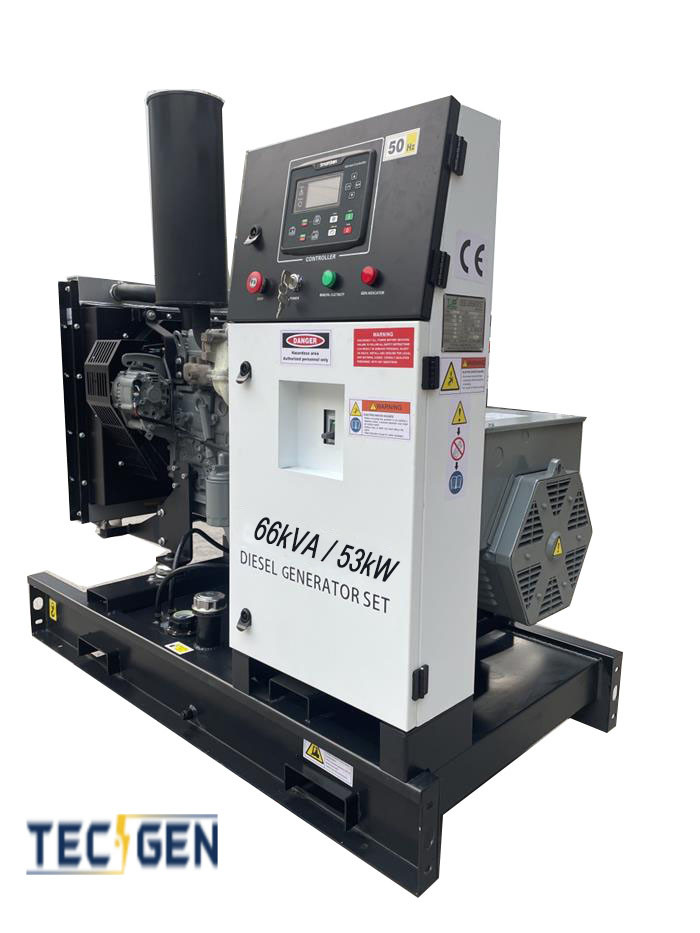

Open frame generator 53kW Deutz diesel generator with DC start battery
Standard Features of 53kW Deutz Diesel Generators (Genset model: TG66DE):
- Power Output: Standby power of 66kVA / 53kW, Prime power of 60kVA / 48kW.
- Diesel Engine: Equipped with a reliable BF4M2012 Deutz diesel engine.
- Alternator: Options available from reputable brands such as Stamford, Leroy Somer, and Mecc Alte.
- Controller: DEIF controller included as standard, with options for ComAp, Deepsea, and Smartgen.
- Breaker: Standard breaker options from DELIXI & CHINT, with the option for ABB breakers.
- ATS: AISIKAI Automatic Transfer Switch for seamless power transfer.
- Type: Available in various configurations to suit different needs - Weatherproof, Soundproof, Canopy, Silent, Enclosure, Cabin, Trailer, and Mobile.
- Radiator: Equipped with a high-quality copper material radiator, designed for efficient cooling based on ambient temperature (40 degrees or 50 degrees).
- Alternator: Features AVR (Automatic Voltage Regulator) and IP23 protection rating, with options for operating at 27 degrees or 40 degrees based on ambient temperature.
- Battery Charger: Smartgen brand battery charger (10A) included for standby applications. Not required for continuous or daily use.
- Battery: Maintenance-free VARTA brand battery included, consisting of 2 pieces of 12V80Ah batteries.
53kW Deutz Diesel Genereator Datasheets:
| 53kW Deutz Diesel Generators Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG66DE | BF4M2012 | UCI 224E | DEIF SGC-420 | 53kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of 53kW Deutz Diesel Generators | |||||
| Engine Model | BF4M2012 DEUTZ | ||||
| Alternator Mode | UCI 224E Stamford | ||||
| Rated Output | 60kVA / 48kW | ||||
| Standby Output | 66kVA / 53kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 220 / 380V | ||||
| Rated Current | 91.2A | ||||
| Breaker | 100A Aisikai Breaker | ||||
| ATS | 100A Built-in ATS | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 70dB(A) | ||||
| Net Weight | 980KGS | ||||
| Genset size | L1860 * W900 * H1300mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 53kW Deutz Diesel Generators | |||||
| Manufacture | DEUTZ JIEFANG | ||||
| Model | BF4M2012 | ||||
| Rated Output/Speed | 54KW/1500RPM | ||||
| Standby Output/Speed | 60KW/1500RPM | ||||
| Aspiration | Turbocharged | ||||
| Speed Governor | Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 101*121mm | ||||
| Displacement | 4.04 L | ||||
| Compression ratio | 18.4:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 16.9 L / h | ||||
| Fuel Consumption/standby output | 17.8 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 53kW Deutz Diesel Generators | |||||
| Alternator Model | UCI 224E | ||||
| Manufacture | Stamford | ||||
| Rate Output | 48kW | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of 53kW Deutz Diesel Generators | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
53kW Deutz Diesel Generators
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice
FAQ (Frequently Asked Questions):
Q1: What is the fuel consumption of the generator set?
A1: The fuel consumption varies depending on the load and operating conditions. Our generator set is designed for optimal fuel efficiency, ensuring cost-effective operation.
Q2: Can the generator set be customized to meet specific voltage and frequency requirements?
A2: Yes, our generator set can be customized to meet various voltage and frequency requirements based on your specific needs.
Q3: Does the generator set come with a warranty?
A3: Yes, we provide 18 months or 1500 running hours as a standard warranty period for our generator set.
Q4: Can I monitor the generator set remotely?
A4: Yes, we offer a remote monitoring system that allows you to monitor and control the generator set from a distance, ensuring convenience and peace of mind. DEIF SGC-420 controller has the functions of remote monitorings.
