Chinese Diesel Generator 94kVA Weifang Ricardo Diesel Engine Generator Set Soundproof
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Weifang Ricardo Generator | Engine Model | R6105ZD |
|---|---|---|---|
| Alternator | TGI274S75 | Rate Speed | 1500rpm / 50Hz |
| Rate Power | 94kVA / 75kW | Standby Powewr | 103kVA / 83kW |
| Breaker | CHNT MCCB Breaker | Discounts | 5% With Full Container QTY |
| Highlight | soundproof Weifang Ricardo generator,94kVA Weifang Ricardo generator,Chinese Weifang Ricardo generator |
||
Product Description

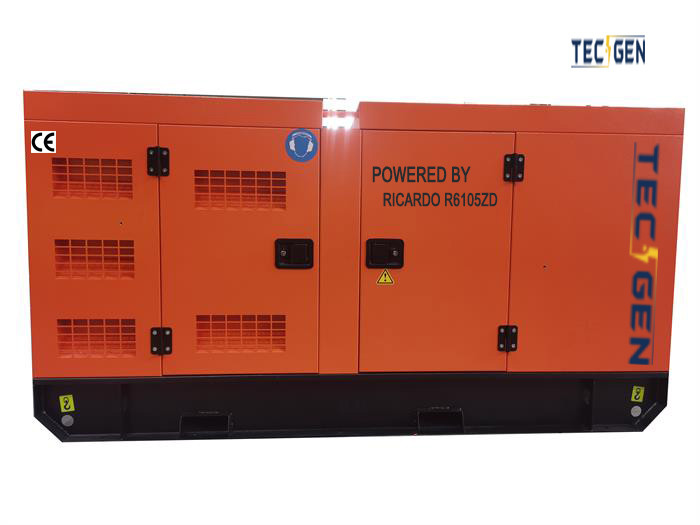

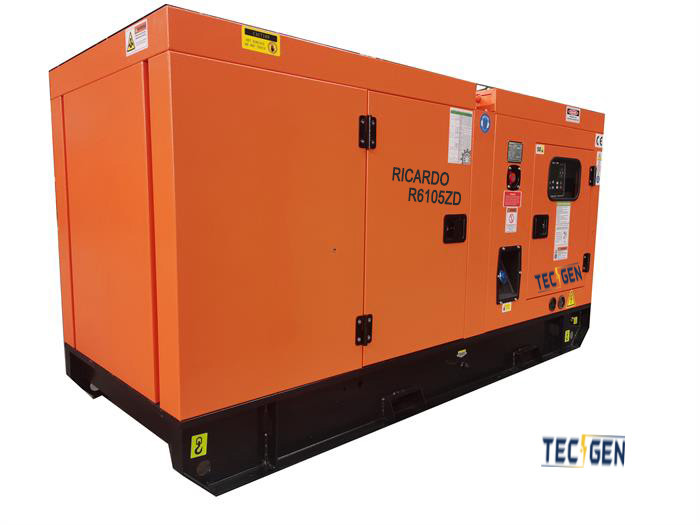

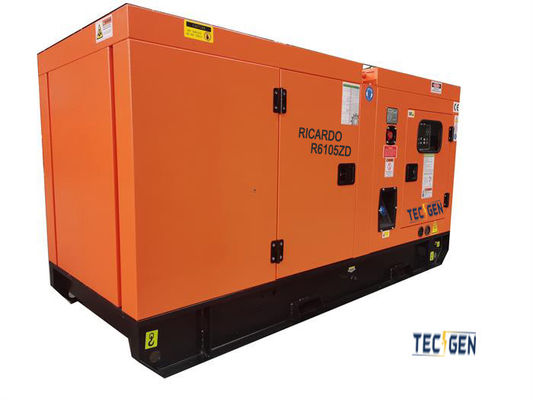

Chinese diesel generator 94kVA Weifang Ricardo diesel engine generator set soundproof
Product Description:
Introducing the 94kVA Weifang Ricardo Silent Diesel Generator Set, a powerful and efficient power solution designed for a wide range of applications. Operating at 50Hz with an output of 240/415V, it offers reliable performance and exceptional value.
Key Features:
- Powerful Performance: With a prime power rating of 75kW/94kVA and a standby power rating of 83kW/103kVA, it handles heavy loads with ease.
- Silent Operation: Engineered for minimal noise output, making it suitable for outdoor use in noise-sensitive environments.

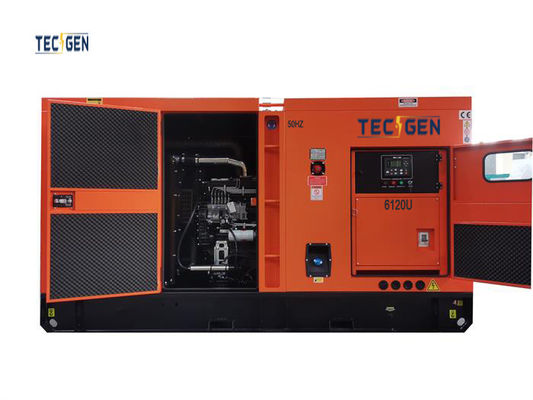

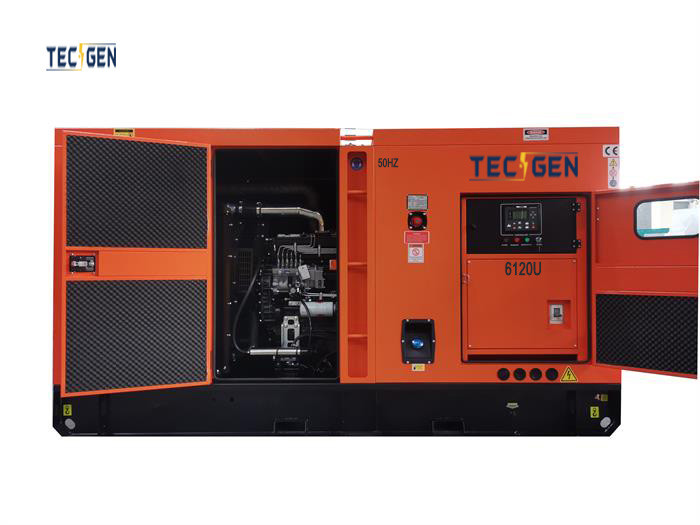

- Advanced Controller: Equipped with a Tecgen 6120U controller for precise and reliable generator control.
Standard Features:
- Robust Engine: Powered by the reliable R6105ZD engine, ensuring smooth and consistent performance.
- High-Quality Generator: Featuring the TGI274S75 generator from a trusted Chinese motor brand, delivering dependable power output.
- Easy Operation: Available with mechanical or electronic speed control for precise adjustment of generator speed.
- Durable Components: Includes a 50-degree water tank, 24V maintenance-free lead-acid battery, battery rack, and an 8-hour running fuel tank.
94kVA Weifang Ricardo Diesel Engine Genset Specifications:
| Technical Parameter for Weifang Ricardo Diesel Generator | Genset Model | TG103NS |
| Prime Power | 75kW/94kVA | |
| Standby Power | 83kW/103kVA | |
| Frequency | 50Hz | |
| Rated Voltage | 240/415V | |
| Power Factor | 0.8 | |
| Governor | MECH OR ELECTRIC | |
| Noise level (7m) | 72db(A) | |
| Engine Brand | Ricardo | |
| Engine Model | R6105ZD | |
| Alternator Brand | Copy Stamford | |
| Alternator Brand | TGI274S75 | |
| Dimension | Open: L2050 x W1000 x H1400mm | |
| Silent: L2950 x W11800 x H1650 | ||
| Fuel Tank Capacity | 160L | |
| Engine General Data | Engine Brand | Ricardo |
| Engine Model | R6105ZD | |
| Rated Output | 84kW | |
| Rated Speed | 1500rpm | |
| Number of Cylinders | 6 | |
| Cylinder arrangement | In-line | |
| Displacement (L) | 6.49 | |
| Aspiration | Turbocharged | |
| Bore×Stroke (mm×mm) | 105x125 | |
| Compression Ratio | 16:1 | |
| Cooling | Forced Water Cooled | |
| Fuel Consumption at 100% load(L/H) | 20 | |
| Alternator Data | Model | TGI274S75 |
| Brand | Copy Stamford | |
| Rate Output | 94kVA | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | Tecgen |
| Model | 6120U | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Circuit breaker | Delixi Brand 160A Breaker | |
| Auto Transfer Switch | 160A ATS | |
| Genset Options | Output Socket | |
| Integrated Fuel Tank | ||
| Trailer & Silent Canopy for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
Options:
- ATS (Automatic Transfer Switch): For seamless power transition during power outages.
- Built-In Fuel Tank: Convenient storage for extended operation.
- Oil-Water Separator: Improving fuel efficiency and extending engine lifespan.
- Output Switch: For easy control of power output.
- 3000-Hour Spare Parts Kit: Ensuring uninterrupted operation with timely replacements.
FAQ
Q: What is the standby power rating of this generator set?
A: The standby power rating is 83kW/103kVA.
Q: Does this generator set come with a controller?
A: Yes, it is equipped with a Tecgen 6120U controller for precise and reliable generator control.
Q: Can I add an ATS to this generator set?
A: Yes, an ATS is an optional extra that can be added to this generator set for seamless power transition.
