90kW Diesel Generator 113kVA Deutz Diesel Generator Set Silent Type With Built-in ATS
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type Of Unit | Silent | Frequency | 50Hz |
|---|---|---|---|
| Rate Speed | 1500rpm | Voltage | 240/415V |
| Noise Level (7m) | 70db(A) | Engine | Deutz BF4M1013EC G2 |
| Alternator | Stamford UCI 274D | Prime Genset Output | 90kW/113kVA |
| Highlight | built-in ATS 90kW diesel generator,silent 90kW diesel generator,113kVA 90kW diesel generator |
||
Product Description
90kW Diesel generator 113kVA deutz diesel generator set silent type with built-in ATS
Product Description
Introducing the 113kVA Deutz Silent Diesel Generator Set, a robust and reliable power solution for your industrial and commercial needs. With its triple-phase output, 50Hz frequency, and 240/415V voltage, it ensures smooth and efficient power delivery.
Key Features
- Powerful Performance: Delivering a prime power of 90kW/113kVA and a standby power of 99kW/124kVA, it handles heavy loads with ease.
- Silent Operation: Specially designed for outdoor use, its silent features minimize noise output, making it suitable for noise-sensitive environments.
- Advanced Controller: Equipped with a DEIF SGC-420 controller, it offers precise and reliable generator control.
Standard Features
- Efficient Engine: Powered by the BF4M1013EC G2 engine, it ensures smooth and consistent performance.
- High-Quality Generator: The Stamford UCI 274D generator ensures dependable power output.
- Electronic Speed Control: For precise adjustment of generator speed.
- Durable Components: Includes a 50-degree water tank, 24V maintenance-free lead-acid battery, battery rack, and an 8-hour running fuel tank.
90kW Deutz Diesel Genset Technical Specifications:
| Technical Parameter for Deutz Diesel Generator | Genset Model | TG124DES |
| Prime Power | 90kW/113kVA | |
| Standby Power | 99kW/124kVA | |
| Frequency | 50Hz | |
| Rated Voltage | 240/415V | |
| Power Factor | 0.8 | |
| Governor | Electric | |
| Noise level (7m) | 70db(A) | |
| Engine Brand | Deutz | |
| Engine Model | BF4M1013EC G2 | |
| Alternator Brand | Stamford | |
| Alternator model | UCI 274D | |
| Dimension | Open: L2200 x W900 x H1200mm | |
| Silent: L3000 x W1100 x H1500 | ||
| Fuel Tank Capacity | 190L | |
| Deutz Engine General Data | Engine Brand | Deutz |
| Engine Model | BF4M1013EC G2 | |
| Rated Output | 97kW | |
| Rated Speed | 1500rpm | |
| Number of Cylinders | 4 | |
| Cylinder arrangement | In-line | |
| Displacement (L) | 4.76 | |
| Aspiration | Turbocharged & CAC | |
| Bore×Stroke (mm×mm) | 108x130 | |
| Compression Ratio | 19:1 | |
| Cooling | Forced Water Cooled | |
| Fuel Consumption at 100% load(L/H) | 23.8 | |
| Stamford Alternator Data | Model | UCI 274D |
| Brand | Stamford | |
| Rate Output | 91.2kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | DEEPSEA |
| Model | DSE6120 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS & RS485 Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Circuit breaker | Delixi Brand 2000A Breaker | |
| Auto Transfer Switch | 2000A ATS Cabinet | |
| Deutz Genset Options | Output Socket | |
| Integrated Fuel Tank Canopy for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
Options

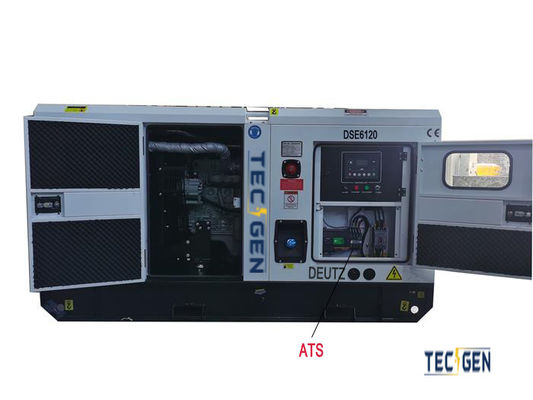

- ATS (Automatic Transfer Switch): For seamless power transition during power outages.
- Built-In Fuel Tank: Convenient storage for extended operation.
- Water Jacket Heater: Ensures efficient engine start-up in cold conditions.
- Oil-Water Separator: Improving fuel efficiency and extending engine lifespan.
- Output Switch: For easy control of power output.
- 3000-Hour Spare Parts Kit: Ensuring uninterrupted operation with timely replacements.
FAQ?
Q: What is the standby power rating of this generator set?
A: The standby power rating is 99kW/124kVA.
Q: Does this generator set come with a controller?
A: Yes, it is equipped with a DEIF SGC-420 controller for precise and reliable generator control.
Q: Can I add a water jacket heater to this generator set?
A: Yes, a water jacket heater is an optional extra that can be added for efficient engine start-up in cold conditions.
