Chinese Diesel Generators 60kVA FAWDE Generator With 160A Wall-mounted ATS Box
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG66FWSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 20 Days |
| Payment Terms | T/T, L/C, D/A, D/P |
| Supply Ability | 500 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent Canopy | Output Type | AC Three Phase |
|---|---|---|---|
| Genset Output | 220V / 240V / 277V / 480V | Engine Brand | FAWDE |
| Alternator | Leroy Somer Brushless, Self Exciting | Governing Type | Mech Or Electric |
| Prime Output | 48kW / 60kVA | ATS | 160A Wall-mounted ATS Box |
| Highlight | 160A Chinese diesel generators,60kVA Chinese diesel generators,FAWDE Chinese diesel generators |
||
Product Description

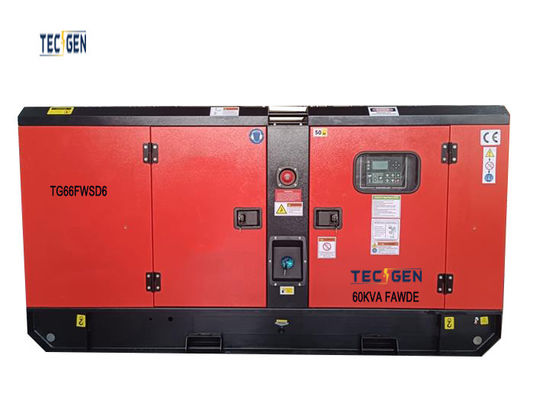

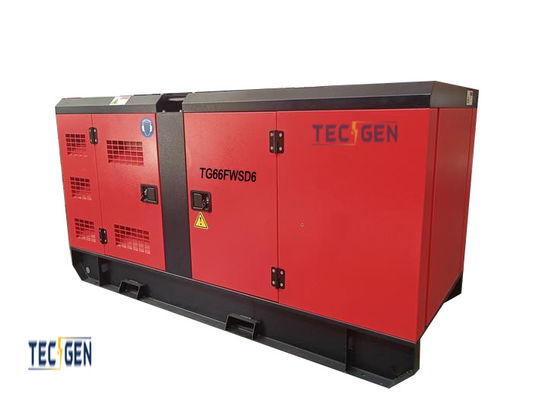

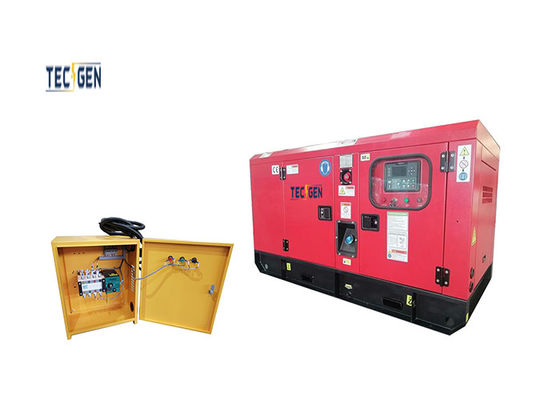

Chinese diesel generators 60kVA FAWDE generator with 160A Wall-mounted ATS Box
Introducing the robust 48kW FAWDE Generator, a powerhouse designed to meet your varying energy needs. With its impressive specifications, this generator is a must-have for commercial, industrial, and construction applications.
Standard Features
- Powerful Engine: Equipped with a FAWDE 4DX23-82D-YFD10W, 4-cylinder, 4-stroke turbocharged and intercooled engine.
- Efficient Generator: Leroy Somer TAL-A42-H generator ensures stable and reliable power output.
- Intelligent Control: Comes with a ComAp AMF 9 controller for precise and responsive speed control.
Key Features
- Robust Construction: Built to last, with industrial-grade components that ensure long-term durability.
- Versatile Options: Choose from a range of configurations, including open-frame, soundproof, ultra-soundproof, and trailer-mounted models.
- Flexible Power Output: With a rated power of 48kW/60kVA and a standby power of 53kW/66kVA, it can handle varying loads with ease.
60kVA FAWDE Generator General Datasheets:
| Technical Specification: | ||
| 60kVA FAWDE Generator Specification | ||
| Genset Model | TG66FWD6 | TG66FWSD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Rate Speed | 1800RPM | |
| Voltage | 240V | |
| Phase | 3 Phase, 4 or 12 Wires | |
| Rate Current | 144.3A | |
| Prime Power | 48kW / 60kVA | |
| Standby Power | 53kW / 66kVA | |
| Engine Model | FAWDE 4DX23-82D-YFD10W | |
| Alternator Model | Leroy Somer TAL-A42-H | |
| Controller | ComAp AMF9 | |
| Noise Level | 65 dB(A) @ 7m | |
| FAWDE Generator Weight & Dimensions | ||
| Length (mm) | 1750 | 2150 |
| Width (mm) | 870 | 1050 |
| Height (mm) | 1360 | 1500 |
| Weight (kgs) | 1000 | 1400 |
| FAWDE Engine Specifications | ||
| Brand | FAWDE | |
| Engine Model | 4DX23-82D-YFD10W | |
| Standby power | 66kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged & Inter-cooled | |
| No. of cylinders | 4 | |
| Speed | 1800RPM | |
| Bore of Stroke (mm) | 102 x 118 | |
| Displacement (L) | 3.86 | |
| Cooling | Water Cooled | |
| Compression Ratio | 17:1 | |
| Engine Oil capacity (L) | 29 | |
| Coolant Capacity ( In radiator) | 29 | |
| Governor | MECH or Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 60Hz | |
| 100% Load (L/h) | 13.7 | |
| 75% Load (L/h) | 10.3 | |
| 50% Load (L/h) | 6.8 | |
| 25% Load (L/h) | 3.4 | |
| Leroy Somer Alternator Specification | ||
| Brand | Leroy Somer | |
| Model | TAL-A42-H | |
| Rate Output | 50kW | |
| Speed | 1800RPM | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| ComAp Controller System | ||
| Brand | ComAp | |
| Model | AMF9 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| CANBUS & MPU VERSION | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Usage
Ideal for use in construction sites, factories, hospitals, and other critical applications where reliable power is paramount.
Optional Configurations
- ATS Boxes: Choose from built-in or wall-mounted ATS boxes for seamless power switching.
- Extended Features: Enhance your generator with features like a large fuel tank, remote monitoring, and more.
Advantages
- High Efficiency: Optimized design ensures maximum fuel efficiency and lower operating costs.
- Easy Maintenance: 24V maintenance-free lead-acid battery, battery rack, and Delixi circuit breaker make maintenance a breeze.
- Comprehensive Warranty: Enjoy peace of mind with our 18-month or 1500-hour after-sales service guarantee.
FAQ
- Can I customize the generator to my specific needs? Yes, we offer a wide range of customization options to suit your unique requirements.
- What is the factory's annual production capacity? Our factory has a capacity to produce 5000 units annually, ensuring timely delivery and scalability.
With its robust construction, impressive power output, and flexible customization options, the FAWDE Diesel Generator is the ultimate choice for reliable and efficient power generation. Contact us today to learn more about this powerful machine and how it can power your critical applications.
All stand machine can install wheel. It depends on your requirements. If we done this, the machine can move around easily.
