FAWDE Diesel Generator 41kVA Chinese Diesel Engine Generator With Brushless Alternator

FAWDE diesel generator 41kVA Chinese diesel engine generator with brushless alternator

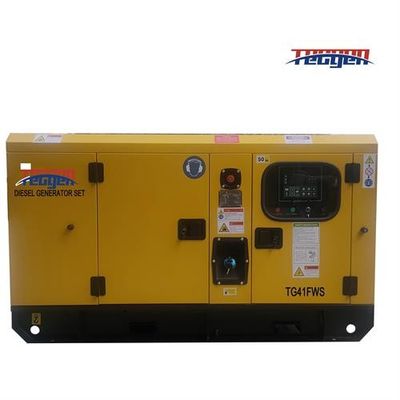

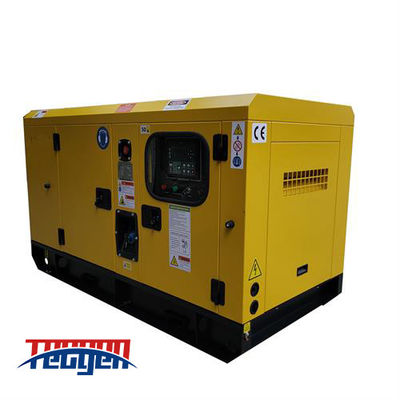

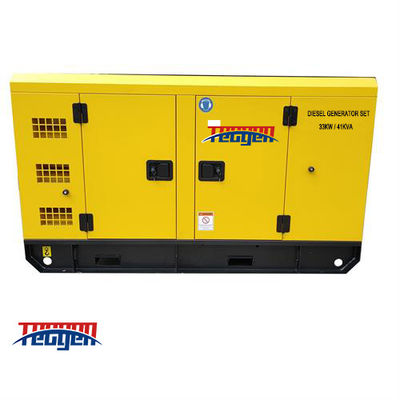

Introducing our FAWDE TG41FWS Chinese Diesel Generator, a reliable and high-performance power solution for various applications. This generator offers exceptional features and is optimized for silent operation.

Key details:

1. Genset Model: TG41FWS
2. Genset Type: Silent / Super Silent
3. Rated Voltage: 440V//415V/400V/380V/230V/220V/110V
4. Frequency: 50Hz
5. Speed: 1500rpm
6. Output Type: AC Three Phase
7. Power Factor (P.F.): 0.8
8. Prime Output Current: 54.8A
9. Prime Power: 30kW / 38kVA
10. Standby Power: 33kW / 41kVA

41kVA FAWDE Diesel Generator Specifications:

Key Components:

• Diesel Engine:
•
  • Brand: FAWDE
  • Model: 4DX22-50D-YFD10W
  • Number of Cylinders: 4 Cylinder in Line
  • Cycle: 4-stroke
  • Aspiration: Turbocharged
  • Displacement: 3.86L
  • Compression Ratio: 17:1
  • Bore×Stroke: 102*118mm
  • Speed: 1500rpm
  • Prime Power: 37kW
  • Standby Power: 41kW
•
• AC Alternator:
•
  • Brand: Tecgen Power
  • Model: TGI184S30
  • Frequency/Speed: 50Hz/1500rpm
  • Rated Output: 30kW
  • No. of Phase: 3 Phase, 4 Wire
  • Exciter Type: Single bearing, Brushless, Self-excited with AVR
  • Power Factor: 0.8
  • Insulation Grade: H
  • Protection Grade: IP23
  • Working Condition: Below 1000m
  • Bearing: Single
  • Coupling: Direct
  • Voltage Adjust Range: ≥5%
  • Voltage Regulation NL-FL: ≤±1%
•
• Genset Controller:
• • Brand: DEIF
  • Model: SGC-420
  • Functions: Auto Mains (Utility) Failure, Static with auto. battery charger, Emergency stop push button, ATS & RS485 Connection, CAN Functions

Other Specifications:

• Genset Weight: 950kgs
• Genset Dimensions: L2300 * W 1000 * 1200
• Fuel Tank Capacity: 8 running hours

Our FAWDE TG41FWS Chinese Diesel Generator stands out as a reliable and efficient power solution. With its advanced features and robust components, it ensures a continuous power supply in various settings. Experience the excellence of FAWDE Generator technology for your power needs.
