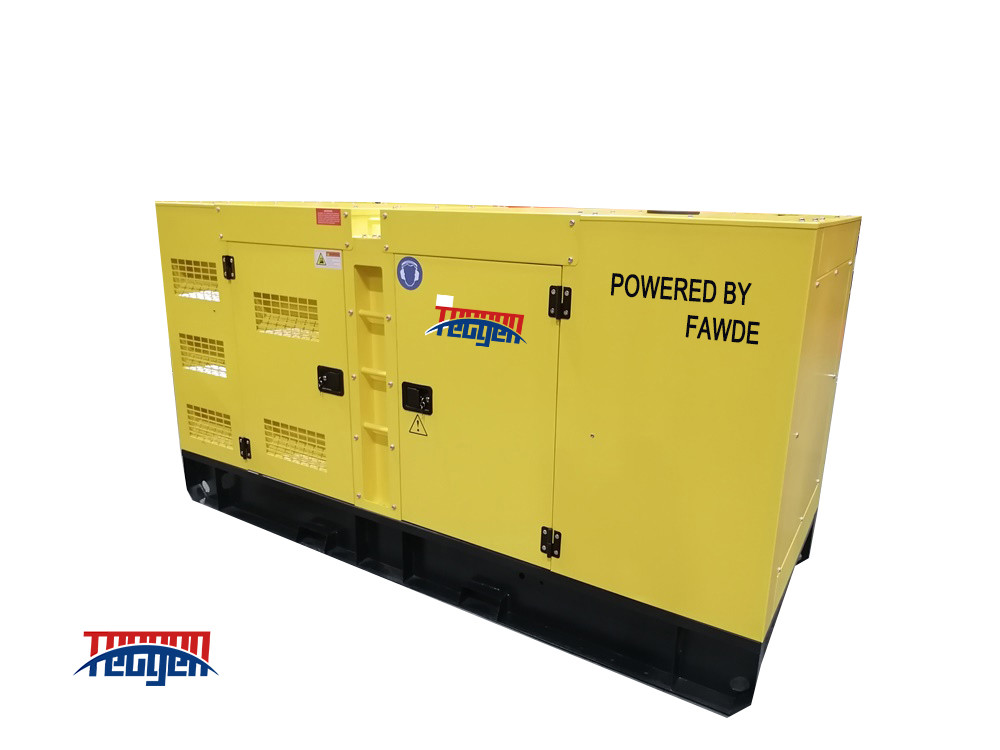

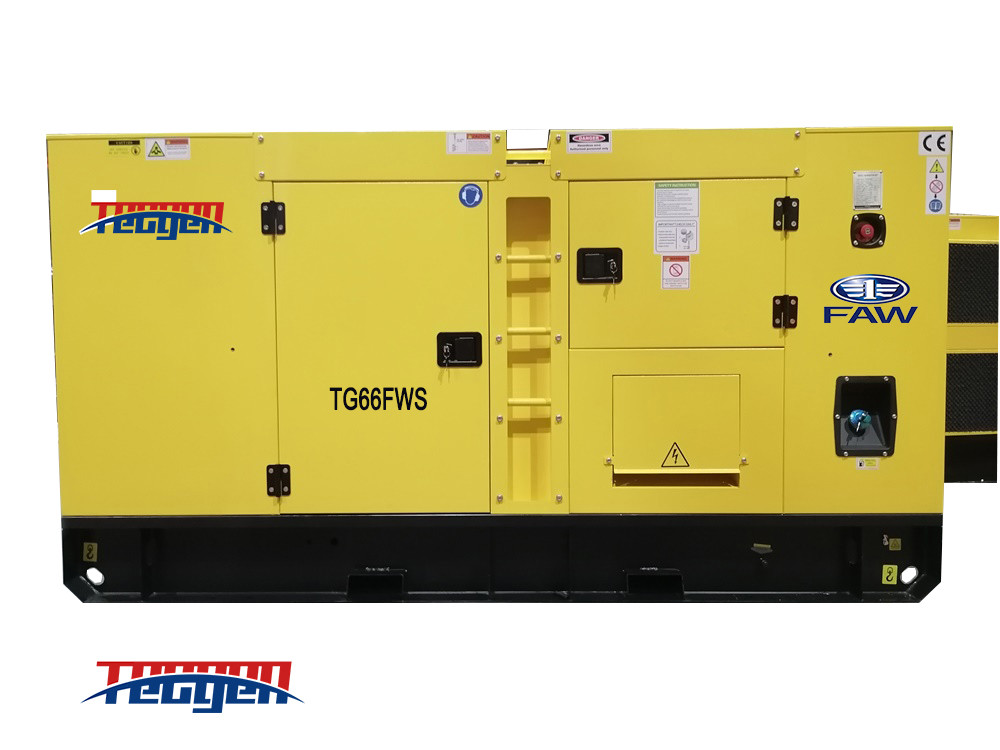

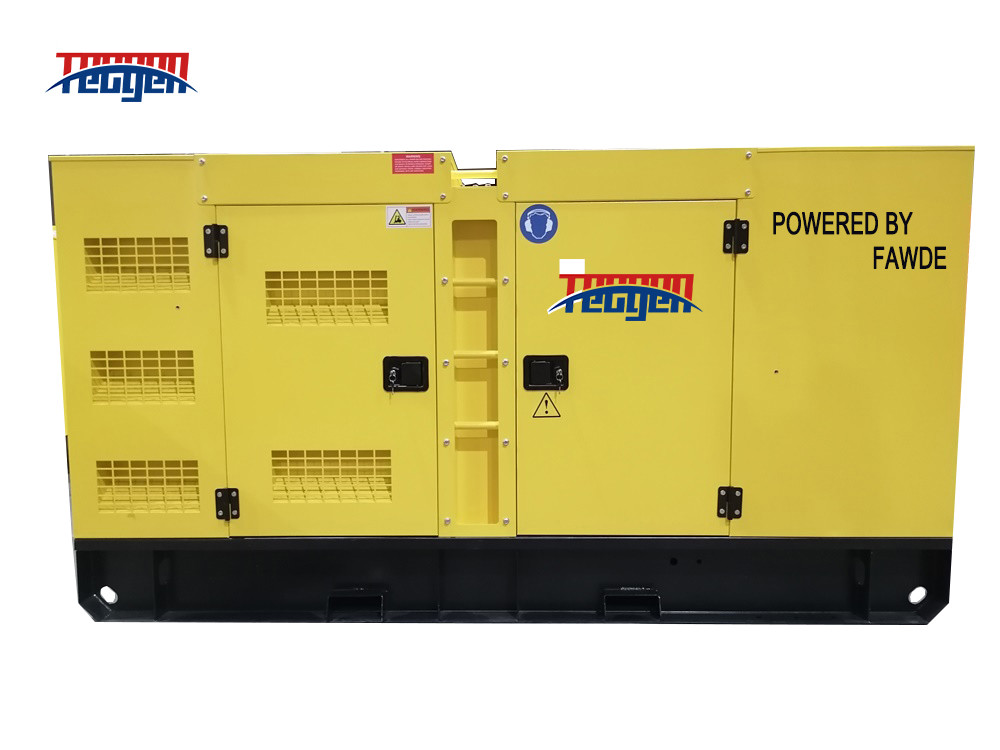

Fawde Diesel Generator 60kVA Silent 3 Phase Generator With Soundproof Canopy
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG66FWS |
| Minimum Order Quantity | One Set |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 20 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Silent Generator Set | Usage | Back-up Power |
|---|---|---|---|
| Engine | FAWDE 4DX23-78D-HMS20W | Alternator | Stamford UCI 224E |
| Speed | 1500rpm | Rate Power | 60kVA |
| Standby Power | 66kVA | Color | RAL Standard Or Customed |
| Highlight | soundproof canopy Fawde diesel generator,silent Fawde diesel generator,3 phase Fawde diesel generator |
||
Product Description
Fawde diesel generator 60kVA silent 3 phase generator with soundproof canopy
Product Description for FAWDE Diesel Generators
Key Features:
- Silent operation with low noise emission, ideal for noise-sensitive environments.
- Three-phase output for balanced power supply in industrial applications.
- High-efficiency diesel engine for optimal power output and low fuel consumption.
- Sturdy and durable design, ensuring reliable backup power supply.
Standard Features:
- 4DX23-78D-HMS20W diesel engine for powerful and efficient performance.
- Stamford UCI 224E AC alternator for stable and reliable power output.
- DEIF SGC-420 controller with auto mains failure detection and multiple protection functions.
- IP23 protection grade for enhanced safety and durability.
60kVA FAWDE Diesel Generators Parameters:
| FAWDE Diesel Generator Technical Datasheets | ||||||
| Genset model | TG66FWS | |||||
| Genset Type | Silent / Super Silent | |||||
| Rated Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
| Frequency | 50Hz | |||||
| Speed | 1500rpm | |||||
| Output Type | AC Three Phase | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 83.5A | |||||
| Prime Power | 48kW / 60kVA | |||||
| Standby Power | 53kW / 66kVA | |||||
| Diesel Engine | Brand | FAWDE | ||||
| Model | 4DX23-78D-HMS20W | |||||
| AC Alternator | Brand | Stamford | ||||
| Model | UCI 224E | |||||
| Genset Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Genset Weight | 1350kgs | |||||
| Genset Dimensions | L2450 * W 1050 * 1400 | |||||
| Fuel Tank Capacity | 8 running hours | |||||
| FAWDE Diesel Engine Data | ||||||
| Brand | FAWDE | |||||
| Engine Model | 4DX23-78D-HMS20W | |||||
| Number of Cylinders | 6 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Turbocharged | |||||
| Displacement | 3.86L | |||||
| Compression ratio | 17:1 | |||||
| Bore×Stroke | 102*118mm | |||||
| Speed | 1500rpm | |||||
| Prime Power | 57kW | |||||
| Standby Power | 63kW | |||||
| Speed Governor | MECH or Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 215g/kwh@1500rpm | |||||
| AC Alternator Data | ||||||
| Brand | Stamford | |||||
| Model | UCI 224E | |||||
| Frequency/speed | 50HZ/1500RPM | |||||
| Rate Output | 48kW | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| Genset Controller System | ||||||
| Controller System | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Functions | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Set Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 8kW ~ 2400kW | Cummins / Perkins / Deutz / Weichai / Yuchai / SDEC / Mitsubishi / Doosan / Wudong / Baudouin |
Leroy Somer / Stamford / Mecc Alte / Tecgen
|
DEIF | Open/Silent | ||
| 7kW ~ 320kW | Yangdong / FAWDE / Quanchai / YTO | Tecgen | Smartgen | |||
| 11kW ~ 104kW | Beinei Aircooled | Tecgen | ||||
| 10kW ~ 300kW | Weifang Ricardo | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
The FAWDE Diesel Generators are suitable for a wide range of industrial applications, including factories, hospitals, data centers, and other critical facilities that require reliable backup power.
Options:
- Customizable power output ranges to meet specific requirements.
- Multiple diesel engine and alternator brands available for choice.
- Open or silent enclosure options for different noise level requirements.
Warranty:
Our FAWDE Diesel Generators come with a comprehensive warranty of 18 months or 1500 hours, whichever comes first. This warranty covers manufacturing defects and component failures, ensuring your peace of mind and continued operation.
With its silent operation, three-phase output, and reliable performance, the FAWDE Diesel Generators are the perfect choice for your power generation needs. Contact us today to learn more and find the perfect generator set for your application.
