Single Cylinder Portable Silent Generator Super Silent Diesel Generator 5.5kW Air Cooled
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Super Silent | Cooling | Air Cooled |
|---|---|---|---|
| Engine Model | 190FDE | Displacement | 480cc |
| Bore*stroke | 90*75mm | Phase | 1 Phase / 3 Phase |
| DC Output（V/A | 12/8.3 | Genset Output | 5.5kW |
| Highlight | 5.5kW super silent diesel generator,Single cylinder super silent diesel generator,Air Cooled super silent diesel generator |
||
Product Description

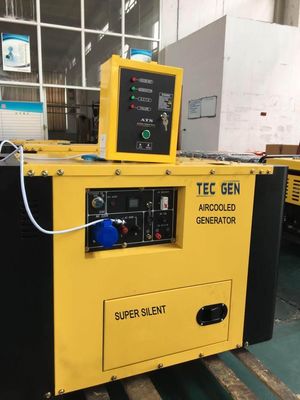

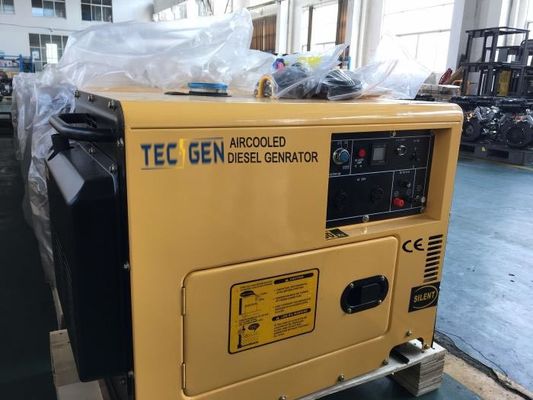

Single cylinder portable silent generator super silent diesel generator 5.5kW aircooled
Product Description: Super Silent Diesel Generator with Single Cylinder Portable Design
Standard Features:
Our super silent diesel generator, equipped with a single cylinder engine, offers a reliable and efficient power solution. With a rated output of 5.5kW and a maximum output of 6kW, it provides ample power for a variety of applications. The generator runs smoothly and quietly, making it an ideal choice for noise-sensitive environments.
Key Features:
- Single Cylinder Engine: The generator is powered by a single cylinder diesel engine, which ensures smooth and efficient operation.
- Portable Design: Lightweight and compact, the generator is easy to transport and can be quickly deployed wherever power is needed.
- Super Silent Operation: With advanced noise reduction technology, the generator operates at ultra-low noise levels, providing a peaceful working environment.
Cylinder Portable Silent Generator Specifications:
| 5.5KW Aircooled Portable Silent Generator Specifications | |||
| GENERATOR | Model | TDG7500L | |
| Frequency(Hz) | 50 | 60 | |
| Rated output (kW) | 5.5 | 6 | |
| Max output (kW) | 6 | 6.5 | |
| Rated AC voltage(V) | 110,120,220,230,127/220,120/240,220/380,230/400 | ||
| Power factor(cosΦ) | 1/0.8 | ||
| DC output(V/A) | 12/8.3 | ||
| Phase | Single OR Three | ||
| Alternator type | Self-excited | ||
| Starting system | Recoil type hand starting | ||
| Noise level(at 7m)(dB) | 75-77 | ||
| Fuel tank capacity(L) | 15 | ||
| electrical machinery(D*L) | 190*150 | ||
| ENGINE | Model | 190FDE | |
| Engine type | Single-Cylinder,Vertical 4-Cycle,Air-cooled diesel | ||
| Bore*stroke(mm) | 90*75 | ||
| Displacement capacity(CC) | 480 | ||
| Fuel | 0# or-10# light diesel oil | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct injection | ||
| DIMENSIONS | PACKING Dimension(L*W*H)(mm) | 930*540*780 | |
| Gross weight(KG) | 150 | ||
| 20FT | 72 | ||
| 40HQ | 150 | ||
Usage:
The super silent diesel generator is suitable for a wide range of uses, including construction sites, outdoor events, emergency power backup, and more. Its portability and silent operation make it a convenient and reliable power source for various scenarios.
Advantages:
- Efficient and Reliable: The generator's diesel engine offers high efficiency and durability, ensuring consistent power output over extended periods.
- Low Noise Level: The generator's noise level is significantly lower than similar models, making it suitable for use in noise-sensitive environments.
- Easy to Maintain: The generator's simple design and accessible components make it easy to maintain and service.
Options:
We offer a range of optional accessories and configurations to enhance the functionality of our super silent diesel generator. These include longer power cords, additional outlets, and protective covers. Please contact us for more information on available options.
FAQ:
- Q: How loud is the generator when it's operating?
A: The generator operates at ultra-low noise levels, providing a peaceful working environment. The noise level is significantly lower than similar models. - Q: How long can the generator run on a full tank of fuel?
A: The generator's fuel tank capacity and fuel consumption rate will determine the runtime on a full tank. Please refer to the product specifications for more detailed information. - Q: Is the generator easy to transport?
A: Yes, the generator's portable design and lightweight construction make it easy to transport and deploy.
