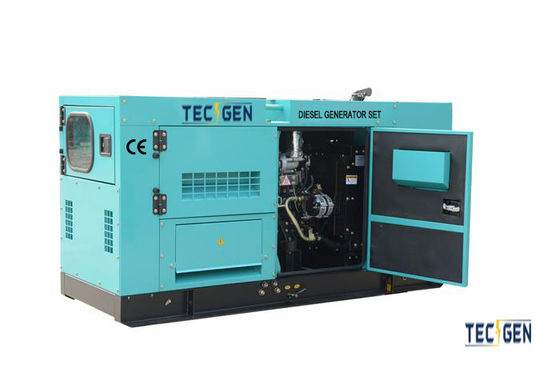

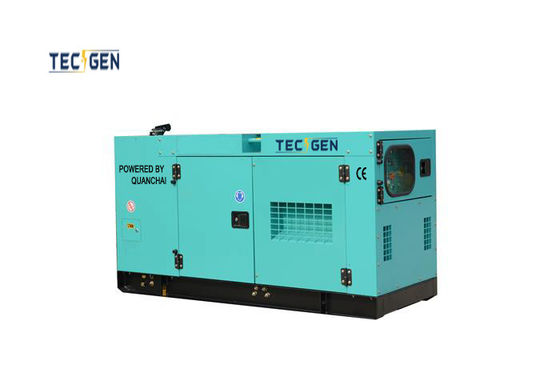

22kW Standby Power Generator Silent Enclosed Chinese Diesel Generator Powered By Quanchai
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Quanchai Standby Power Generator | Type Of Unit | Soundproof (Denyo Type) |
|---|---|---|---|
| Engine Brand | Quanchai | Engine Model | QC498D |
| Prime Genset Power | 25kVA / 20kW | Standby Genset Power | 28kVA / 22kW |
| Controller | DEIF SGC-420 | HS CODE | 8502110000 |
| Highlight | chinese diesel Standby power generator,Quanchai Standby power generator,22kW Standby power generator |
||
Product Description
22kW Standby power generator silent enclosed chinese diesel generator powered by Quanchai
Product Description: QUANCHAI Standby Power Generator
Standard Feature:
- Rated Output: Delivering a robust 20kW / 25kVA, our standby power generator ensures reliable power supply.
- Stable Frequency: Operating at a constant 50Hz, it provides a stable power output for sensitive equipment.
- Three-Phase Output: With a three-phase, 0.8 power factor, it meets the demands of various industrial and commercial applications.
- Dimensions & Weight: Compact dimensions of L2000 x W900 x H1000 and a gross weight of 820kg ensure easy transportation and installation.
Key Feature:
- Quanchai Diesel Engine: Powered by a robust QC498D diesel engine, it offers high efficiency and long-term durability.
- Brushless Alternator: The Tecgen alternator with brushless, self-excitation technology ensures smooth and reliable power generation.
- Advanced Control System: Equipped with a DEIF SGC-420 control system, it offers intelligent protection and monitoring features.
- Eco-Friendly: Low oil consumption and reduced emissions make it an environmentally friendly choice.
22kW Standby Power Generator Specifications:
| QUANCHAI Standby Power Generator Datasheet | |||||||||||||
| Genset Model | TG28QCS | ||||||||||||
| Rated Output | 20kW / 25kVA | ||||||||||||
| Standby Output | 22kW / 28kVA | ||||||||||||
| Frequency | 50Hz | ||||||||||||
| Rated Voltage | 240/415V | ||||||||||||
| Output Type | Three Phase, 0.8 | ||||||||||||
| Rated Current (A) | 34.8A | ||||||||||||
| Dimension (mm) | L2000 x W900 x H1000 | ||||||||||||
| Gross Weight (kg) | 820 | ||||||||||||
| Diesel Engine | Brand | Quanchai | |||||||||||
| Model | QC498D | ||||||||||||
| Configuration | Four-stroke,Water-cooling,Direct Injection | ||||||||||||
| Rated Power | 28kW | ||||||||||||
| Rated Speed (rpm) | 1500rpm | ||||||||||||
| Cylinder No. | 4 | ||||||||||||
| Bore*Stroke (mm) | 98 x 105 | ||||||||||||
| Displacement(L) | 3.17 | ||||||||||||
| Intake | Natural Intake | ||||||||||||
| Oil Consumption (g/Kw*h) | 230@100% load | ||||||||||||
| Starting method | 24V DC | ||||||||||||
| Alternator | Brand | Tecgen | |||||||||||
| Model | TGI184S20 | ||||||||||||
| Rated Power | 20kW | ||||||||||||
| Materials | 100% pure copper | ||||||||||||
| Efficiency | 92.50% | ||||||||||||
| Voltage Regulation | <=±1 | ||||||||||||
| Voltage Regulation | Brushless, Self-excitation | ||||||||||||
| Insulation Class | H | ||||||||||||
| Option brands | Stamford / Leroy Somer / Meccalte | ||||||||||||
| Control System | Brand | DEIF | |||||||||||
| Model | SGC-420 | ||||||||||||
| Working Voltage | DC8.0V to DC35.0V, continuous | ||||||||||||
| Overall Dimensions (mm) | 233*38.5*173 | ||||||||||||
| Panel Cutout (mm) | 219*158 | ||||||||||||
| Working Condition | 0 to 95 % RH. To IEC 60068-2-78 | ||||||||||||
| Functions | AMF/ATS | ||||||||||||
| RS485 & CAN communication | |||||||||||||
| 9 Inlet & 7 Outlet | |||||||||||||
| PLC & BTN | |||||||||||||
| Protections | Under-speed | ||||||||||||
| Over-speed | |||||||||||||
| Configurable crank connect | |||||||||||||
| Battery monitoring | |||||||||||||
| Charging alternator | |||||||||||||
| Pre-heat | |||||||||||||
| Coolant temperature | |||||||||||||
| Lube oil pressure | |||||||||||||
| Fuel level detection | |||||||||||||
| Fuel theft detection | |||||||||||||
| ECU communication failure | |||||||||||||
| ECU diagnostic lamp | |||||||||||||
| Option brands | Deepsea / Smartgen / ComAp / Mebay | ||||||||||||
| Genset option equipment | |||||||||||||
| Integrated-Fuel-Tank | ATS Box / Cabinet | ||||||||||||
| PMG Alternator | Sync Panel | ||||||||||||
| Trailer Type | Engine Heater | ||||||||||||
| Water Heater | Fuel – Water Separator | ||||||||||||
| Maintenance Timetable of Diesel Generating Set | |||||||||||||
| Items | Job | Content | Everyday | Every Week | Every Month | Every Six Month | Every Year or 250 Hours | ||||||
| Lubricating System | Check | Oil leakage | √ | √ | √ | √ | √ | ||||||
| Level of engine oil | √ | √ | √ | √ | √ | ||||||||
| Replace | Oil Filter | √ | √ | ||||||||||
| Engine Olil | √ | √ | |||||||||||
| Clean | Crankcase box | √ | √ | ||||||||||
| Cooling System | Check | Oil leakage | √ | √ | √ | √ | √ | ||||||
| Radiator Block | √ | √ | √ | ||||||||||
| Soft Tube and Joint | √ | √ | √ | ||||||||||
| Fluid | √ | √ | √ | √ | |||||||||
|
Antifreeze and Anticorrosion |
√ | √ | √ | ||||||||||
| Belt Status | √ | √ | |||||||||||
|
Add Grease lubricant |
Fan and Tensing | √ | √ | ||||||||||
| Belt wheel | √ | √ | |||||||||||
| Check | Driving Belt wheel and pump | √ | √ | ||||||||||
| Replace | Cooling Liquid | Every 12 months | |||||||||||
| Clean | Cooling System | ||||||||||||
| Airflow System | Check | Oil Gas | √ | √ | √ | ||||||||
| Cleaner | √ | √ | √ | √ | |||||||||
| Pipe Fittings and Joint | √ | √ | |||||||||||
| Replace | Core of Air Cleaner | √ | |||||||||||
| Fuel System | Check | Leakage | √ | √ | √ | √ | √ | ||||||
| Quality of Fuel | √ | √ | √ | √ | |||||||||
| Pump Nozzle | √ | ||||||||||||
| Fuel pipe and Joint | √ | √ | |||||||||||
| Oil Pump | √ | √ | √ | ||||||||||
| Discharged | Deposition of Fuel Tank | √ | √ | √ | |||||||||
| Replace | Filter of oil | √ | √ | ||||||||||
| Check | Nozzle | Every Two Years | |||||||||||
| Adjust | Value | √ | |||||||||||
Usage:
Ideal for use as a standby power source in hospitals, banks, data centers, and other critical facilities, the TG28QCS ensures uninterrupted power supply during emergencies.
Advantage:
- High Efficiency: With an efficiency rating of 92.50%, it maximizes fuel utilization and reduces operating costs.
- Easy Maintenance: Regular maintenance tasks are straightforward, minimizing downtime and maximizing uptime.
- Versatile Options: A variety of optional equipment and brands allow for customization to meet specific needs.
- Reliable Performance: Rigorous testing ensures consistent and reliable performance even in extreme conditions.
Option:
- Alternator Brands: Choose from Stamford, Leroy Somer, or Meccalte alternators for even greater performance and reliability.
- Control System Brands: Options include Deepsea, Smartgen, ComAp, or Mebay for advanced control and monitoring capabilities.
- Additional Equipment: Options such as integrated fuel tanks, ATS boxes, PMG alternators, and more can be added for enhanced functionality.
FAQ:
- Q: What is the standby output of the TG28QCS?
A: The standby output of the TG28QCS is 22kW / 28kVA, providing ample power for emergency situations. - Q: Is the alternator easy to maintain?
A: Yes, the alternator is designed for easy maintenance, ensuring minimal downtime and maximum uptime. - Q: Can I customize the generator set with additional equipment?
A: Yes, we offer a range of optional equipment and brands that can be added to the generator set to meet your specific needs.
