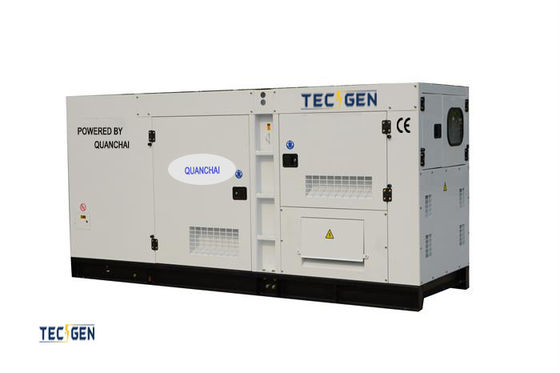

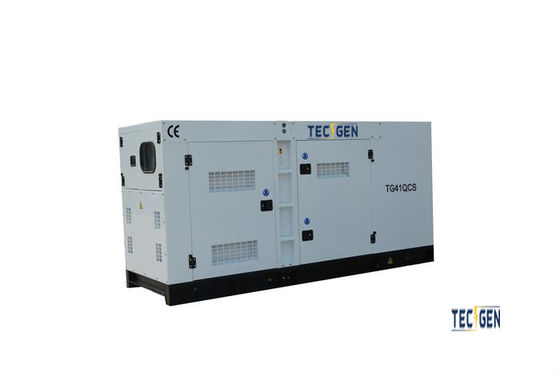

Three Phase Backup Generator Soundproof Diesel Engine Generator 37kVA Prime 41kVA Standby
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG41QCS |
| Minimum Order Quantity | One Set |
| Price | $2000 - $2900 |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Backup Generator | Type Of Unit | Soundproof |
|---|---|---|---|
| HS Code | 8502110000 | Frequency / Speed | 50Hz / 1500rpm |
| Engine Model | Quanchai QC4105D | Engine Power | 38kW |
| Genset Output | 37kVA Prime / 41kVA Standby | Options | ATS / Water Heater / Remote Control / Super Silent |
| Highlight | Soundproof Three phase backup generator,37kVA soundproof backup generator,37kVA backup generator |
||
Product Description
Three phase backup generator soundproof diesel engine generator 37kVA prime 41kVA standby
Product Description: Chinese Diesel Engine Generator – 37kVA Backup Generator
Standard Features:
- Powerful Chinese diesel engine with a rated output of 38kW.
- Stable 50Hz frequency for seamless power delivery.
- 240/415V rated voltage for compatibility with various applications.
- Efficient forced water-cooling system for optimal engine performance.
Key Features:
- High-quality alternator from Copy Stamford, ensuring reliable power generation.
- Automatic voltage regulator (AVR) for consistent voltage output.
- Quiet operation with a noise level of 72db(A) at 7 meters.
- Durable and compact design, suitable for both indoor and outdoor use.
37kVA Backup Generator Specifications:
| Technical Parameter for Quanchai Backup Generator | Genset Model | TG41QCS |
| Prime Power | 30kW/37kVA | |
| Standby Power | 33kW/41kVA | |
| Frequency | 50Hz | |
| Rated Voltage | 240/415V | |
| Power Factor | 0.8 | |
| Governor | MECH OR ELECTRIC | |
| Noise level (7m) | 72db(A) | |
| Engine Brand | Quanchai | |
| Engine Model | QC4105D | |
| Alternator Brand | Copy Stamford | |
| Alternator Brand | TGI184S30 | |
| Dimension | Open: L1600 x W800 x H950mm | |
| Silent: L2200 x W1000 x H1150 | ||
| Fuel Tank Capacity | 90L | |
| Engine General Data | Engine Brand | Quanchai |
| Engine Model | QC4105D | |
| Rated Output | 38kW | |
| Rated Speed | 1500rpm | |
| Number of Cylinders | 4 | |
| Cylinder arrangement | In-line | |
| Displacement (L) | 4.085 | |
| Aspiration | Natural Intake | |
| Bore×Stroke (mm×mm) | 105x118 | |
| Compression Ratio | 16:1 | |
| Cooling | Forced Water Cooled | |
| Fuel Consumption at 100% load(L/H) | 8.2 | |
| Alternator Data | Model | TGI184S30 |
| Brand | Copy Stamford | |
| Rate Output | 37kVA | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | DEIF |
| Model | SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Circuit breaker | Delixi Brand 160A Breaker | |
| Auto Transfer Switch | 63A ATS | |
| Genset Options | Output Socket | |
| Integrated Fuel Tank | ||
| Trailer & Silent Canopy for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
Usage:
The backup generator is ideal for use in hospitals, banks, data centers, and other critical facilities that require uninterrupted power supply. With its powerful Chinese diesel engine and advanced features, it ensures seamless power delivery during emergencies.
Advantages:
- Cost-effective solution for backup power needs.
- Easy to maintain and operate with a user-friendly control system.
- Long service life and low maintenance costs.
- Environmentally friendly with low emissions.
Options:
- Integrated fuel tank for extended operation without refueling.
- Trailer and silent canopy for easy transportation and reduced noise levels.
- Synchronization panel for parallel operation with other generators.
- Additional engine and water heaters for cold weather operation.
FAQ:
- Q: What is the standby power rating of the backup generator?
A: The standby power rating is 33kW/41kVA, making it suitable for backup power applications. - Q: Can I use this Chinese diesel engine generator for continuous operation?
A: Yes, the TG41QCS is designed for both prime and standby power applications, suitable for continuous operation. - Q: What is the fuel consumption rate of the generator?
A: The fuel consumption rate at 100% load is 8.2L/H, providing efficient fuel utilization. - Q: Is the generator easy to maintain?
A: Yes, the generator has a user-friendly control system and requires minimal maintenance, making it easy to keep running smoothly.
With its backup generator capabilities and powerful Chinese diesel engine, the TG41QCS is the perfect choice for your power backup needs. Whether you're looking for a reliable solution for your business or home, this generator will ensure a seamless power supply during emergencies.
