60Hz Diesel Back Up Generator 26kVA Diesel Powered Generator With Rain Proof Canopy
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Low Noise Silent | Usage | Diesel Back Up Generator |
|---|---|---|---|
| Frequency | 60Hz | Voltage | 220V |
| Engine Model | Quanchai QC490D | Alternator | Brushless TGI184S30 |
| Noise | 72dB (A) | Color | RAL White |
| Highlight | 60Hz 26kVA diesel powered generator,26kVA Diesel Back Up Generator,Rain Proof Canopy Diesel Backup Generator |
||
Product Description

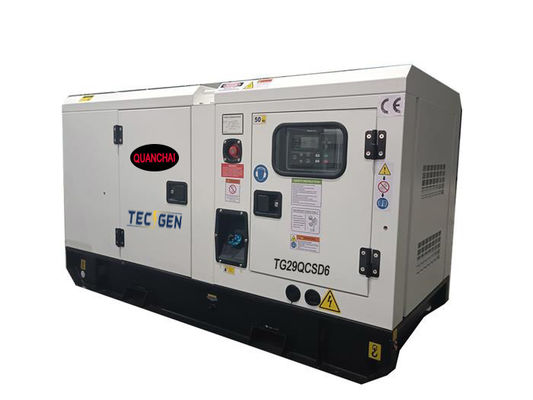

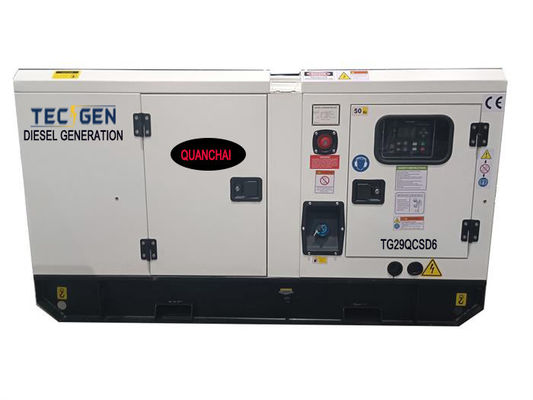

60Hz diesel back up generator 26kVA diesel powered generator with rain proof canopy
Product Description: Quanchai Diesel-Powered Backup Generator
Standard Features:
- Powerful diesel engine with a rated output of 28kW, providing reliable backup power.
- 60Hz frequency and 240V rated voltage for stable and efficient power output.
- High power factor of 0.8, ensuring maximum utilization of generated power.
- Robust alternator with a rate output of 26kVA, designed for long-term durability.
Key Features:
- Quiet operation with a noise level of 72db(A) at 7 meters, making it suitable for various environments.
- Easy portability with compact dimensions and optional trailer, allowing for quick deployment.
- MECH or ELECTRIC governor for precise control of engine speed and power output.
- Durable water-cooled engine with forced water cooling, ensuring efficient heat dissipation.
26kVA Diesel Back Up Generator Specifications:
| Technical Parameter for Quanchai Diesel Back Up Generator | Genset Model | TG29QCSD6 |
| Prime Power | 21kW/26kVA | |
| Standby Power | 23kW/29kVA | |
| Frequency | 60Hz | |
| Rated Voltage | 240V | |
| Power Factor | 0.8 | |
| Governor | MECH OR ELECTRIC | |
| Noise level (7m) | 72db(A) | |
| Engine Brand | Quanchai | |
| Engine Model | QC490D | |
| Alternator Brand | Copy Stamford | |
| Alternator Brand | TGI184S30 | |
| Dimension | Open: L1600 x W800 x H950mm | |
| Silent: L2200 x W1000 x H1150 | ||
| Fuel Tank Capacity | 80L | |
| Quanchai Engine General Data | Engine Brand | Quanchai |
| Engine Model | QC490D | |
| Rated Output | 28kW | |
| Rated Speed | 1800rpm | |
| Number of Cylinders | 4 | |
| Cylinder arrangement | In-line | |
| Displacement (L) | 2.67 | |
| Aspiration | Natural Intake | |
| Bore×Stroke (mm×mm) | 90x105 | |
| Compression Ratio | 16:1 | |
| Cooling | Forced Water Cooled | |
| Fuel Consumption at 100% load(L/H) | 5.8 | |
| AC Alternator Data | Model | TGI184S21 |
| Brand | Copy Stamford | |
| Rate Output | 26kVA | |
| Frequency | 60Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | DEIF |
| Model | SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Circuit breaker | Delixi Brand 160A Breaker | |
| Auto Transfer Switch | 100A ATS | |
| Genset Options | Output Socket | |
| Integrated Fuel Tank | ||
| Trailer & Silent Canopy for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
Usage:
The Quanchai diesel backup generator is ideal for use in a wide range of applications, including emergency backup power for hospitals, schools, businesses, and residences. It is also suitable for use in construction sites, outdoor events, and temporary facilities where a reliable power source is crucial.
Advantages:
- High fuel efficiency with a low fuel consumption rate of 5.8L/H at 100% load, reducing operating costs.
- IP23 protection grade and Class H insulation for added safety and durability.
- Equipped with an automatic voltage regulator (AVR) for maintaining stable voltage output.
- Versatile options including different brands of alternators, control systems, and more, tailored to your specific needs.
Options:
- Integrated fuel tank for convenient fuel storage and longer operating time.
- Trailer and silent canopy for enhanced portability and reduced noise levels.
- Sync panel for parallel operation with other generators, increasing overall power output.
- Optional brands such as Deepsea, ComAp, and Mebay for advanced control and monitoring systems.
FAQ:
- Q: What is the maximum power output of this generator?
A: The maximum power output of this generator is 23kW/29kVA, making it suitable for powering most household and small-scale industrial applications. - Q: How noisy is this generator?
A: The generator operates at a noise level of 72db(A) at 7 meters, ensuring quiet operation even in sensitive environments. - Q: Can this generator be used as a primary power source?
A: Although this generator is primarily designed as a backup power source, it can also be used as a primary power source in certain applications where diesel-powered generators are suitable.
