25kW Water Cooled Diesel Generator Soundproof Generator Set For Hotel Back Up Power
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cooling | Water Cooled | Genset Type | Soundproof |
|---|---|---|---|
| Genset Phase | Three Phase | Frequency | 50HZ |
| Genset Output | Prime 25kW | Engine Model | QC4102D |
| Alternator Model | TGI184S25 | Fuel Tank Capacity | 80L |
| Highlight | soundproof cooled diesel generator,8kW Quanchai Diesel Engine Generator,Water Cooled Soundproof Generator Set |
||
Product Description

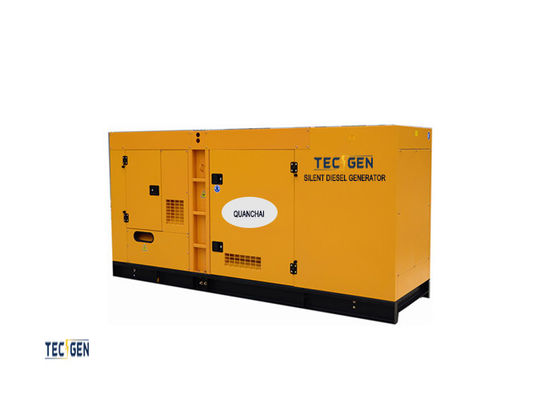

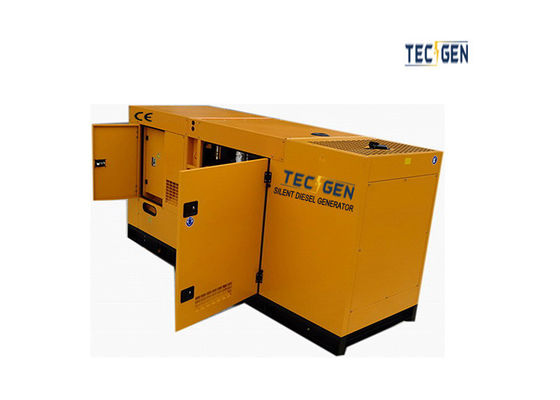

25kW Water cooled diesel generator soundproof generator set for hotel back up power
Product Description for Water Cooled Diesel Generator - Silent Generator Set
Standard Feature:
- Our water cooled diesel generator, a silent generator set, is equipped with a Quanchai QC4102D engine, delivering robust performance.
- It has a rated output of 33kW and a maximum power output of 28kW/34kVA, suitable for various applications.
Key Feature:
- The silent generator set operates at a noise level of just 72db(A) at 7 meters, making it ideal for noise-sensitive environments.
- Its water-cooled system ensures optimal engine temperature, enhancing durability and extending the lifespan of the generator.
25kW Silent Generator Set Specifications:
| Technical Parameter for Quanchai Diesel Generator | Genset Model | TG34QCS |
| Prime Power | 25kW/31kVA | |
| Standby Power | 28kW/34kVA | |
| Frequency | 50Hz | |
| Rated Voltage | 240/415V | |
| Power Factor | 0.8 | |
| Governor | MECH OR ELECTRIC | |
| Noise level (7m) | 72db(A) | |
| Engine Brand | Quanchai | |
| Engine Model | QC4102D | |
| Alternator Brand | Copy Stamford | |
| Alternator Brand | TGI184S25 | |
| Dimension | Open: L1600 x W800 x H950mm | |
| Silent: L2200 x W1000 x H1150 | ||
| Fuel Tank Capacity | 80L | |
| Engine General Data | Engine Brand | Quanchai |
| Engine Model | QC4102D | |
| Rated Output | 33kW | |
| Rated Speed | 1500rpm | |
| Number of Cylinders | 4 | |
| Cylinder arrangement | In-line | |
| Displacement (L) | 3.857 | |
| Aspiration | Natural Intake | |
| Bore×Stroke (mm×mm) | 102x118 | |
| Compression Ratio | 16:1 | |
| Cooling | Forced Water Cooled | |
| Fuel Consumption at 100% load(L/H) | 7 | |
| Alternator Data | Model | TGI184S25 |
| Brand | Copy Stamford | |
| Rate Output | 31kVA | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | DEIF |
| Model | SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Circuit breaker | Delixi Brand 160A Breaker | |
| Auto Transfer Switch | 63A ATS | |
| Genset Options | Output Socket | |
| Integrated Fuel Tank | ||
| Trailer & Silent Canopy for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
Usage:
- This generator is perfect for hospitals, hotels, construction sites, and other settings where a reliable and silent power source is crucial.
- Whether as a backup or primary power supply, it ensures uninterrupted and stable power delivery.
Advantage:
- With a fuel consumption rate of 7L/H at full load, the silent generator set offers significant cost savings in the long run.
- Its forced water-cooled design excels in heat dissipation, minimizing the risk of overheating.
Options:
- We offer a range of optional features, including control systems from DEIF, Deepsea, ComAp, or Mebay.
- You can also choose from various alternator brands like Leroy Somer, Marathon, Mecc Alte, and more.
- Other options include an integrated fuel tank, a trailer and silent canopy, a sync panel, and water and engine heaters.
FAQ:
- Q: What is the noise level of the Quanchai diesel generator?
A: The noise level of the Quanchai diesel generator is 72db(A) at 7 meters, making it a silent generator set suitable for noise-sensitive environments. - Q: Is the generator easy to maintain?
A: Yes, our diesel generator is designed for easy maintenance. Regular checks and basic maintenance tasks can be performed quickly and efficiently. - Q: Can I customize the generator to my specific needs?
A: Absolutely! We offer a range of optional features and accessories that allow you to customize the generator to meet your specific requirements.
With its water-cooled design, reliable performance, and silent operation, the Quanchai diesel generator is the perfect choice for all your power needs. Contact us today to discuss your requirements and find the perfect generator set for your application.
