Silent Type Small Genset 8kW Quanchai Diesel Engine Generator With 63A Built-in ATS

  • Silent Type Small Genset 8kW Quanchai Diesel Engine Generator With 63A Built-in ATS
  • Silent Type Small Genset 8kW Quanchai Diesel Engine Generator With 63A Built-in ATS
Place of Origin Fuzhou, China
Brand Name Tecgen Power
Certification CE / SASO / SONCAP / COC / PVOC
Model Number TG11QCS
Minimum Order Quantity 1 unit
Price $1300 - $2000
Packaging Details Stretch film packaging
Delivery Time 7 - 15 Working Days
Payment Terms T/T, L/C
Supply Ability 200 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Quiet Type Small Genset Speed 1500rpm
Frequency 50HZ Rate Power 8kW / 10kVA
Standby Power 9kW / 11kVA Engine Model Quanchai V12
Speed Governor Mech Or Electric ATS 63A Built-in ATS
Highlight

8kW Silent type small genset

,

63A Silent type small genset

,

8kW Quanchai Diesel Engine Generator
Leave a Message
Product Description

Silent type small genset 8kW Quanchai diesel engine generator with 63A built-in ATS





Product Name: Quiet Type Small Genset TG11QCS





Standard Features:



  • Rated Output: 8kW / 10kVA, providing reliable power for various applications.
  • Frequency: 50Hz, ensuring stable power output.
  • Three-phase, 0.8 power factor for efficient energy distribution.
  • Dimension: L2000 x W900 x H1000mm, compact and space-saving design.





Key Features:



  • Diesel Engine: Quanchai V12 model, offering powerful performance with low fuel consumption.
  • Tecgen Generator: 100% pure copper windings for maximum efficiency and durability.
  • Smartgen Control System: Precise and responsive, with multiple protections for safe operation.
  • Brushless, self-excitation for maintenance-free voltage regulation.

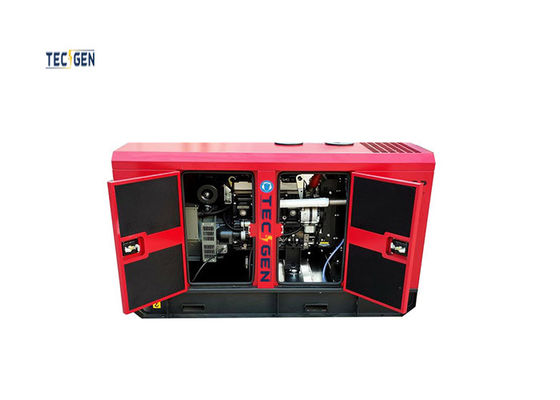

Silent Type Small Genset 8kW Quanchai Diesel Engine Generator With 63A Built-in ATS 0



8kW Silent Type Small Genset Specifications:



Silent Type Small Genset Datasheet
Genset Model TG11QCS
Rated Output 8kW / 10kVA
Standby Output 9kW / 11kVA
Frequency 50Hz
Rated Voltage 240/415V
Output Type Three Phase, 0.8
Rated Current (A) 13.9A
Dimension (mm) L2000 x W900 x H1000
Gross Weight (kg) 710
Diesel Engine Brand Quanchai
Model V12
Configuration Four-stroke,Water-cooling,Direct Injection
Rated Power 8kW
Rated Speed (rpm) 1500rpm
Cylinder No. 4
Bore*Stroke (mm) 78 x 82
Displacement(L) 1.18
Intake Natural Intake
Oil Consumption (g/Kw*h) 230@100% load
Starting method 24V DC
Alternator Brand Tecgen
Model TGI164S8
Rated Power 8kW
Materials 100% pure copper
Efficiency 92.50%
Voltage Regulation <=±1
Voltage Regulation Brushless, Self-excitation
Insulation Class H
Option brands Stamford / Leroy Somer / Meccalte
Control System Brand Smartgen
Model HGM6120N
Working Voltage DC8.0V to DC35.0V, continuous
Overall Dimensions (mm) 233*38.5*173
Panel Cutout (mm) 219*158
Working Condition 0 to 95 % RH. To IEC 60068-2-78
Functions AMF/ATS
RS485 & CAN communication
9 Inlet & 7 Outlet
PLC & BTN
Protections Under-speed
Over-speed
Configurable crank connect
Battery monitoring
Charging alternator
Pre-heat
Coolant temperature
Lube oil pressure
Fuel level detection
Fuel theft detection
ECU communication failure
ECU diagnostic lamp
Option brands Deepsea / Smartgen / ComAp / Mebay
Genset option equipment
Integrated-Fuel-Tank ATS Box / Cabinet
PMG Alternator Sync Panel
Trailer Type Engine Heater
Water Heater Fuel – Water Separator
Maintenance Timetable of Diesel Generating Set
Items Job Content Everyday Every Week Every Month Every Six Month Every Year or 250 Hours
Lubricating System Check Oil leakage √ √ √ √ √
Level of engine oil √ √ √ √ √
Replace Oil Filter       √ √
Engine Olil       √ √
Clean Crankcase box       √ √
Cooling System Check Oil leakage √ √ √ √ √
Radiator Block     √ √ √
Soft Tube and Joint     √ √ √
Fluid   √ √ √ √

Antifreeze and

Anticorrosion

     √ √ √
Belt Status       √ √

Add Grease

lubricant

 Fan and Tensing       √ √
Belt wheel       √ √
Check Driving Belt wheel and pump       √ √
Replace Cooling Liquid Every 12 months
Clean Cooling System
Airflow System Check Oil Gas     √ √ √
Cleaner   √ √ √ √
Pipe Fittings and Joint       √ √
Replace Core of Air Cleaner         √
Fuel System Check Leakage √ √ √ √ √
Quality of Fuel   √ √ √ √
Pump Nozzle         √
Fuel pipe and Joint       √ √
Oil Pump     √ √ √
Discharged Deposition of Fuel Tank     √ √ √
Replace Filter of oil       √ √
Check Nozzle Every Two Years
Adjust Value         √



Usage:



Ideal for residential backup power, camping, RV use, or any scenario where a reliable and compact diesel engine generator is needed.

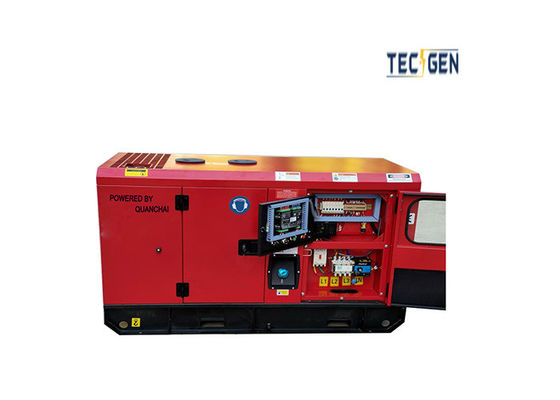

Silent Type Small Genset 8kW Quanchai Diesel Engine Generator With 63A Built-in ATS 1



Advantages:



  • Silent Operation: Minimizes noise pollution, perfect for noise-sensitive environments.
  • High Efficiency: With a 92.50% efficiency rating, it maximizes fuel usage and saves costs.
  • Easy Maintenance: Simple and straightforward maintenance schedule for long-term usage.
  • Versatile Options: A range of optional equipment and brands to choose from for customization.





Options:

  • Integrated Fuel Tank: For extended operation without refueling.
  • ATS Box/Cabinet: Automatic transfer switch for seamless power switching.
  • PMG Alternator: Additional power generation capacity.
  • Trailer Type: For easy transportation and relocation.





FAQ:



  • Q: What is the fuel consumption of this genset?
    A: The fuel consumption is 230g/Kw*h at 100% load, providing efficient power generation.
  • Q: How often does the genset require maintenance?
    A: Regular maintenance is recommended according to the maintenance timetable, including oil changes, filter replacements, and other checks.
  • Q: Is the genset easy to operate?
    A: Yes, with the Smartgen control system, operation is intuitive and straightforward. The system also provides multiple protections for safe and reliable operation.
  • Q: What should I do after receiving the generator set?
  • A: After receiving the generator, please read the operation manual carefully. The generator comes with a user manual that includes operation, installation, maintenance, and repair guidelines.
