17kW Soundprood Diesel Generator 3 Phase Chinese Engine Generator Set Standby Use

  • 17kW Soundprood Diesel Generator 3 Phase Chinese Engine Generator Set Standby Use
  • 17kW Soundprood Diesel Generator 3 Phase Chinese Engine Generator Set Standby Use
Place of Origin Fuzhou, China
Brand Name Tecgen Power
Certification CE / SASO / SONCAP / COC / PVOC
Model Number TG23QCS
Minimum Order Quantity 1 unit
Price $1500 - $2300
Packaging Details Stretch film packaging
Delivery Time 15 Days
Payment Terms T/T, L/C, D/A, D/P
Supply Ability 200 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Soundproof Diesel Generator Output Type AC 3 Phase
Engine Model N490D Cylinder Of Engine 4 Cylinder In Line
Alternator TGI184S17 Alternator Type Single Bearing, Brushless, 100% Copper
Prime Power 17kW Speed Governor MECH Or Electric
Highlight

3 phase diesel generator

,

17kW diesel generator

,

standby use diesel generator
Leave a Message
Product Description

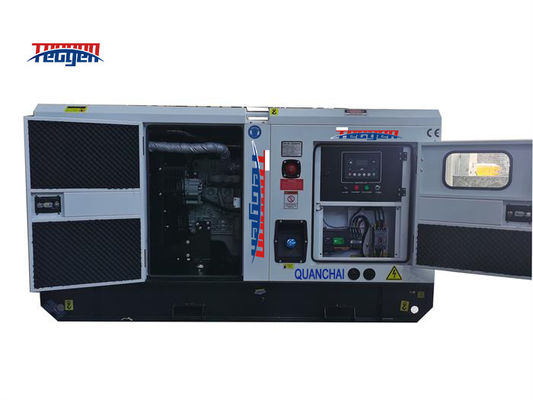

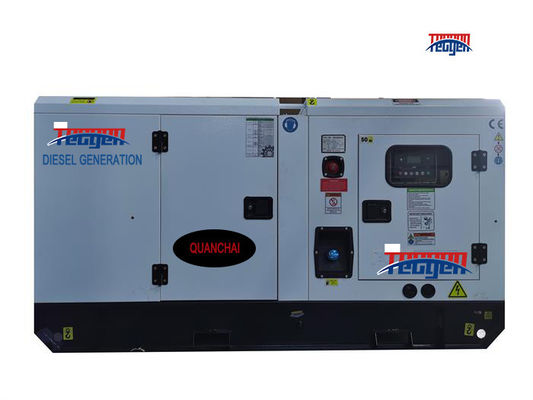

17kW soundprood diesel generator 3 phase Chinese engine generator set standby use





Product Description: Soundproof Diesel Generator Set





Standard Feature:



  • Model: TG23QCS
  • Rated Output: 17kW / 21kVA
  • Standby Output: 19kW / 23kVA
  • Frequency: 50Hz
  • Rated Voltage: 240/415V
  • Output Type: Three Phase, 0.8
  • Rated Current: 29.2A
  • Dimension: L2000 x W900 x H1000 mm
  • Gross Weight: 730 kg





Key Feature:



  • Powerful yet silent - Our soundproof diesel generator provides reliable power output while minimizing noise pollution.
  • Chinese Engine Technology - Equipped with a Quanchai engine, renowned for its durability and fuel efficiency.
  • High Efficiency - The Tecgen alternator ensures 92.50% efficiency, maximizing power output.
  • Easy Control - The DEIF control system offers user-friendly operations with various safety features.



17kW Soundprood Diesel Generator 3 Phase Chinese Engine Generator Set Standby Use 0



17kW Soundproof Diesel Generator Specifications:



QUANCHAI Soundproof Diesel Generator Set Datasheet
Genset Model TG23QCS
Rated Output 17kW / 21kVA
Standby Output 19kW / 23kVA
Frequency 50Hz
Rated Voltage 240/415V
Output Type Three Phase, 0.8
Rated Current (A) 29.2A
Dimension (mm) L2000 x W900 x H1000
Gross Weight (kg) 730
Diesel Engine Brand Quanchai
Model N490D
Configuration Four-stroke,Water-cooling,Direct Injection
Rated Power 23kW
Rated Speed (rpm) 1500rpm
Cylinder No. 4
Bore*Stroke (mm) 90 x 100
Displacement(L) 2.544
Intake Natural Intake
Oil Consumption (g/Kw*h) 230@100% load
Starting method 24V DC
Alternator Brand Tecgen
Model TGI184S17
Rated Power 17kW
Materials 100% pure copper
Efficiency 92.50%
Voltage Regulation <=±1
Voltage Regulation Brushless, Self-excitation
Insulation Class H
Option brands Stamford / Leroy Somer / Meccalte
Control System Brand DEIF
Model SGC-420
Working Voltage DC8.0V to DC35.0V, continuous
Overall Dimensions (mm) 233*38.5*173
Panel Cutout (mm) 219*158
Working Condition 0 to 95 % RH. To IEC 60068-2-78
Functions AMF/ATS
RS485 & CAN communication
9 Inlet & 7 Outlet
PLC & BTN
Protections Under-speed
Over-speed
Configurable crank connect
Battery monitoring
Charging alternator
Pre-heat
Coolant temperature
Lube oil pressure
Fuel level detection
Fuel theft detection
ECU communication failure
ECU diagnostic lamp
Option brands Deepsea / Smartgen / ComAp / Mebay
Genset option equipment
Integrated-Fuel-Tank ATS Box / Cabinet
PMG Alternator Sync Panel
Trailer Type Engine Heater
Water Heater Fuel – Water Separator
Maintenance Timetable of Diesel Generating Set
Items Job Content Everyday Every Week Every Month Every Six Month Every Year or 250 Hours
Lubricating System Check Oil leakage √ √ √ √ √
Level of engine oil √ √ √ √ √
Replace Oil Filter       √ √
Engine Olil       √ √
Clean Crankcase box       √ √
Cooling System Check Oil leakage √ √ √ √ √
Radiator Block     √ √ √
Soft Tube and Joint     √ √ √
Fluid   √ √ √ √

Antifreeze and

Anticorrosion

     √ √ √
Belt Status       √ √

Add Grease

lubricant

 Fan and Tensing       √ √
Belt wheel       √ √
Check Driving Belt wheel and pump       √ √
Replace Cooling Liquid Every 12 months
Clean Cooling System
Airflow System Check Oil Gas     √ √ √
Cleaner   √ √ √ √
Pipe Fittings and Joint       √ √
Replace Core of Air Cleaner         √
Fuel System Check Leakage √ √ √ √ √
Quality of Fuel   √ √ √ √
Pump Nozzle         √
Fuel pipe and Joint       √ √
Oil Pump     √ √ √
Discharged Deposition of Fuel Tank     √ √ √
Replace Filter of oil       √ √
Check Nozzle Every Two Years
Adjust Value         √





Usage:



Ideal for industrial, commercial, and residential applications where reliable and quiet power supply is essential. It can be used as a primary or backup power source in hospitals, data centers, construction sites, and other critical facilities.





17kW Soundprood Diesel Generator 3 Phase Chinese Engine Generator Set Standby Use 1



Advantage:



  • Superior Soundproofing - Our generator's soundproof design significantly reduces noise levels, ensuring a peaceful environment.
  • Easy Maintenance - The compact design and user-friendly control panel make maintenance and troubleshooting effortless.
  • Long-lasting Durability - High-quality materials and components ensure long-term reliability and durability.
  • Versatile Options - Multiple options and accessories allow for customization to meet specific needs.





Option:



  • Integrated-Fuel-Tank: For extended operation without frequent refueling.
  • ATS Box / Cabinet: Automatic Transfer Switch for seamless power transfer.
  • PMG Alternator: Provides additional power generation capacity.
  • Trailer Type: Easy transportation to remote locations.
  • Engine Heater: Ensures smooth startup in cold weather conditions.



FAQ:



Q: Is the generator easy to operate?
A: Yes, the generator comes with a user-friendly control panel and detailed instructions for easy operation.

Q: How often does the generator require maintenance?
A: Regular maintenance is recommended to ensure optimal performance. Please refer to the maintenance timetable for specific intervals.

Q: Can the generator be customized with additional features?
A: Yes, we offer a range of options and accessories to customize the generator to your specific needs.

Q: What is the warranty period for the generator?
A: Please contact our customer service for detailed warranty information.
