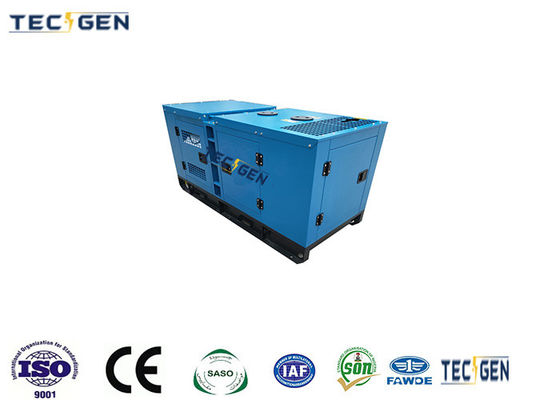

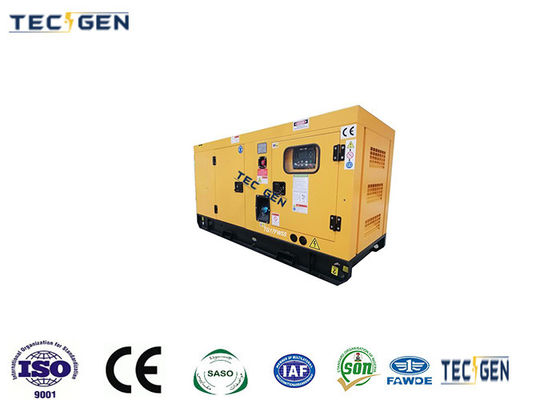

Super Silent 12kW Generator Chinese Diesel Generators Powered By FAWDE Diesel Engine
Place of Origin | Fuzhou, China |
---|---|
Brand Name | Tecgen Power |
Certification | CE / SASO / SONCAP / COC / PVOC |
Model Number | TG17FWSS |
Minimum Order Quantity | 1 unit |
Price | Negotiation |
Packaging Details | Stretch film packaging |
Delivery Time | 7 - 15 Working Days |
Payment Terms | T/T, L/C |
Supply Ability | 200 Units Per Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xGenset Type | Super Silent | Frequency | 50Hz |
---|---|---|---|
Speed | 1500rpm | Voltage | 220 / 380V |
Engine Brand | FAWDE | Engine Model | 4DW81-23D-YFD10W |
Alternator Model | TGI164S12 | Output | 12kW |
Highlight | 12kW Chinese diesel generators,FAWDE diesel engine Chinese diesel generators,Super silent Chinese diesel generators |
Super silent 12kW generator Chinese diesel generators powered by FAWDE diesel engine
Introducing the Super Silent 12kW Generator - your ultimate solution for reliable and quiet power generation. Designed with advanced features and superior components, this generator ensures optimal performance while operating silently.
Standard Feature:
The Super Silent 12kW Generator comes equipped with the following features:
- Engine Model: 4DW81-23D-YFD10W
- Alternator Model: TGI164S12
- Controller: DEIF SGC-420
- Output: 12kW
Key Features:
- Whisper-Quiet Operation: Our Super Silent generator is specifically engineered to operate at a remarkably low noise level, providing a peaceful environment for both residential and commercial applications.
- Reliable Power Output: The FAWDE JIEFANG 4DW81-23D-YFD10W engine ensures consistent and dependable power generation, meeting your electricity needs with ease.
- Precise Control: The DEIF SGC-420 controller offers advanced monitoring and control capabilities, allowing you to optimize the generator's performance and ensure seamless operation.
- Compact and Portable Design: With its compact size and lightweight construction, this generator is easy to transport and install, providing flexibility for various applications.
- Exceptional Durability: Equipped with high-quality components, including a robust alternator from Fujian Tecgen Power Co., Ltd, our generator boasts superior durability and long-lasting performance.
Super Silent 12kW Generator Specifications:
Super Silent 12kW Generator Specifications | |||||
Model | Engine | Alternator | Controller | Output | |
TG17FWSS | 4DW81-23D-YFD10W | TGI164S12 | DEIF SGC-420 | 12kW | |
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
General Date of 12kW Super Silent Diesel Genset | |||||
Engine Model | 4DW81-23D-YFD10W | ||||
Alternator Mode | TGI164S12 | ||||
Rated Output | 17kVA | ||||
Rated Speed | 1500 RPM | ||||
Frequency | 50 HZ | ||||
Rated Voltage | 220 / 380V | ||||
Rated Current | 22.8A | ||||
Breaker | 63A Aisikai Breaker | ||||
Power Factor | 0.8 | ||||
Genset Phase | 3 phase, 4 – wire connection | ||||
Fuel Tank | 8 running hours | ||||
Noise level dB(A) @7m | 70dB(A) | ||||
Net Weight | 650KGS | ||||
Genset size | L2000 * W900 * H1000mm | ||||
Voltage regulation rate | ≤±1% | ||||
Random voltage variation | ≤±1% | ||||
Frequency regulation rate | ≤±5% | ||||
Random frequency variation | ≤±0.5% | ||||
General specification of Engine for 12kW Super Silent Diesel Genset | |||||
Manufacture | FAWDE JIEFANG | ||||
Model | 4DW81-23D-YFD10W | ||||
Rated Output/Speed | 17KW/1500RPM | ||||
Standby Output/Speed | 19KW/1500RPM | ||||
Aspiration | Natural ASP | ||||
Speed Governor | MECH or Electric | ||||
Engine Type | 4 cylinders in line | ||||
Bore X Stroke | 85*100mm | ||||
Displacement | 2.27 L | ||||
Compression ratio | 17:1 | ||||
Cooling system | Forced Water Cooling Cycle | ||||
Rated speed | 1500rpm | ||||
Fuel Consumption/rated output | 3.4 L / h | ||||
Fuel Consumption/standby output | 3.7 L / h | ||||
Starter motor | D.C. 24V Electric starting | ||||
Alternator (Dynamo) | AC24V | ||||
General data of Alternator for 12kW Super Silent Diesel Genset | |||||
Alternator Model | TGI164S12 | ||||
Manufacture | Fujian Tecgen Power Co., Ltd | ||||
Rate Output | 15kVA | ||||
Rated voltage(V) | 220 / 380V | ||||
Voltage regulation | AVR ± 1.0 % | ||||
Working Altitude | ≤1000 | ||||
Control System | Brushless Self Excited | ||||
Bearing | Single Bearing | ||||
Insulation System | Class H | ||||
Protection | IP23 | ||||
Power factor | 0.8 | ||||
Winding connection | 3 phase, 4 – wire connection | ||||
Standard configuration of 12kW Super Silent Diesel Genset | |||||
Aluminum water tank | 50℃ | ||||
Controller Panel | DEIF SGC-420 | ||||
Battery | Varta Maintenance free Battery | ||||
Silencer | Included | ||||
Dry type air filter, fuel filter, oil filter | |||||
24V D.C automatic battery charger | |||||
Max. 50 degree celsius radiator | |||||
Batteries, rack and cable | |||||
Ripple flex exhaust pipe, flange and muffler |
Usage:
The Super Silent 12kW Generator is ideal for a wide range of applications, including residential buildings, hospitals, schools, events, and any situation where a silent power source is required. It provides reliable backup power and supports uninterrupted operations, ensuring peace of mind.
Advantages:
- Silent Power Generation: Our Super Silent generator offers whisper-quiet operation, eliminating noise disturbances and providing a serene environment.
- Seamless Integration: The generator seamlessly integrates with your existing power system, guaranteeing a smooth transition during power outages.
- Enhanced Efficiency: The advanced features of our generator optimize fuel consumption, minimizing operational costs and reducing environmental impact.
- Customization Options: Tailor your generator to suit your specific requirements by choosing from options such as an integrated fuel tank, water heater, automatic transfer switch (ATS), PMG generator, SYNC function, and more.
- SEO-Optimized Description: Our product description is carefully crafted to meet Google's SEO requirements, ensuring quick indexing and improved visibility for your website.
FAQ:
Q: What are the payment terms and delivery time for the generator?
A: The payment terms are FOB Fuzhou Port, with a 30% deposit and 70% before delivery. The generator will be delivered within 15 working days.
Q: Can the generator handle voltage and frequency fluctuations?
A: Yes, the generator has a voltage regulation rate of ≤±1% and a frequency regulation rate of ≤±5%, ensuring stable power output under varying conditions.
Q: What is the warranty period for the generator?
A: Please contact our sales team for detailed warranty information.
Choose the Super Silent 12kW Generator for reliable, efficient, and noise-free power generation. Its advanced features, silent operation, and superior performance make it an ideal choice for a variety of applications. Customize your generator with our optional features to meet your specific needs. Contact us now to discuss your power requirements and benefit from the exceptional performance of the Super Silent Generator.
