Soundproof 100kVA Deutz generator set Deutz generator with DEIF automatic controller
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG110DES |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent Type | Genset Name | Deutz Diesel Generator |
|---|---|---|---|
| Engine | Deutz | Alternator | Mecc Alte, Stamford, Leroy Somer, Marathon, Tecgen |
| Prime Power | 80kW / 100kVA | Max Power | 88kW / 110kVA |
| ATS | 160A Wall-mounted ATS Box Or Built-in ATS | Warranty | 18 Months Or 1500 Hours |
| Highlight | DEIF automatic controller Deutz generator set,Soundproof Deutz generator set,100kVA Deutz generator set |
||
Product Description

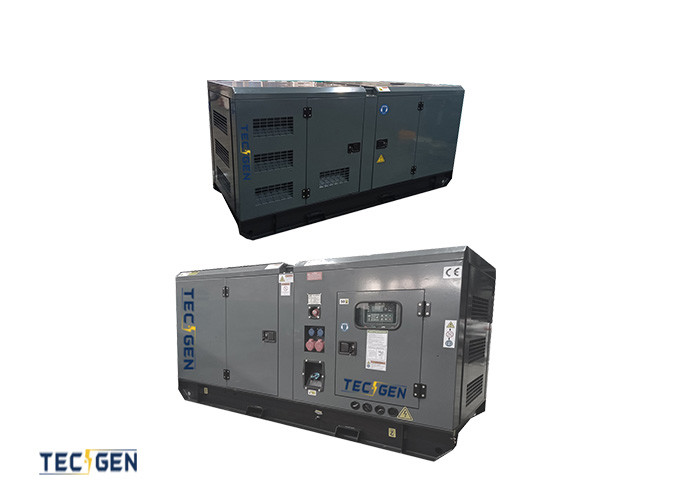

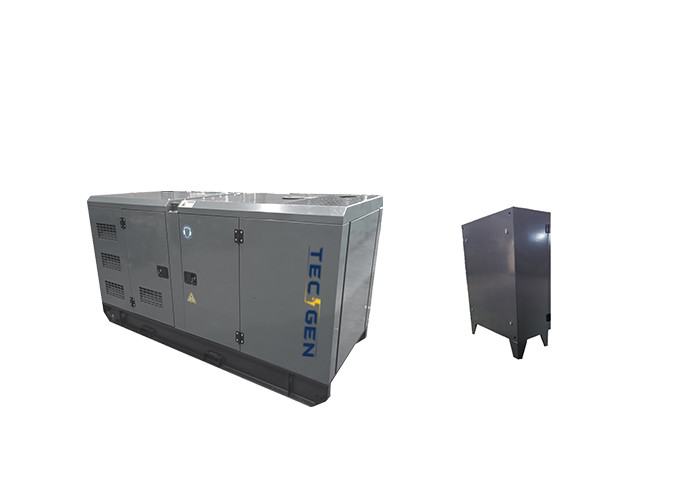

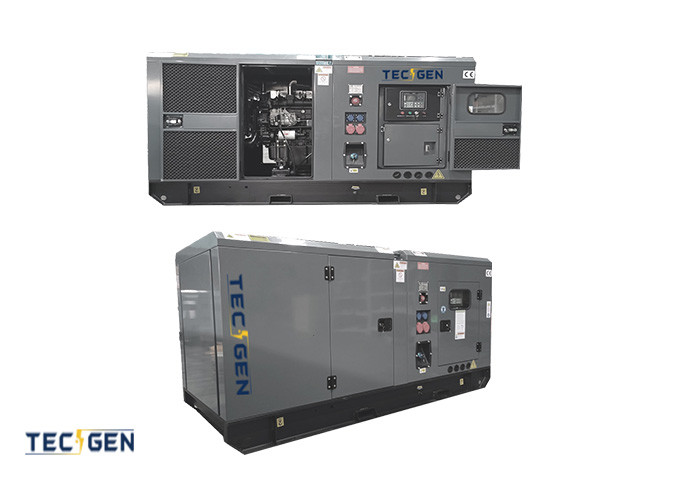

Soundproof 100kVA Deutz generator set Deutz generator with DEIF automatic controller
Product Title: Soundproof 100kVA Deutz Diesel Generator Set
Standard Features:
Experience uninterrupted power supply with our state-of-the-art Soundproof 100kVA Deutz Generator Set. Equipped with a robust BF4M1013EC G1 Deutz diesel engine, this generator ensures reliable power output for your essential applications. Operating at 1500rpm, it delivers 80kW of prime power and 88kW of standby power, backed by a Stamford UCI 274C alternator for clean, stable electricity.
Key Features:
- Soundproof Design: Minimize noise pollution with our advanced soundproof enclosure, perfect for noise-sensitive environments.
- High Efficiency: Turbocharged & CAC technology ensures maximum fuel efficiency, reducing operating costs.
- Automatic Control: The DEIF SGC-420 controller with ATS functionality automates power transfer, ensuring seamless operation.
- Versatile Voltage Options: Supports multiple voltage configurations (440V/415V/400V/380V/230V/220V/110V), catering to diverse needs.
Soundproof 100kVA Deutz Generator Set Datasheets:
| Soundproof 100kVA Deutz Generator Set Technical Datasheets | ||||||
| Genset model | TG110DES | |||||
| Genset Type | Silent / Soundproof | |||||
| Rate Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
| Frequency | 50Hz | |||||
| Speed | 1500rpm | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 139.1A | |||||
| Prime Power | 80kW / 100kVA | |||||
| Standby Power | 88kW / 110kVA | |||||
| Engine | Brand | Deutz | ||||
| Model | BF4M1013EC G1 | |||||
| Alternator | Brand | Stamford | ||||
| Model | UCI 274C | |||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| ATS | 160A Built-in ATS | |||||
| Breaker | CHNT Brand Breaker | |||||
| Genset Weight | 1820kgs | |||||
| Genset Dimensions | L2900 * W 1000 * 1500 | |||||
| Deutz Diesel Engine Data | ||||||
| Brand | Deutz | |||||
| Engine Model | BF4M1013EC G1 | |||||
| Number of Cylinders | 4 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Turbocharged & CAC | |||||
| Displacement | 4.76L | |||||
| Compression ratio | 19:1 | |||||
| Bore×Stroke | 108*130mm | |||||
| Speed | 1500rpm | |||||
| Prime Power | 85kW | |||||
| Standby Power | 89kW | |||||
| Speed Governor | Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 230g/kwh@1500rpm | |||||
| Stamford Alternator Data | ||||||
| Brand | Stamford | |||||
| Model | UCI 274C | |||||
| Frequency/speed | 50HZ/1500RPM | |||||
| Rate Output | 100kVA | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| DEIF Controller System | ||||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Function | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
| 16kW ~ 600kW | Deutz | Marathon | DEIF | |||
| 7kW ~ 64kW | Yangdong |
Tecgen
|
||||
| 7kW ~ 76kW | Quanchai | |||||
| 18kW ~ 3000kW | Weichai | |||||
| 8kW ~ 800kW | SDEC | |||||
| 12kW ~ 320kW | FAWDE | |||||
| 18kW ~ 1200kW | Yuchai | |||||
| 11kW ~ 104kW | Beinei Aircooled | |||||
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
Ideal for industrial, commercial, and residential applications requiring a reliable backup power source. Suitable for hospitals, data centers, construction sites, and remote locations where a continuous power supply is crucial.
Advantage:
Experience the peace of mind that comes with a Deutz Diesel Generator Set, renowned for its durability, performance, and low maintenance requirements. The soundproof design ensures minimal disruption, making it the perfect choice for noise-conscious environments.
Options:
Choose from a range of accessories, including extended warranties, additional fuel tanks, and customized enclosures to suit your specific needs.
FAQ:
- Q: How loud is the generator when running?
- A: Our soundproof design significantly reduces noise levels, ensuring minimal disruption to your surroundings.
- Q: What is the fuel consumption at full load?
- A: The generator consumes approximately 230g/kwh at 1500rpm, ensuring optimal fuel efficiency.
Experience the superior performance and reliability of the Soundproof 100kVA Deutz Diesel Generator Set. Order now and ensure uninterrupted power for your critical applications.
