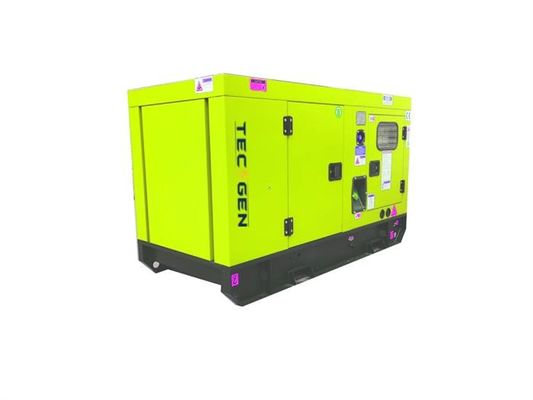

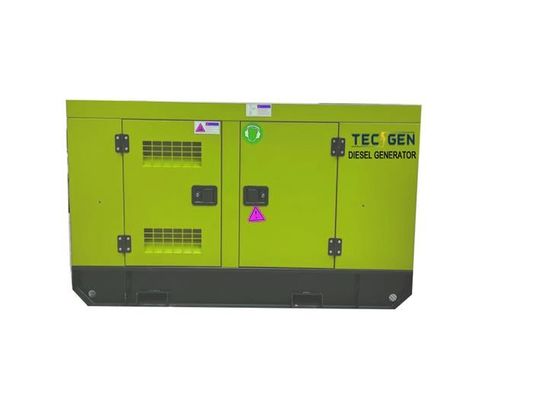

3 Phase 28kVA JX ISUZU genset silent generators powered by JX ISUZU diesel engine
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG21JIS |
| Minimum Order Quantity | 1 unit |
| Price | $3300 - $4000 |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent, Super Silent, Trailer | Frequency | 50Hz |
|---|---|---|---|
| Engine Brand | JX ISUZU | Engine Model | JE493DB-03 |
| Engine Datails | 25kW, Natural Inatke, 4 Cylinder, 2.585L Displacement | Alternator Model | Stamford S0L2-M1 |
| Genset Power | 22kW / 28kVA | Transport Package | Packed In Plywood Cases Or Wooden Cases Or Foam, E |
| Highlight | 28kVA JX ISUZU genset,3 Phase 28kVA JX ISUZU genset,Silent 28kVA JX ISUZU genset |
||
Product Description
3 Phase 28kVA JX ISUZU genset silent generators powered by JX ISUZU diesel engine
Introducing the Powerful 3 Phase 28kVA JX ISUZU Genset
Experience uninterrupted power supply with the robust and reliable 3 Phase 28kVA JX ISUZU Genset. Perfect for a wide range of industrial, commercial, and backup power applications, this generator set combines cutting-edge technology with exceptional performance.
Standard Features:
- Powerful Engine: Equipped with the JE493DB-03 ISUZU engine, delivering a rated output of 25kW and a standby output of 28kW, ensuring seamless power backup.
- High-Efficiency Alternator: The S0L2-M1 alternator from Stamford produces a clean and stable 220V power, with a voltage regulation rate of ≤±1%, ensuring precision for sensitive equipment.
- Intelligent Controller: The DEIF SGC-420 controller ensures seamless operation, monitoring and protection of your generator, ensuring peace of mind.
Key Features:
- Durability: Constructed with top-quality materials, the 3 Phase 28kVA JX ISUZU Genset is built to last, withstanding rigorous use in various environments.
- Low Noise Level: Operating at just 70dB(A) at 7m, this generator ensures minimal disruption to your surroundings.
- Easy Maintenance: With its accessible design and 3000 hours spare parts option, maintenance is a breeze, keeping your generator running smoothly.
3 Phase 28kVA JX ISUZU Genset Datasheets:
| 3 Phase 28kVA JX ISUZU Genset Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG28JISD6 | JE493DB-03 | S0L2-M1 | DEIF SGC-420 | 28kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of 28kVA JX ISUZU Diesel Generator Set | |||||
| Engine Model | JE493DB-03 | ||||
| Alternator Mode | S0L2-M1 | ||||
| Rated Output | 20kW / 25kVA | ||||
| Standby Output | 22kW / 28kVA | ||||
| Rated Speed | 1800 RPM | ||||
| Frequency | 60 HZ | ||||
| Rated Voltage | 220V | ||||
| Rated Current | 65.6A | ||||
| Breaker | 63A Aisikai Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 70dB(A) | ||||
| Net Weight | 640KGS | ||||
| Genset size | L2100 * W730 * H1000mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 28kVA JX ISUZU Diesel Generator Set | |||||
| Manufacture | JX ISUZU | ||||
| Model | JE493DB-03 | ||||
| Rated Output/Speed | 25KW/1800RPM | ||||
| Standby Output/Speed | 28KW/1800RPM | ||||
| Aspiration | Natural Intake | ||||
| Speed Governor | MECH or Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 93*102mm | ||||
| Displacement | 2.771 L | ||||
| Compression ratio | 18.2:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 5 L / h | ||||
| Fuel Consumption/standby output | 6 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 28kVA JX ISUZU Diesel Generator Set | |||||
| Alternator Model | S0L2-M1 | ||||
| Manufacture | Stamford | ||||
| Rate Output | 25kVA | ||||
| Rated voltage(V) | 220V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of 28kVA JX ISUZU Diesel Generator Set | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage:
Ideal for hospitals, data centers, construction sites, and anywhere reliable backup power is crucial. The 3 Phase 28kVA JX ISUZU Genset ensures your operations continue uninterrupted during power outages.
Advantages:
- Versatility: With optional features like integrated fuel tanks, water heaters, and ATS, this generator adapts to your unique needs.
- Fuel Efficiency: With a fuel consumption of 5-6L/h, it minimizes operational costs.
- Quick Delivery: Shipped from Fuzhou Port with a 15-working-day delivery time, you can have your generator up and running in no time.
Options:
Upgrade your generator with options like a 12/24-hour fuel tank, PMG generator, or SYNC function for enhanced performance and convenience.
FAQs:
- Q: What is the noise level of the 3 Phase 28kVA JX ISUZU Genset?
- A: The noise level is 70dB(A) at 7m, ensuring minimal disruption.
- Q: How long does it take to deliver?
- A: We deliver within 15 working days from Fuzhou Port.
- Q: Can I customize the generator with additional options?
- A: Yes, we offer a range of optional features to suit your specific requirements.
Experience the reliability and power of the 3 Phase 28kVA JX ISUZU Genset. Order now and enjoy seamless power backup for your critical operations.
