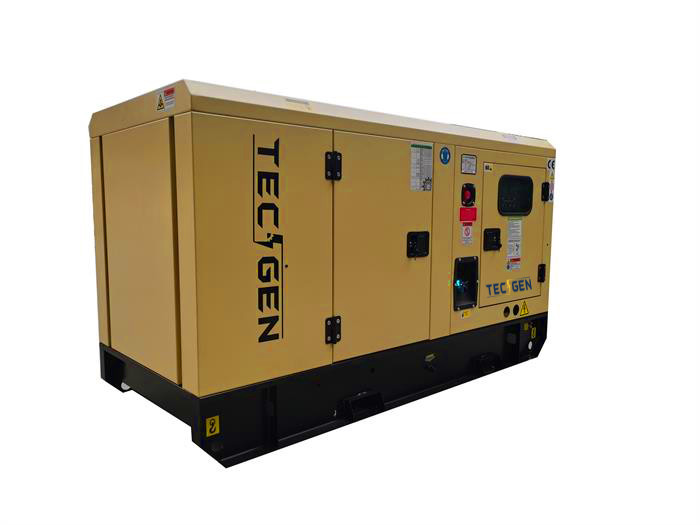

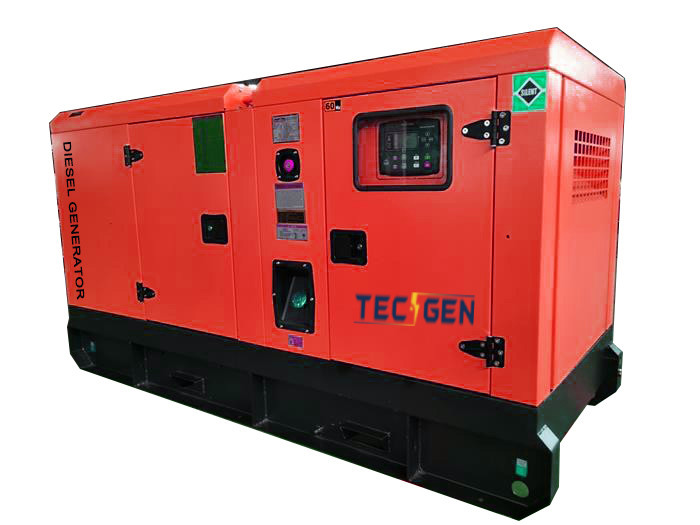

16kW Diesel Electric Generator Yangdong genset with silent & soundproof canopy
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent & Soundproof | Frequency | 50Hz |
|---|---|---|---|
| Speed | 1500rpm | Option | 60Hz / 1800rpm |
| Engine Brand | Yangdong | Engine Model | YSD490D |
| Genset Power | 16kW / 20kVA Prime | Alternator | Leory Somer, Stamford, Meccalte, Tecgen |
| Highlight | Soundproof Diesel Electric Generator,16kW Diesel Electric Generator,Yangdong Diesel Electric Generator |
||
Product Description
16kW Diesel Electric Generator Yangdong genset with silent & soundproof canopy
Product Title:
16kW Diesel Electric Generator - Reliable Power for All Your Needs
Standard Features:
Experience uninterrupted power supply with our robust 16kW Diesel Electric Generator. Equipped with a YSD490D engine, this generator delivers a prime power of 16kW and a standby power of 18kW, ensuring ample electricity for your home, office, or industrial applications. Running at 50Hz with a stable 415/240V three-phase output, it's designed for long-lasting performance and versatility.
Key Features:
- Powerful Engine: The YSD490D engine boasts a 21kW rating, ensuring a reliable and efficient power output.
- Automatic Voltage Regulation (AVR): Maintains a steady voltage within 1%, ensuring sensitive electronics run smoothly.
- Compact & Portable: Available in both open and silent models, the generator is compact yet powerful, making it easy to transport and deploy.
- Long-lasting Fuel Tank: With a 50L fuel capacity, it provides extended runtimes, reducing the need for frequent refueling.
- User-friendly Controller: Equipped with a DEIF SGC-420 controller, featuring an AMF module for automatic start/stop and an emergency stop button for added safety.
16kW Diesel Electric Generator Datasheets:
| Technical Specification: | ||
| 16kW Diesel Electric Generator Specification | ||
| Genset Model | TG22YD | TG22YDS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 415/240V | |
| Phase | 3 | |
| Rate Current (A) | 29.2 | |
| Prime Power (KW/KVA) | 16kW / 20kVA | |
| Standby Power(KW/KVA) | 18kW / 22kVA | |
| Engine Model | YSD490D | |
| Alternator Model | TGI184S16 | |
| Controller | DEIF SGC-420 | |
| Fuel Tank Capacity | 50L | |
| Weight And Dimensions | ||
| Length (mm) | 1200 | 1900 |
| Width (mm) | 750 | 850 |
| Height (mm) | 950 | 1100 |
| Weight (kgs) | 750 | 1000 |
| Engine Specification | ||
| Engine Model | YSD490D | |
| Prime (kW) | 21 | |
| Injection | Indirect | |
| Aspiration | Naturally Aspirated | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 90 x 100 | |
| Displacement (L) | 2.54 | |
| Cooling | water | |
| Compression Ratio | 18:1 | |
| Engine Oil capacity (L) | 5.3 | |
| Coolant Capacity ( In radiator) | 5.3 | |
| Governor | Mechanical | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 4.7 | |
| 75% Load (L/h) | 3.5 | |
| 50% Load (L/h) | 2.4 | |
| 25% Load (L/h) | 1.2 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI184S16 | |
| Rate Output (kW) | 16kW | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | single | |
| Controller System | ||
| Brand | DEIF | |
| Model | SGC-20 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Usage:
Ideal for powering construction sites, events, emergency backup, farms, factories, and residential applications requiring heavy-duty power solutions. Its versatility ensures seamless integration into various power systems.
Advantages:
- High Efficiency: Indirect injection and natural aspiration optimize fuel consumption, making it cost-effective.
- Durability: Rugged construction and water-cooled engine ensure longevity and minimal maintenance.
- Quiet Operation: The silent model reduces noise levels, making it suitable for noise-sensitive environments.
- Easy Maintenance: Dry element air filter and accessible components simplify routine checks and maintenance.
Options:
Choose from a range of optional accessories, including an ATS Box for seamless power transfer, a remote control for added convenience, and a daily fuel tank for extended operations. Additionally, opt for an engine heater or water heater for cold climate use.
FAQs:
- Q: What is the maximum power output of this generator?
- A: The generator has a prime power of 16kW and a standby power of 18kW.
- Q: How long can it run on a full tank?
- A: Runtime depends on load, but at 100% load, it can run for approximately 10 hours on a 50L tank.
- Q: Is it suitable for sensitive electronics?
- A: Yes, with AVR maintaining voltage stability within 1%, it's safe for use with sensitive devices.
Experience the Power of Reliability:
With its 16kW Diesel Electric Generator, you'll never have to worry about power outages again. Whether you're powering a construction site or ensuring backup power for your home, this generator is the perfect solution. Order now and enjoy uninterrupted power supply backed by our exceptional customer support.
