50Hz 100kVA Generating Set Silent Diesel Generator Powered By Deutz With Integrated Fuel Tank
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG110DES |
| Minimum Order Quantity | One Set |
| Price | $6400 - $7900 |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Soundproof | Product | Deutz Diesel Generator |
|---|---|---|---|
| Frequency | 50Hz | Engine Brand | Deutz |
| Engine Model | BF4M1013EC G1 | Alternator Type | AC Brushless Type |
| Prime Power | 80kW / 100kVA | Max Power | 88kW / 110kVA |
| Highlight | Silent Diesel Generator 100kVA,100kVA Deutz Diesel Generator,Integrated Fuel Tank Diesel Generator |
||
Product Description

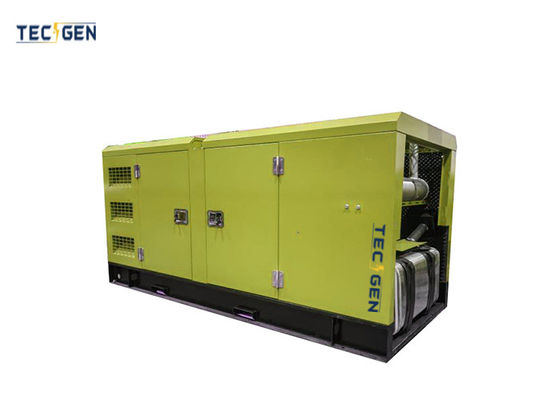

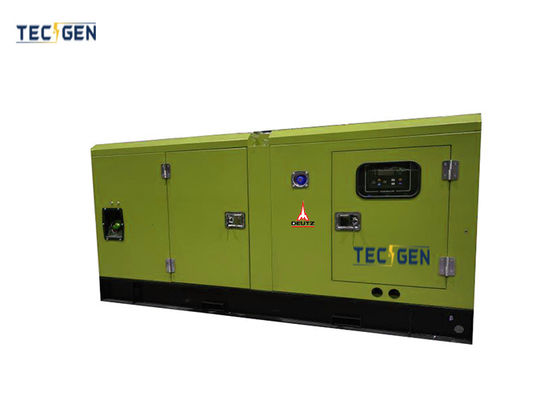

50Hz 100kVA generating set silent diesel generator powered by Deutz with integrated fuel tank
Product Title:
Silent Type 50Hz 100kVA Generating Set - Reliable Power, Uninterrupted Silence
Product Description:
Introducing our flagship silent type 50Hz 100kVA Generating Set, the ultimate solution for power needs that demand both performance and discretion. Engineered with the latest technology, this generator set combines impressive power output with whisper-quiet operation, making it the ideal choice for hospitals, data centers, residential complexes, and any application where noise reduction is paramount.
Standard Features:
- Powerful Output: Rated at 80kW/100kVA with a standby capacity of 88kW/110kVA, this generator ensures a reliable power supply for even the most demanding applications.
- Silent Operation: Equipped with advanced sound-dampening materials and design, it operates at exceptionally low noise levels, blending seamlessly into its surroundings.
- Electric Governor: Precision-controlled electric governor ensures stable voltage and frequency output, safeguarding sensitive equipment from power fluctuations.
- Four-Stroke Diesel Engine: Powered by a DEUTZ BF4M1013EC G1 engine, renowned for its durability and fuel efficiency, it delivers a rated power of 75kW at 1500rpm.
Key Features:
- Brushless Alternator: Leroy Somer TAL-A44-D alternator boasts 92.50% efficiency and brushless, self-excitation technology for maintenance-free operation and extended lifespan.
- Turbocharged & CAC: Turbocharging with charge air cooler enhances engine performance, providing more power with cleaner emissions.
- DEIF Control System: Featuring the DEIF SGC-420 controller, it offers advanced monitoring and protection functions, including AMF/ATS, RS485 & CAN communication, and multiple safety features.
- High-Quality Materials: Constructed with 100% pure copper windings, ensuring optimal heat dissipation and electrical conductivity.
50Hz 100kVA Generating Set Specifications:
| 50Hz 100kVA Generating Set Datasheet | ||
| Genset Model | TG110DES | |
| Rated Power | 80kW / 100kVA | |
| Standby Power | 88kW / 110kVA | |
| Governor | Electric | |
| Frequency | 50Hz | |
| Rated Voltage | 240 /415 V | |
| Rated Current (A) | 139.1A | |
| Dimension (mm) | L2750 x W1100 x H1500 | |
| Gross Weight (kg) | 1850 | |
| Diesel Engine | Brand | DEUTZ |
| Model | BF4M1013EC G1 | |
| Configuration | Four-stroke,Water-cooling,Direct Injection | |
| Rated Power | 75kW | |
| Rated Speed (rpm) | 1500rpm | |
| Cylinder No. | 4 | |
| Bore*Stroke (mm) | 108 x 130 | |
| Displacement(L) | 4.76 | |
| Intake | Turbocharged & CAC | |
| Fuel Consumption (g/Kw*h) | 220@100% load | |
| Starting method | 12/24V DC | |
| Alternator | Brand | Leroy Somer |
| Model | TAL-A44-D | |
| Rated Power | 100kVA | |
| Materials | 100% pure copper | |
| Efficiency | 92.50% | |
| Voltage Regulation | <=±1 | |
| Voltage Regulation | Brushless, Self-excitation | |
| Insulation Class | H | |
| Option brands | Stamford / Leroy Somer / Meccalte | |
| Control System | Brand | DEIF |
| Model | DEIF SGC-420 | |
| Working Voltage | DC8.0V to DC35.0V, continuous | |
| Overall Dimensions (mm) | 233*38.5*173 | |
| Panel Cutout (mm) | 219*158 | |
| Working Condition | 0 to 95 % RH. To IEC 60068-2-78 | |
| Functions | AMF/ATS | |
| RS485 & CAN communication | ||
| 9 Inlet & 7 Outlet | ||
| PLC & BTN | ||
| Protections | Under-speed | |
| Over-speed | ||
| Configurable crank connect | ||
| Battery monitoring | ||
| Charging alternator | ||
| Pre-heat | ||
| Coolant temperature | ||
| Lube oil pressure | ||
| Fuel level detection | ||
| Fuel theft detection | ||
| ECU communication failure | ||
| ECU diagnostic lamp | ||
| Option brands | Deepsea / Smartgen / ComAp / Mebay | |
| Genset option equipment | ||
| Integrated-Fuel-Tank | ATS Box / Cabinet | |
| PMG Alternator | Sync Panel | |
| Trailer Type | Engine Heater | |
| Water Heater | Fuel – Water Separator | |
Usage:
Perfect for use in noise-sensitive environments, our silent type 50Hz 100kVA Generating Set is an essential backup or primary power source for critical infrastructure, emergency services, and luxury residential settings. Its compact design and easy installation make it a versatile addition to any power generation plan.
Advantages:
- Increased Efficiency: High-efficiency alternator and diesel engine combination maximizes fuel economy and reduces operating costs.
- Enhanced Durability: Rugged construction and premium components ensure long-lasting performance and minimal downtime.
- Versatile Control: Intuitive DEIF control system allows for seamless integration into existing power management systems.
- Eco-Friendly: Low noise emissions and advanced engine technology contribute to a greener, more sustainable energy solution.
Options:
- Integrated Fuel Tank
- ATS Box/Cabinet for automatic transfer switching
- PMG Alternator for precision voltage regulation
- Engine Heater for cold start protection
- Water Heater for better engine performance in cold climates
- Fuel-Water Separator to maintain fuel purity
FAQs:
Q: How quiet is this generator?
A: Our silent type design ensures minimal noise output, making it ideal for noise-sensitive applications.
Q: What is the fuel consumption at full load?
A: The fuel consumption is 220g/kWh at 100% load, providing exceptional fuel efficiency.
Q: Can this generator be used as a primary power source?
A: Yes, its robust construction and reliable performance make it suitable for both backup and primary power applications.
Experience the ultimate blend of power and silence with our 50Hz 100kVA Silent Type Generating Set. Order now and enjoy uninterrupted, whisper-quiet power for all your critical needs.
