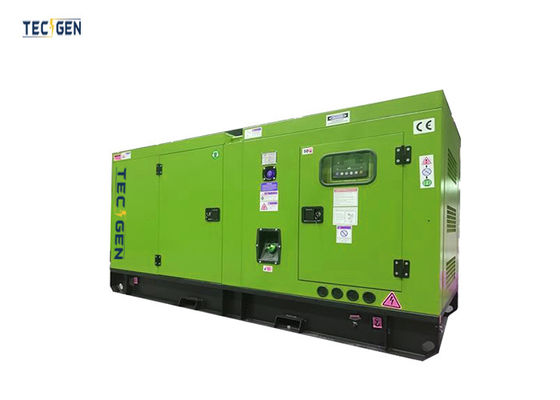

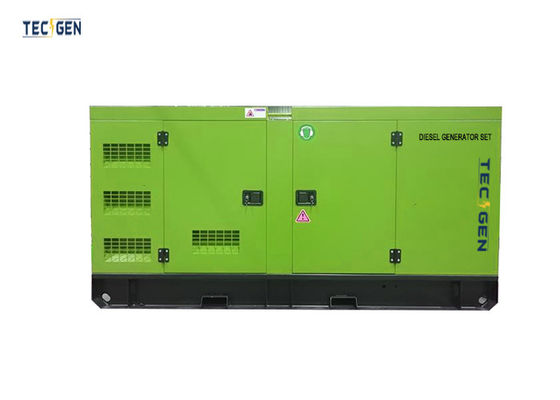

Soundproof 113kVA Generating Set Deutz Diesel Generator With Built-in ATS For Option
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 60Hz | Type | Silent |
|---|---|---|---|
| Engine Brand | Deutz | Engine Model | BF4M1013EC G1 |
| Alternator | UCI 274D | Controller | DEIF SGC-420 |
| Prime Power | 113kVA / 90kW | Standby Power | 24kVA / 99kW |
| Highlight | ATS Deutz diesel generator,113kVA Deutz diesel generator,Soundproof Deutz diesel generator |
||
Product Description
Soundproof 113kVA generating set Deutz diesel generator with built-in ATS for option
Introducing the Ultimate Soundproof 113kVA Generating Set - Power Meets Silence
Experience unparalleled reliability and efficiency with our flagship Soundproof 113kVA Generating Set, powered by a robust Deutz Diesel Generator. Designed for both commercial and industrial applications, this generator set combines cutting-edge technology with exceptional noise reduction capabilities, ensuring a seamless power solution for any environment.
Standard Features:
- Powerful Engine: Equipped with a Deutz BF4M1013EC G1 diesel engine, delivering prime power of 95kW (113kVA) and a maximum of 99kW (124kVA), this generator is built to handle heavy loads with ease.
- Silent Operation: The soundproof enclosure ensures operational noise levels are kept to a whisper, making it ideal for noise-sensitive areas such as hospitals, schools, and residential zones.
- Reliable Power Output: The UCI 274D brushless alternator maintains stable voltage and frequency regulation, ensuring a clean, uninterrupted power supply.
- Intelligent Control: The integrated DEIF SGC-420 controller manages engine performance, monitors system health, and simplifies maintenance tasks.
Key Features:
- Efficient Fuel Consumption: Boasting a fuel consumption rate of 230g/kW.h, the Deutz diesel engine maximizes operational efficiency, reducing running costs.
- Long-Lasting Durability: With its turbocharged & CAC system, the engine ensures enhanced power output while prolonging engine life.
- User-Friendly Design: Equipped with a built-in 160A Automatic Transfer Switch (ATS) and CHNT/Delixi breakers, installation and operation are hassle-free.
- Easy Maintenance: Access to engine components is simplified through a thoughtful design, allowing for quick and efficient maintenance procedures.
Soundproof 113kVA Generating Set Specifications:
| Soundproof 113kVA Generating Set Datasheet | ||||
| Soundproof Type Diesel Generating Set | Genset Type | Silent Type | ||
| Genset Model | TG124DESD6 | |||
| Prime Output | 113kVA / 90kW | |||
| Max Output | 124kVA / 99kW | |||
| Engine model | BF4M1013EC G1 | |||
| Alternator model | UCI 274D | |||
| Frequency | 60Hz | |||
| Speed | 1500rpm | |||
| Voltage | 415V | |||
| Output Type | 3 Phase, 4 Wire | |||
| Current | 157.2A | |||
| Controller | DEIF SGC-420 | |||
| ATS | 160A Built-in ATS | |||
| Breaker | CHNT / Delixi | |||
| Battery | Varta | |||
| Fuel Tank | 8 running Hours | |||
| Demission | L2600x1300x1500mm | |||
| Weight | 1700kgs | |||
| Soundproof Type Diesel Generator set parameters | ||||
| Voltage setting range | ≥±10% | |||
| Steady state voltage regulation rate | ≤0.5% | |||
| Transient voltage deviation (100% sudden power reduction) | ≤+17% | |||
| Transient Voltage Deviation (40% Sudden Power) | ≤-6.5% | |||
| Voltage Stability Time (100% Sudden Power Reduction) | ≤2.8S | |||
| Voltage Stability Time (40% Sudden Power) | ≤2.5S | |||
| Frequency adjustment range | ≥±10%Adjustble | |||
| Frequency volatility | ≤±0.25% | |||
| Transient frequency deviation (100% sudden power reduction) | ≤+8% | |||
| Transient frequency deviation (40% sudden power) | ≤-5% | |||
| Frequency Recovery Time (100% Sudden Power Reduction) | ≤1.48S | |||
| Frequency recovery time (40% sudden power) | ≤1.35S | |||
| Deutz Diesel Engine Parameters | ||||
| Deutz Engine | Brand | Deutz | ||
| Model | BF4M1013EC G1 | |||
| Prime power | 95kW | |||
| Combustion | Direct Injection | |||
| No. of Cylinders | 4 Cylinder | |||
| Aspiration | Turbocharged & CAC | |||
| Compression Ratio | 19:1 | |||
| Speed | 1800rpm | |||
| Displacement | 4.76 | |||
| Bore* Storke | 108mm*130mm | |||
| governor | Electric | |||
| Start motor | DC 12V | |||
| Cooling Capacity | 7.4 | |||
| Cooling Type | Water cooling | |||
| FUEL CONSUMPTION | 230g/kW.h | |||
| Brushless Alternator Parameters | ||||
| Stamford Alternator | Brand | Stamford | ||
| Model | UCI 274D | |||
| Rate Output | 91.2kW | |||
| Rate Speed | 1800rpm | |||
| Frequency | 60Hz | |||
| Altitude | ≤1000 | |||
| Alternator type | Single bearing, brushless type | |||
| Connection Type | 3 phase, 4 wire | |||
| Protection Grade | IP23 | |||
| Insulation Class | H | |||
| Voltage Regulation | AVR | |||
| Option brand | Stamford,Leroy Somer,Meccalte | |||
| Genset Controller System | ||||
| Controller DEIF SGC-420 | Brand | DEIF | ||
| Model | SGC-420 | |||
| Working Voltage | DC8.0V to DC35.0V, continuous | |||
| Overall Dimensions (mm) | 233*38.5*173 | |||
| Functions | AMF/ATS | |||
| RS485 & CAN communication | ||||
| 9 Inlet & 7 Outlet | ||||
| PLC & BTN | ||||
| Protections | Under-speed | |||
| Over-speed | ||||
| Configurable crank connect | ||||
| Battery monitoring | ||||
| Charging alternator | ||||
| Pre-heat | ||||
| Coolant temperature | ||||
| Lube oil pressure | ||||
| Fuel level detection | ||||
| Fuel theft detection | ||||
| ECU communication failure | ||||
| ECU diagnostic lamp | ||||
| Option brand | DEEPSEA,Smartgen,ComAp | |||
| Optional accessories | ||||
| Engine | Alternator | Electrical system | ||
| Water Heater | Anti-condensation heater | Anti-condensation heater | ||
| Oil preheater | PMG | Unit control screen with three remote functions | ||
| Air starting motor | Parallel | ATS automatic load transfer screen | ||
| Heavy Air Filter for Desert | Generators of other temperature rise grades | Full-automatic parallel screen for multiple units | ||
| Heavy duty secondary muffler | RTD temperature sensor, 2 per phase | Remote control system separate from unit | ||
| Fuel system | Other | Cooling system | ||
| 12/24h Base tank | Super Silent Canopy | Split water tank | ||
| Oil - water separator | Static sound box generator set |
|
||
| Fully automatic oil supply system | Vehicle-mounted power generation vehicle | Heat exchanger and external circulation cooling tower | ||
| Integrated Fuel Tank | Towing generator set | Marine cooling system | ||
| Delivery Date of Diesel Generator Set | ||||
| Spot goods | QTY(Set) | 12 – 24 Sets | 24 – 120 Sets | |
| Delivery Time | 7-15 Days | 15 – 25 Days | ||
| Custom | Delivery Time | 20 Days | 20 – 30 Days | |
Usage:
Ideal for powering critical loads during power outages or as a primary power source in remote locations, the Soundproof 113kVA Generating Set is perfect for construction sites, factories, hospitals, data centers, and more. Its silent operation makes it an excellent choice for events and temporary installations requiring reliable, quiet power.
Advantages:
- Reduced Noise Pollution: The soundproof design significantly minimizes noise emissions, promoting a peaceful working or living environment.
- Enhanced Safety: The inclusion of a robust controller system and protective features ensures safe operation, protecting against overloads and faults.
- Versatile Applications: Suitable for a wide range of industries and applications, offering flexibility and scalability.
- Eco-Friendly: Efficient fuel consumption and low emissions contribute to a greener, more sustainable future.
Options:
- Extended Warranty: Choose from various warranty packages to protect your investment and ensure peace of mind.
- Customized Enclosure: Request a customized soundproof enclosure to match your specific requirements or branding.
- Remote Monitoring: Upgrade to a remote monitoring system for real-time performance tracking and predictive maintenance.
FAQs:
Q: How many hours of runtime does the fuel tank provide?
A: The fuel tank is designed for approximately 8 hours of continuous operation at full load, ensuring extended runtime without refueling.
Q: Can I operate the generator in parallel with another unit?
A: Yes, the generator is parallel-ready, allowing you to connect multiple units for increased power output and redundancy.
Q: What is the noise level of the Soundproof 113kVA Generating Set?
A: The soundproof enclosure significantly reduces noise levels, making the generator virtually silent in operation. Exact noise levels may vary depending on the ambient environment.
Experience the power of silence with our Soundproof 113kVA Generating Set, powered by a reliable Deutz Diesel Generator. Order now and enjoy uninterrupted, eco-friendly power for all your needs.
