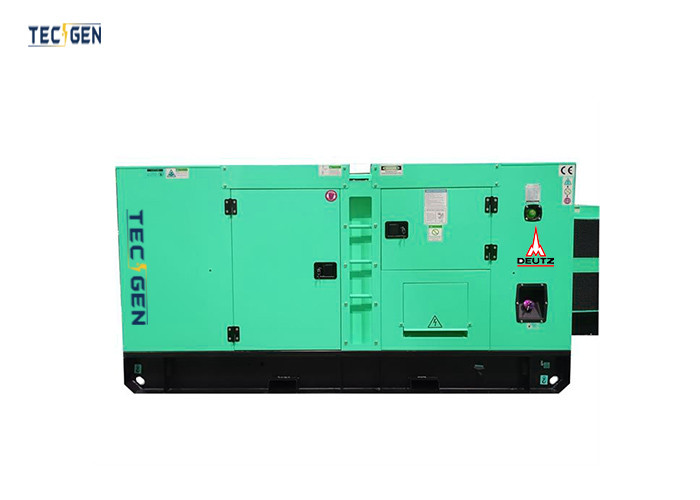

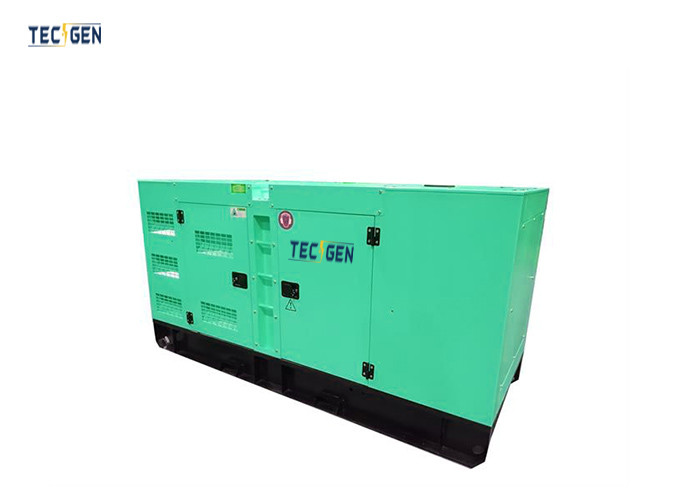

1800rpm 110kW Diesel Power Genset 60Hz Generator With Leroy Somer Alternator
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG138DESD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 15 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent | Series | Tecgen Deutz |
|---|---|---|---|
| Frequency | 60Hz | Speed | 1800rpm |
| Engine | BF4M1013EC G2 | Cylinder | 4 Cylinder |
| Alternator | Leroy Somer TAL-A44-H | Standard Controller | DEIF |
| Highlight | 110kW diesel power genset,Leroy Somer diesel power genset,1800rpm diesel power genset |
||
Product Description
1800rpm 110kW diesel power genset 60Hz generator with Leroy Somer alternator
Product Description: 1800RPM 110kW Deutz Diesel Power Genset - Reliable Power Solution
Standard Features:
Introducing our flagship 1800RPM 110kW Deutz Diesel Power Genset, the TG138DED6/TG138DESD6 series, designed for both open and silent operation, ensuring seamless power supply in any setting. Powered by the robust BF4M1013EC G2 engine from Deutz, renowned for its durability and efficiency, this genset delivers prime power of 100kW/125kVA and standby power of 110kW/138kVA, making it ideal for a wide range of industrial, commercial, and residential applications. Operating at a standard frequency of 60Hz and a voltage of 208/120V, it offers flexible phase configurations with 3-phase, 4 or 12 wires, catering to diverse power needs.
Key Features:
- High Performance: Equipped with a turbocharged & CAC engine, the BF4M1013EC G2 ensures optimal power output and fuel efficiency, delivering 111kW of prime power.
- Reliable Engine: The Deutz engine boasts a 6-cylinder configuration with a displacement of 4.76L, ensuring smooth and reliable operation under heavy loads.
- Advanced Control System: Managed by the DEIF SGC-420 controller, featuring AMF module for automatic start/stop, static with auto battery charger, and emergency stop push button, ensuring ease of use and maintenance.
- Versatile Design: Available in both open and silent models, the TG138DED6/TG138DESD6 series adapts to various environments, minimizing noise pollution in sensitive areas.
- Durable Components: Leroy Somer TAL-A44-H alternator with H-class insulation and IP23 enclosure ensures long-lasting performance and protection against harsh conditions.
1800rpm 110kW Diesel Power Genset Datasheets:
| Technical Specification: | ||
| 1800rpm 110kW Diesel Power Genset Specification | ||
| Genset Model | TG138DED6 | TG138DESD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Rate Speed | 1800RPM | |
| Voltage | 208/120V | |
| Phase | 3 Phase, 4 or 12 Wires | |
| Rate Current | 347.0A | |
| Prime Power | 100kW / 125kVA | |
| Standby Power | 110kW / 138kVA | |
| Engine Model | BF4M1013EC G2 | |
| Alternator Model | TAL-A44-H | |
| Controller | DEIF SGC-420 | |
| Breaker | CHNT | |
| ATS | Option | |
| Output socket | ||
| Fuel Tank | 200L | |
| Weight & Dimensions | ||
| Length (mm) | 2240 | 2700 |
| Width (mm) | 900 | 1020 |
| Height (mm) | 1400 | 1530 |
| Weight (kgs) | 1155 | 1820 |
| Engine Specification | ||
| Brand | Deutz | |
| Engine Model | BF4M1013EC G2 | |
| Prime power | 111kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged & CAC | |
| No. of cylinders | 6 | |
| Speed | 1800RPM | |
| Bore of Stroke (mm) | 108 x 130 | |
| Displacement (L) | 4.76 | |
| Cooling | Water Cooled | |
| Compression Ratio | 19:1 | |
| Engine Oil capacity (L) | 7.4 | |
| Coolant Capacity ( In radiator) | 7.4 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 60Hz | |
| 100% Load (L/h) | 28 | |
| 75% Load (L/h) | 21.1 | |
| 50% Load (L/h) | 14.5 | |
| 25% Load (L/h) | 8.3 | |
| Alternator Specification | ||
| Brand | Leroy Somer | |
| Model | TAL-A44-H | |
| Rate Output | 110kW | |
| Speed | 1800RPM | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | DEIF | |
| Model | SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Usage:
Ideal for use in hospitals, data centers, construction sites, remote locations, and as emergency backup power in commercial buildings, our 1800RPM 110kW Deutz Diesel Genset provides uninterrupted power supply during power outages or as a primary source of energy. Its compact design and easy installation make it a versatile solution for diverse applications.
Advantages:
- Energy Efficiency: With fuel consumption as low as 8.3L/h at 25% load, the genset significantly reduces operational costs.
- Low Maintenance: The electric governor and dry element air filter facilitate easy maintenance, ensuring prolonged service life.
- Environmentally Friendly: Compliant with international emission standards, the genset minimizes its carbon footprint.
- Comprehensive Protection: Equipped with voltage regulators and overload protection, it safeguards against voltage fluctuations and ensures safe operation.
Optional Equipment:
- ATS Box for seamless transfer between primary and backup power sources.
- Remote Control for convenient monitoring and control from a distance.
- Daily Fuel Tank for extended runtime without refueling.
- Engine and Water Heaters for cold weather operation.
- Parallel Panel for connecting multiple gensets for increased power output.
- Fuel-Water Separator to enhance fuel purity and engine life.
- Trailer Type for easy transportation and relocation.
- 3000 Hours Spare Parts Kit for maintenance readiness.
FAQs:
Q: What is the maximum altitude this genset can operate at?
A: The 1800RPM 110kW Deutz Diesel Genset can operate efficiently up to an altitude of 1000 meters.
Q: How does the automatic start/stop function work?
A: The AMF module in the DEIF SGC-420 controller monitors the incoming power supply. In case of a power outage, it automatically starts the genset and switches to generator power. Once the main power is restored, it safely shuts down the genset.
Q: What is the fuel consumption at full load?
A: At 100% load, the genset consumes approximately 28 liters of fuel per hour.
Experience the reliability and efficiency of our 1800RPM 110kW Deutz Diesel Power Genset. Contact us today to learn more about our products and services tailored to your specific power needs.
