24kW YTO Generators 3 Cylinder Genset With Soundproof Enclosed Canopy For Outdoor Use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG33YTS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | YTO Diesel Generator | Type | Silent |
|---|---|---|---|
| Engine Brand | YTO | Engine Model | YT3B2-D |
| Engine Cylinder | 3 Cylinder | Engine Power | 33kW Prime |
| Rate Output Of Genset | 30kVA / 24kW | Alternator | Leroy Somer TAL-A40-G |
| Highlight | 24kW yto generators,3 Cylinder yto generators,Outdoor Use yto generators |
||
Product Description

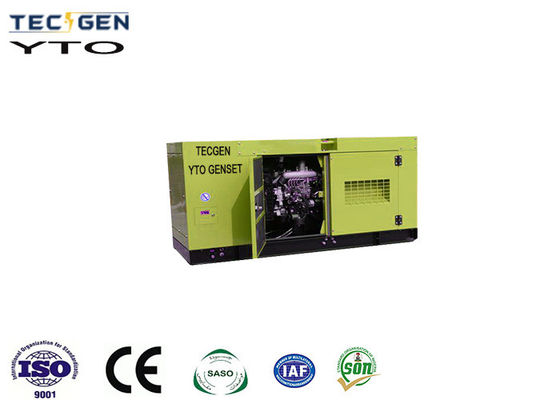

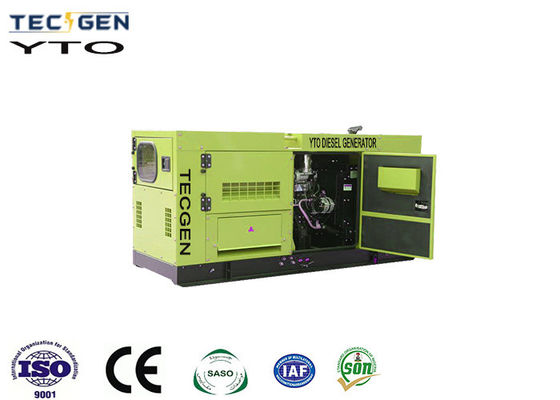

24kW YTO generators 3 cylinder genset with soundproof enclosed canopy for outdoor use
Product Description: 24kW YTO Generators - Reliable 3 Cylinder Genset for Powerful Backup
Standard Features:
Introducing the 24kW YTO Generators, a robust and efficient power solution designed for a wide range of applications. Boasting a 3-cylinder YT3B2-D diesel engine, this genset delivers a prime power output of 24kW and a standby power of 26kW, ensuring uninterrupted power supply during emergencies or as a reliable backup. With a frequency of 50Hz and a speed of 1500rpm, it seamlessly integrates into your power system, providing stable and clean energy.
Key Features:
- Powerful Engine: Equipped with a turbo-charged 3-cylinder YTO diesel engine, the TG33YTS model offers exceptional performance and durability, making it a top choice for industrial and commercial applications.
- Silent Operation: Encased in a soundproof galvanized steel canopy, the generator operates at low noise levels, ideal for noise-sensitive environments.
- High Efficiency: The Leroy Somer alternator with a power factor of 0.8 ensures maximum energy conversion, reducing fuel consumption and operating costs.
- Advanced Control System: Featuring a DEIF SGC-420 controller, it offers comprehensive monitoring and protection, including automatic start/stop, ATS connectivity, and advanced alarms for over/under speed, low oil pressure, and more.
- Versatile Fuel Capacity: With a standard fuel tank of 70L, the genset can run for up to 8-24 hours, depending on the load, ensuring continuous power supply.
24kW YTO Generators Specifications:
| 24kW YTO Generators Details | |||
| Genset | Type | Silent | |
| Model | TG33YTS | ||
| Frequency | 50Hz | ||
| Speed | 1500rpm | ||
| Voltage | 230/400V | ||
| Phase | Three Phase | ||
| Prime Power | 30kVA / 24kW | ||
| Standby Power | 33kVA / 26kW | ||
| Rate Current | 43.3A | ||
| Breaker | 63A Delixi Breaker | ||
| Dimensions | L2250 x W1000 x H1180mm | ||
| Weight | 900kgs | ||
| Fuel Capacity | 70L | ||
| General Features | |||
| Engine | YTO | Radiator | 50degrees max, fans driven by belt with safety guard |
| Alternator | Leroy Somer | Charger | 24V trickle charger |
| Controller | DEIF SGC-420 | Governor | Mechanical or electronic |
| Circuit Breaker | DELIXI / CHNT / ABB | Canopy | Soundproof made by galvanized steel plate |
| ATS | AISIKAI/ABB | Filters | Dry type air filter, fuel filter, oil filter |
| Fuel Tank | 8hours / 12hours / 24hours, or as required | Absorber | High strength rubber |
| Start System | 12/24V electric start | Muffler | Ripple flex exhaust pipe, exhaust siphon, flange |
| Battery | Varta Maintenance free type | Manuals | Complete with engine, alternator and genset |
| YTO Diesel Engine Technical Data | |||
| Brand | YTO | ||
| Engine Model | YT3B2-D | ||
| Rated Power | 33kW | ||
| Cylinder | 3 Cylinder | ||
| Bore*Stroke | 108*120mm | ||
| Displacement | 3.3L | ||
| Aspiration | Turbo-charged | ||
| Speed | 1500rpm | ||
| Cooling System | Water Cooled | ||
| Fuel Consumption at 100% Load | 6.9L | ||
| Speed Governor | Electric | ||
| Start System | 12/24V Electric Starter | ||
| Option Engine Brands | |||
| Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC | |||
| AC Alternator Technical Data | |||
| Brand | Leroy Somer | ||
| Alternator Model | TAL-A40-G | ||
| Rated Power | 24kW | ||
| Speed | 1500rpm | ||
| Frequency | 50Hz | ||
| Phase | Three Phase, Four Wire | ||
| Power Factor | 0.8 | ||
| Exciter type | Single bearing, brushless, Self-excited | ||
| Voltage adjust range | ≥5% | ||
| Insulation Grade | H | ||
| Protection Grade | IP23 | ||
| Option Alternator Brands | |||
| Stamford, Leory Somer, Meccalte, Marathon, Tecgen | |||
| Controller System | |||
| Brand | DEIF | ||
| Model | SGC-420 | ||
| Functions | Control with AMF module | ||
| Static with auto. battery charger | |||
| Emergency stop push button | |||
| ATS Connection & RS485 & CANbus & PLS & BTS Functions | |||
| Alarms | Over and Under Speed | ||
| Low and High Battery Voltage | |||
| Start and Stop Failure | |||
| Charge Fail | |||
| Over Current | |||
| Under / Over Generator Voltage | |||
| Low Oil Pressure | |||
| Emergency Stop | |||
| High Engine Temperature | |||
| Over Load | |||
| OPTIONAL EQUIPMENTS | |||
| Daily Fuel Tank | Parallel Panel | Remote Control Panel | Soundproof Type |
| Engine Heater | Permanent Magnet | Auto. Transfer Switch | Trailer Type |
| Water Heater | Generator (PMG) | Switch Box | Spare Parts |
Usage:
The 24kW YTO Generators are ideal for powering small to medium-sized businesses, construction sites, hospitals, data centers, and residential complexes requiring a reliable backup power source. Its compact design and easy maintenance make it a practical solution for both indoor and outdoor installations.
Advantages:
- Durability: The YTO engine is renowned for its long service life and low maintenance requirements, ensuring cost-effective operation.
- Flexibility: With options for different engine brands and alternator manufacturers, you can customize your genset to suit your specific requirements.
- Eco-Friendly: The water-cooled cooling system and efficient fuel consumption minimize environmental impact.
- Comprehensive Protection: The integrated safety features and advanced alarms protect your investment and ensure safe operation.
Optional Equipment:
- Daily fuel tank
- Parallel panel for increased power capacity
- Remote control panel for convenient operation
- Engine heater for cold weather starts
- Permanent magnet generator (PMG)
- Automatic transfer switch (ATS)
- Trailer type for easy transportation
FAQ:
Q: What is the maximum fuel capacity of the 24kW YTO Generators?
A: The standard fuel tank capacity is 70L, but custom options are available upon request.
Q: Can I connect multiple gensets in parallel?
A: Yes, with the optional parallel panel, you can connect multiple 24kW YTO Generators for increased power output.
Q: Is the generator noise-free?
A: While it's not completely noise-free, the soundproof canopy significantly reduces noise levels, making it suitable for most environments.
Q: What type of maintenance does the generator require?
A: Regular checks on oil levels, fuel filters, and air filters are recommended. Detailed maintenance schedules are provided with the manual.
With its powerful 3-cylinder engine, advanced control system, and silent operation, the 24kW YTO Generators are the perfect solution for all your backup power needs. Experience reliable and efficient power generation today!
