Silent Enclosed 65kVA Genset YTO Diesel Generator Powered By 1500rpm Diesel Engine
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG72YTS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 10 - 25 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | YTO DIESEL GENERATOR | Type | Open / Silent / Mobile / Super Silent Type |
|---|---|---|---|
| Frequency | 50Hz / 1500rpm | Phase No. | 3 Phase, 4 Wire |
| Engine Brand | YTO | Engine Model | LR4B3Z-D |
| Controller | DEIF / DEEPSEA / Smartgen / ComAp / Tengen | Genset Prime Power | 52kW / 65kVA |
| Highlight | Silent enclosed diesel engine genset,65kVA diesel engine genset,1500rpm diesel engine genset |
||
Product Description

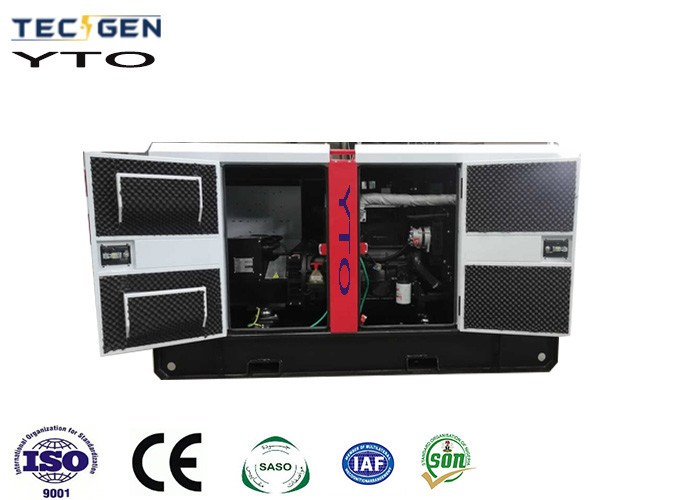

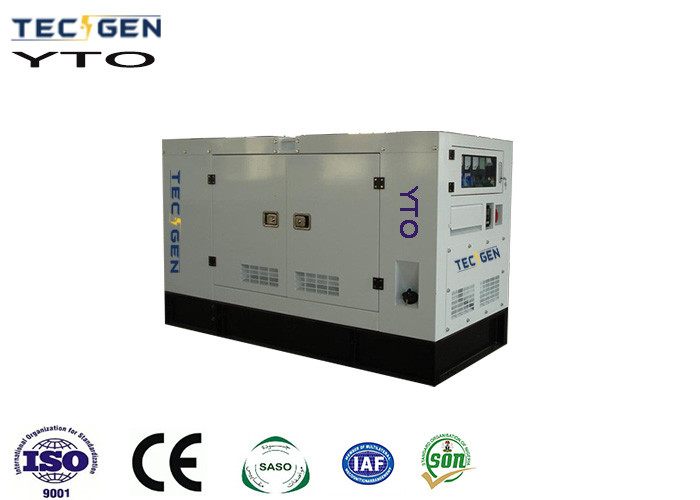

Silent enclosed 65kVA genset YTO diesel generator powered by 1500rpm diesel engine
Product Description: Silent Enclosed 65kVA Genset - Powerful & Reliable YTO Diesel Generator
Standard Features:
Introducing our premium Silent Enclosed 65kVA Genset, powered by the renowned YTO diesel engine, a symbol of durability and efficiency. This state-of-the-art generator boasts a 50Hz frequency, operating seamlessly at 1500rpm, ensuring a smooth and consistent power output. With a versatile voltage range of 220/380V, it caters to a wide array of industrial and residential needs. The AC three-phase capability ensures balanced power distribution, making it ideal for powering sensitive equipment and appliances.
Key Features:
- Silent Operation: Designed with a soundproof canopy crafted from galvanized steel, our genset operates at whisper-quiet levels, minimizing noise pollution and making it suitable for noise-sensitive environments.
- Powerful Engine: Equipped with the YTO LR4B3Z-D diesel engine, rated at 62kW, this generator delivers prime power of 52kW/65kVA and standby power of 57kW/72kVA, ensuring reliable power backup during emergencies or for continuous use.
- Advanced Controller: Featuring the DEIF SGC-420 controller, it offers comprehensive monitoring and protection functions, including automatic mains failure (AMF) module, auto battery charging, and emergency stop push button, ensuring seamless operation and quick response to any unexpected situations.
- High-Quality Components: From the Stamford UCI 224F alternator to DELIXI/CHNT/ABB circuit breakers, every component is selected for its superior performance and durability, ensuring long-lasting reliability.
- Flexible Fuel Capacity: With a fuel tank capacity of 130L, this genset can run for extended periods, with options for 8 hours, 12 hours, or 24 hours of continuous operation, tailored to your specific requirements.
Silent Enclosed 65kVA Genset Specifications:
| Silent Enclosed 65kVA Genset Details | |||
| YTO Genset | Type | Silent | |
| Model | TG72YTS | ||
| Frequency | 50Hz | ||
| Speed | 1500rpm | ||
| Voltage | 220/380V | ||
| Phase | AC Three Phase | ||
| Prime Power | 52kW / 65kVA | ||
| Standby Power | 57kW / 72kVA | ||
| Rate Current | 98.8A | ||
| Breaker | 100A Delixi Breaker | ||
| Dimensions | L2450 x W1050 x H1400mm | ||
| Weight | 1550kgs | ||
| Fuel Capacity | 130L | ||
| General Features | |||
| Engine | YTO | Radiator | 50degrees max, fans driven by belt with safety guard |
| Alternator | Stamford | Charger | 24V trickle charger |
| Controller | DEIF SGC-420 | Governor | Mechanical or electronic |
| Circuit Breaker | DELIXI / CHNT / ABB | Canopy | Soundproof made by galvanized steel plate |
| ATS | AISIKAI/ABB | Filters | Dry type air filter, fuel filter, oil filter |
| Fuel Tank | 8hours / 12hours / 24hours, or as required | Absorber | High strength rubber |
| Start System | 12/24V electric start | Muffler | Ripple flex exhaust pipe, exhaust siphon, flange |
| Battery | Varta Maintenance free type | Manuals | Complete with engine, alternator and genset |
| YTO Diesel Engine Technical Data | |||
| Brand | YTO | ||
| Engine Model | LR4B3Z-D | ||
| Rated Power | 62kW | ||
| Cylinder | 4 Cylinder | ||
| Bore*Stroke | 108*125mm | ||
| Displacement | 4.58L | ||
| Aspiration | Turbo-charged | ||
| Speed | 1500rpm | ||
| Cooling System | Water Cooled | ||
| Fuel Consumption at 100% Load | 14.9L | ||
| Speed Governor | Electric | ||
| Start System | 12/24V Electric Starter | ||
| Option Engine Brands | |||
| Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC | |||
| AC Alternator Technical Data | |||
| Brand | Stamford | ||
| Alternator Model | UCI 224F | ||
| Rated Power | 52kW | ||
| Speed | 1500rpm | ||
| Frequency | 50Hz | ||
| Phase | Three Phase, Four Wire | ||
| Power Factor | 0.8 | ||
| Exciter type | Single bearing, brushless, Self-excited | ||
| Voltage adjust range | ≥5% | ||
| Insulation Grade | H | ||
| Protection Grade | IP23 | ||
| Option Alternator Brands | |||
| Stamford, Leory Somer, Meccalte, Marathon, Tecgen | |||
| Controller System | |||
| Brand | DEIF | ||
| Model | SGC-420 | ||
| Functions | Control with AMF module | ||
| Static with auto. battery charger | |||
| Emergency stop push button | |||
| ATS Connection & RS485 & CANbus & PLS & BTS Functions | |||
| Alarms | Over and Under Speed | ||
| Low and High Battery Voltage | |||
| Start and Stop Failure | |||
| Charge Fail | |||
| Over Current | |||
| Under / Over Generator Voltage | |||
| Low Oil Pressure | |||
| Emergency Stop | |||
| High Engine Temperature | |||
| Over Load | |||
| OPTIONAL EQUIPMENTS | |||
| Daily Fuel Tank | Parallel Panel | Remote Control Panel | Soundproof Type |
| Engine Heater | Permanent Magnet | Auto. Transfer Switch | Trailer Type |
| Water Heater | Generator (PMG) | Switch Box | Spare Parts |
Usage:
Ideal for use in hospitals, data centers, construction sites, hotels, and residential areas where a reliable and silent power source is crucial. It provides backup power during power outages or serves as a primary power source in remote locations.
Advantages:
- Efficient Fuel Consumption: The turbocharged engine consumes just 14.9L of fuel per hour at full load, ensuring cost-effective operation.
- Easy Maintenance: Designed for hassle-free maintenance, the accessible filters and components make routine checks and replacements swift and straightforward.
- Versatile Options: With a range of optional extras like daily fuel tanks, remote control panels, and auto transfer switches, you can customize your genset to suit your unique needs.
- Enhanced Safety: Equipped with multiple alarms for over/under speed, low/high battery voltage, and low oil pressure, among others, ensuring your generator runs safely at all times.
Optional Equipments:
- Daily Fuel Tank: For extended runtime without frequent refueling.
- Parallel Panel: Enables connection of multiple generators for increased power output.
- Remote Control Panel: Provides remote monitoring and control capabilities for added convenience.
- Engine Heater: Ensures easy startup in cold weather conditions.
FAQ:
Q: How loud is the Silent Enclosed 65kVA Genset?
A: The genset is designed with a soundproof canopy, significantly reducing noise levels to make it suitable for noise-sensitive environments.
Q: What is the fuel consumption of this generator at full load?
A: The YTO diesel engine consumes approximately 14.9L of fuel per hour at full load, ensuring efficient operation.
Q: Can I customize the fuel tank capacity?
A: Yes, we offer various fuel tank options, including 8 hours, 12 hours, or 24 hours of continuous runtime, or as per your specific requirements.
Experience the peace of mind that comes with the Silent Enclosed 65kVA Genset, a YTO Diesel Generator that combines powerful performance, silent operation, and advanced technology. Your reliable partner for uninterrupted power supply
