Continuous 144kW Silent Genset Deutz Generator With Leroy Somer Alternator For Continuous Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Silent Type | Noise Level | 72dB (A) @ 7m |
|---|---|---|---|
| Speed | 1500rpm | Engine Model | Deutz BF6M1013EC G2 |
| Alternator Model | TAL-A44-L | Rate Power | 144kW / 180kVA |
| Standby Output | 158kW / 198kVA | Circuit Breaker | DELIXI / CHNT / ABB |
| Highlight | 144kW Deutz generator,Leroy Somer Deutz generator,Continuous Deutz generator |
||
Product Description

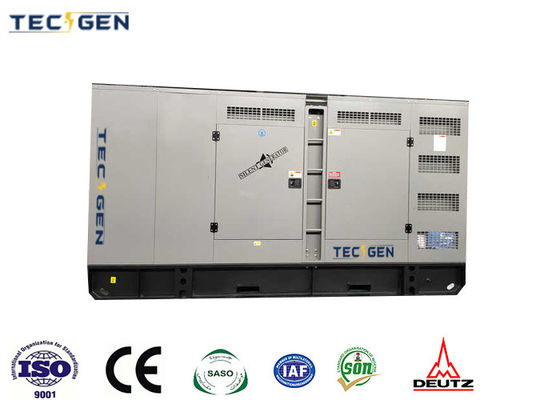

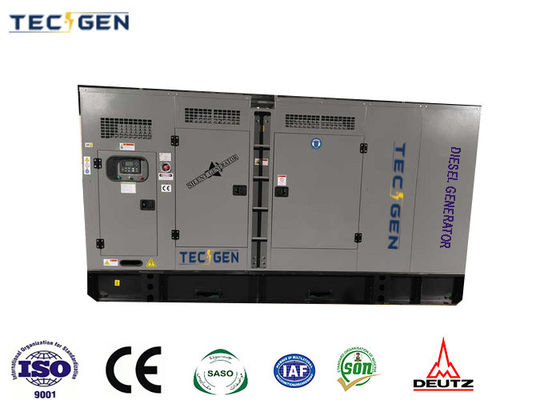

Continuous 144kW silent genset Deutz generator with Leroy Somer alternator for continuous use
Product Description: Continuous 144kW Silent Genset - Powerful Reliability Meets Silent Efficiency
Standard Features:
Introducing the TG198DE and TG198DES, our flagship Continuous 144kW Silent Gensets, designed for ultimate performance and minimal disruption. These gensets are equipped with a Deutz BF6M1013EC G2 engine, renowned for its robustness and fuel efficiency. Generating a stable 50Hz frequency with a versatile 415/240V voltage output, they cater to a wide range of industrial and commercial applications. The 3-phase 4-wire configuration ensures seamless power distribution, while the Smartgen HGM6120N controller ensures precise operation and easy monitoring.
Key Features:
- Powerful Engine: Powered by the dependable Deutz BF6M1013EC G2, delivering a prime power of 144kW/180kVA and a standby power of 158kW/198kVA, these gensets are ready to tackle even the most demanding power requirements.
- Silent Operation: The TG198DES model boasts a sound-insulated enclosure, ensuring operation at a whisper-quiet level, perfect for noise-sensitive environments.
- Efficient Fuel Consumption: With optimized fuel consumption rates ranging from 10.9L/h at 25% load to 38.5L/h at full load, these gensets minimize operational costs while maximizing runtime.
- Advanced Controller: The Smartgen HGM6120N controller offers AMF module control, automatic battery charging, emergency stop functionality, and CANBUS & MPU compatibility, ensuring seamless integration and operation.
- Large Fuel Capacity: A generous 312L fuel tank ensures extended runtime between refills, reducing downtime and maintenance efforts.
Continuous 144kW Silent Genset General Datasheets:
| Technical Specification: | ||
| Continuous 144kW Silent Genset Specification | ||
| Genset Model | TG198DE | TG198DES |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 415/240V | |
| Phase | 3 Phase 4 Wire | |
| Rate Current | 250.4A | |
| Prime Power | 144kW / 180kVA | |
| Standby Power(KW/KVA | 158kW / 198kVA | |
| Engine Model | BF6M1013EC G2 | |
| Alternator Model | TAL-A44-L | |
| Controller | Smartgen HGM6120N | |
| Fuel Tank Capacity | 312L | |
| Genset Weight And Dimensions | ||
| Length (mm) | 2350 | 3500 |
| width (mm) | 1100 | 1250 |
| Height (mm) | 1600 | 1750 |
| Weight (kgs) | 1780 | 2600 |
| Deutz Engine Specification | ||
| Engine Brand | Deutz | |
| Engine Model | BF6M1013EC G2 | |
| Standby power (kw) | 153 | |
| Injection | Indirect | |
| Aspiration | Turbocharged & CAC | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 108 x130 | |
| Displacement (L) | 7.15 | |
| Cooling | water | |
| Compression Ratio | 19:1 | |
| Engine Oil capacity (L) | 9.8 | |
| Coolant Capacity ( In radiator) | 9.8 | |
| Governor | Electric (EMR) | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 50Hz | |
| 100% Load (L/h) | 38.5 | |
| 75% Load (L/h) | 28.9 | |
| 50% Load (L/h) | 19.6 | |
| 25% Load (L/h) | 10.9 | |
| Leroy Somer Alternator Specification | ||
| Brand | Leroy Somer | |
| Model | TAL-A44-L | |
| Rate Output | 144kW | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | single | |
| Controller System | ||
| Brand | Smartgen | |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| CANBUS & MPU VERSIONS | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Usage:
Ideal for hospitals, data centers, construction sites, hotels, and anywhere reliable backup or primary power is crucial. The Continuous 144kW Silent Gensets can be relied upon to keep operations running smoothly, even during power outages or emergencies.
Advantage:
- Durability & Reliability: Deutz's reputation for building long-lasting engines combined with Leroy Somer's quality alternators ensures years of trouble-free service.
- Versatile Power Output: Suitable for both prime and standby power applications, these gensets offer flexibility in deployment.
- Eco-Friendly: Low fuel consumption and minimal noise emissions make them environmentally conscious choices.
- Easy Maintenance: Accessible components and a straightforward design facilitate routine maintenance and repairs.
Optional Equipment:
- ATS Box: Automatic Transfer Switch for seamless power transfer between the grid and generator.
- Remote Control: Monitor and control the genset remotely for added convenience.
- Daily Fuel Tank: Extend runtime further with an additional fuel supply.
- Engine & Water Heaters: Ensure quick startup in cold weather conditions.
- Parallel Panel: Connect multiple gensets for increased power output or redundancy.
- Fuel-Water Separator: Protect the engine from contamination.
- Trailer Type: For easy transportation and deployment.
- 3000 Hours Spare Parts Kit: Keep a stock of essential replacement parts on hand.
FAQs:
Q: What is the maximum altitude these gensets can operate at?
A: The Leroy Somer TAL-A44-L alternator is rated for altitudes up to 1000 meters, ensuring optimal performance even in higher elevations.
Q: How do I monitor the genset's performance?
A: The Smartgen HGM6120N controller provides comprehensive monitoring capabilities, including real-time status updates and alarms, accessible through its intuitive interface.
Q: Can I customize the fuel tank capacity?
A: While the standard fuel tank capacity is 312L, custom solutions can be discussed with our sales team to suit your specific requirements.
By choosing the Continuous 144kW Silent Genset, you're investing in a reliable, efficient, and eco-friendly power solution that will keep your operations running smoothly for years to come. With Deutz Generator technology at its core, you can trust in the unbeatable combination of power and precision.
