Diesel 80kVA Power Genset Chinese Diesel Generator Powered By 4 Cylinder Diesel Engine

Diesel 80kVA power genset Chinese diesel generator powered by 4 cylinder diesel engine

Standard Features of the Diesel 80kVA Power Genset

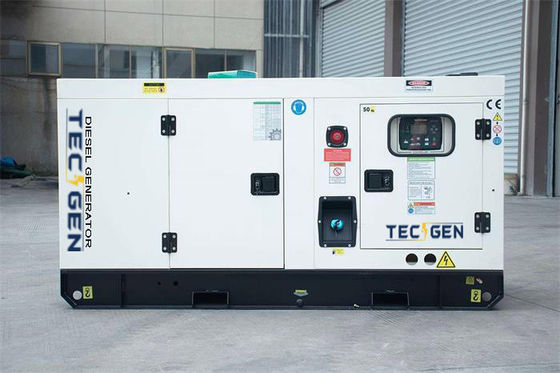

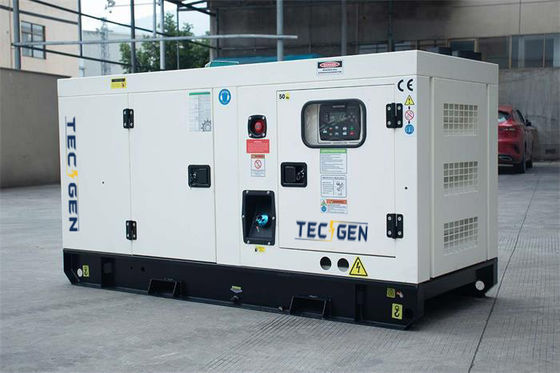

Introducing the TG88QCS, a robust Diesel 80kVA Power Genset manufactured in China and designed to meet the diverse power needs of various industries. This generator set combines reliability, efficiency, and durability in one compact package. With a rated power of 64kW and a standby power of 70kW, the TG88QCS ensures uninterrupted power supply, ideal for use as a primary or backup power source.

Powered by a Quanchai 4J1-30 diesel engine, this genset boasts a four-stroke, water-cooling, direct injection configuration, delivering rated power of 85kW at 1500rpm. The engine features a turbocharged and intercooled intake system, enhancing performance and fuel efficiency. The Tecgen TGI224S64 alternator, made with 100% pure copper, provides a rated power of 80kW with an impressive efficiency of 92.50%. The brushless, self-excitation design ensures stable voltage regulation within ±1%, making it suitable for sensitive electronic loads.

Key Features

• High Power Output: With a standby power of 88kVA and a rated power of 64kW, the TG88QCS can handle heavy loads with ease.
• Efficient Engine: The Quanchai 4J1-30 engine offers fuel consumption of just 220g/Kw*h at 100% load, ensuring cost-effective operation.
• Reliable Alternator: The Tecgen alternator ensures stable and clean power output, ideal for sensitive equipment.
• Advanced Control System: The DEIF SGC-420 control system offers comprehensive monitoring and protection features, ensuring safe and reliable operation.
• Compact Design: The genset's compact dimensions (L2750 x W1100 x H1500 mm) and gross weight of 1700 kg make it easy to transport and install.

Diesel 80kVA Power Genset Specifications:

Usage

The Diesel 80kVA Power Genset is perfect for a wide range of applications, including industrial, commercial, and residential use. It can serve as a primary power source for small to medium-sized businesses, or as a backup generator for critical infrastructure such as hospitals, data centers, and emergency services. The genset's ability to handle heavy loads and provide stable power makes it an ideal choice for construction sites, mining operations, and agricultural applications.

Advantages

• Fuel Efficiency: The Quanchai engine's advanced design ensures low fuel consumption, reducing operational costs.
• Durability: Built with high-quality materials and rigorous testing, the TG88QCS is designed to withstand harsh environments and provide long-lasting performance.
• Ease of Maintenance: Regular maintenance tasks such as oil changes and filter replacements are straightforward, ensuring the genset remains in optimal condition.
• Versatility: With optional equipment such as an integrated fuel tank, ATS box, and sync panel, the genset can be customized to meet specific needs.

Options

• Integrated Fuel Tank: Provides additional fuel storage, allowing for extended operation without the need for frequent refueling.
• ATS Box/Cabinet: Automatically transfers power between the genset and the main grid, ensuring seamless power supply during outages.
• PMG Alternator: Offers enhanced power quality and stability, ideal for sensitive loads.
• Engine Heater and Water Heater: Ensures the genset is ready for operation in cold weather conditions.
• Fuel-Water Separator: Protects the engine from fuel contamination, extending its lifespan.

FAQ

• Q: What is the warranty period for the Diesel 80kVA Power Genset?
  A: The genset comes with a comprehensive warranty covering all major components. Please refer to the warranty document for details.
• Q: Can the genset be customized to meet specific needs?
  A: Yes, optional equipment such as an integrated fuel tank, ATS box, and sync panel can be added to the genset to meet specific requirements.
• Q: How often should the genset be maintained?
  A: Regular maintenance is crucial for ensuring the genset's longevity and performance. Please refer to the maintenance timetable provided with the genset for details.

In conclusion, the Diesel 80kVA Power Genset from China is a reliable, efficient, and versatile power solution. Whether you need a primary power source or a backup generator, the TG88QCS offers unparalleled performance and value. With its advanced features and customizable options, this genset is sure to meet your power needs, no matter the application. For more information on the Diesel 80kVA Power Genset and other China Diesel Generators, please visit our website or contact us today.
