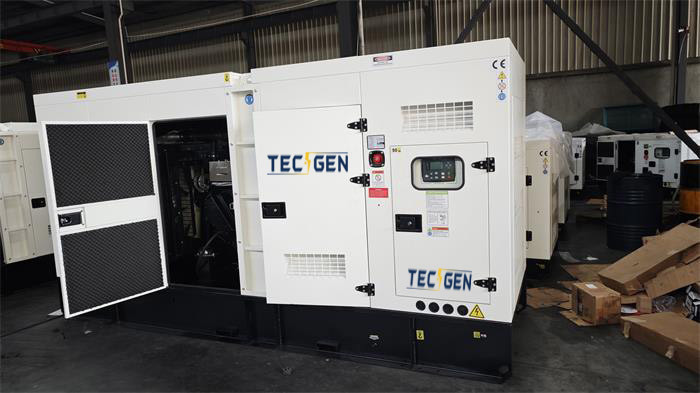

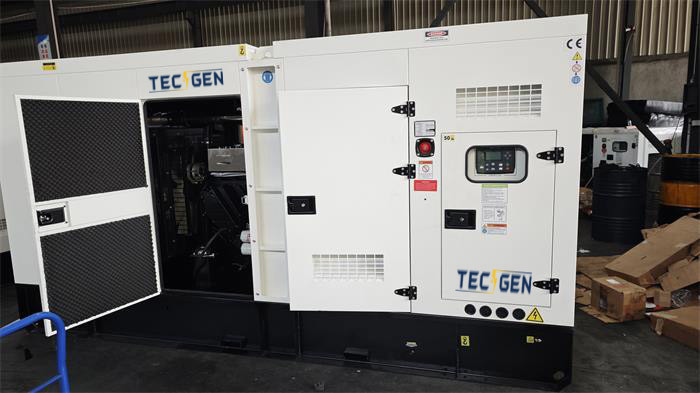

Diesel 80kVA Power Genset Chinese Diesel Generator Powered By Baudouin Diesel Engine

Diesel 80kVA power genset Chinese diesel generator powered by Baudouin diesel engine

Standard Features of the Diesel 80kVA Power Genset

Introducing our state-of-the-art Diesel 80kVA Power Genset, designed to meet the diverse power needs of various industries. Powered by a robust Baudouin 4M10G88/5 engine, this genset is engineered for reliability, efficiency, and durability. Standard features include an electric governor for precise control, a frequency of 50Hz, and a rated voltage of 220/380V, ensuring seamless integration into your existing power systems. With a rated power of 64kW and a standby power of 70kW, this genset is ready to handle peak loads with ease.

Key Features That Set Our Genset Apart

• Baudouin Engine Technology: The heart of our genset is the Baudouin 4M10G88/5 engine, known for its four-stroke, water-cooled, direct injection configuration. This engine provides a rated power of 72kW at 1500rpm, ensuring consistent and reliable power output.
• Efficient Alternator: The Leroy Somer TAL-A44-C alternator, made with 100% pure copper, boasts an efficiency of 92.50% and voltage regulation of <=±1%. Its brushless, self-excitation feature eliminates the need for regular maintenance, enhancing overall reliability.
• Advanced Control System: Equipped with the DEIF SGC-420 control system, our genset offers a wide range of functionalities, including AMF/ATS, RS485 & CAN communication, PLC & BTN, and various protective features. This ensures that your genset operates safely and efficiently under all conditions.
• Compact and Durable Design: With dimensions of L2750 x W1100 x H1500mm and a gross weight of 1700kg, our genset is designed for easy transportation and installation. The rugged construction ensures that it can withstand the harshest environments.

Diesel 80kVA Power Genset Specifications:

Usage of the Diesel 80kVA Power Genset

Our Diesel 80kVA Power Genset is ideal for a wide range of applications, including but not limited to:

• Industrial Use: Perfect for factories, workshops, and construction sites where a reliable power source is crucial for ongoing operations.
• Commercial Use: Suitable for hotels, hospitals, and offices that require uninterrupted power supply to maintain essential services.
• Residential Use: Ideal for large homes and villas that may experience power outages due to extreme weather conditions or grid failures.

Advantages of Choosing Our Genset

• Fuel Efficiency: With a fuel consumption rate of 220g/Kw*h at 100% load, our genset is designed to minimize operational costs while maximizing power output.
• Eco-Friendly: The Baudouin engine, combined with the efficient alternator, reduces emissions and complies with international environmental standards.
• Versatile Connectivity: The DEIF control system offers multiple communication options, allowing for seamless integration into your existing systems and remote monitoring capabilities.
• Comprehensive Protection: With a suite of protective features, including under-speed, over-speed, and ECU communication failure protections, our genset ensures the safety and reliability of your power supply.

Optional Equipment to Enhance Your Genset

• Integrated Fuel Tank: Extends the operational time without the need for frequent refueling.
• ATS Box/Cabinet: Automates the transfer of power between the genset and the main grid, ensuring uninterrupted power supply.
• PMG Alternator: Provides a more stable power output, ideal for sensitive electrical loads.
• Trailer Type: Allows for easy transportation and deployment of the genset to remote locations.
• Engine and Water Heater: Ensures optimal engine performance in cold weather conditions.
• Fuel-Water Separator: Protects the engine from damage caused by contaminated fuel.

FAQs

1. What is the rated power of the Baudouin engine?
   • The Baudouin 4M10G88/5 engine has a rated power of 72kW.
2. How efficient is the Leroy Somer alternator?
   • The Leroy Somer TAL-A44-C alternator boasts an efficiency of 92.50%.
3. Does the genset come with a control system?
   • Yes, the genset is equipped with the DEIF SGC-420 control system, offering a wide range of functionalities and protective features.
4. Can the genset be used in harsh environments?
   • Yes, the rugged construction and compact design of our genset make it suitable for use in a wide range of environments.
5. What are the optional equipment available for the genset?
   • Optional equipment includes an integrated fuel tank, ATS box/cabinet, PMG alternator, trailer type, engine and water heater, and fuel-water separator.

Choose our Diesel 80kVA Power Genset with Baudouin Engine for reliable, efficient, and eco-friendly power solutions. Contact us today for more information and to place your order.
