Diesel 168kVA Industrial Generator Deutz Electric Genset With Outdoor Use Soundproof Canopy
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG184DES6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 20 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent / Super Silent Type | Frequency | 60Hz / 1800rpm |
|---|---|---|---|
| Voltage | 480V | Engine Brand | Deutz |
| Engine Model | BF6M1013EC G1 | Alternator Model | TGI274S134 |
| Genset Power | 168kVA / 134kW | Controller | DEIF SGC-420 |
| Highlight | 168kVA deutz diesel generators,Outdoor deutz diesel generators,168kVA deutz generator |
||
Product Description

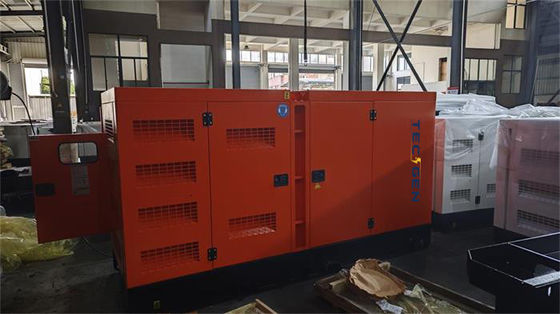

Diesel 168kVA industrial generator Deutz electric genset with outdoor use soundproof canopy
Product Description: Diesel 168kVA Industrial Generator
Standard Features:
Introducing the Diesel 168kVA Industrial Generator, a powerhouse designed to meet the rigorous demands of industrial applications. Powered by a Deutz BF6M1013EC G1 engine, this generator offers unparalleled reliability and performance. The alternator, model TGI274S134, is manufactured by Fujian Tecgen Power Co., Ltd., ensuring efficient and stable power output. With a rated output of 168kVA and a standby output of 184kVA, this generator is perfect for applications requiring continuous and backup power supply.
Key Features:
- Deutz Electric Genset: Equipped with a Deutz engine, known for its durability and fuel efficiency, this genset delivers consistent power output, even under heavy loads.
- High Power Output: The Diesel 168kVA Industrial Generator boasts a rated output of 168kVA and a standby output of 184kVA, making it ideal for a wide range of industrial applications.
- Advanced Controller: The DEIF SGC-420 controller provides precise control over the generator's operations, ensuring optimal performance and efficiency.
- Compact Design: Despite its powerful performance, this generator features a compact design, making it easy to transport and install.
- Quiet Operation: With a noise level of just 72dB(A) at 7 meters, this generator operates quietly, minimizing disturbance to your workspace.
Diesel 168kVA Industrial Generator Datasheets:
| Diesel 168kVA Industrial Generator Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG184DES6 | BF6M1013EC G1 | TGI274S134 | DEIF SGC-420 | 168kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Diesel 168kVA Industrial Generator | |||||
| Engine Model | BF6M1013EC G1 | ||||
| Alternator Mode | TGI274S134 | ||||
| Rated Output | 168kVA / 134kW | ||||
| Standby Output | 184kVA / 147kW | ||||
| Rated Speed | 1800 RPM | ||||
| Frequency | 60 HZ | ||||
| Rated Voltage | 480V | ||||
| Rated Current | 202.1A | ||||
| Breaker | 300A Delixi Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 72dB(A) | ||||
| Net Weight | 2800KGS | ||||
| Genset size | L3100 * W1600 * H1800mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Diesel 168kVA Industrial Generator | |||||
| Manufacture | Deutz | ||||
| Model | BF6M1013EC G1 | ||||
| Rated Output/Speed | 148KW/1800RPM | ||||
| Standby Output/Speed | 155KW/1800RPM | ||||
| Aspiration | Turbocharged & CAC | ||||
| Speed Governor | Electric | ||||
| Engine Type | 6 cylinders in line | ||||
| Bore X Stroke | 108*130mm | ||||
| Displacement | 7.15 L | ||||
| Compression ratio | 19:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1800rpm | ||||
| Fuel Consumption/rated output | 41.8 L / h | ||||
| Fuel Consumption/standby output | 43 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Diesel 168kVA Industrial Generator | |||||
| Alternator Model | TGI274S134 | ||||
| Manufacture | Fujian Tecgen Power Co., Ltd | ||||
| Rate Output | 168kVA | ||||
| Rated voltage(V) | 480V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Diesel 168kVA Industrial Generator | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage:
The Diesel 168kVA Industrial Generator is designed for use in a variety of industrial applications, including factories, hospitals, data centers, and other critical infrastructure. Its high power output and reliability make it an excellent choice for both primary and backup power supply.
Advantage:
- Durability: The Deutz engine is built to last, with a robust design that can withstand the rigors of industrial use.
- Fuel Efficiency: The engine's fuel consumption is optimized to provide maximum power while minimizing fuel costs.
- Ease of Maintenance: With a straightforward design and easy access to critical components, maintaining this generator is a breeze.
- Customizable Options: A range of optional features, such as an integrated fuel tank, water heater, and ATS, allow you to tailor the generator to your specific needs.
Option:
Customize your Diesel 168kVA Industrial Generator with the following options:
- Integrated Fuel Tank: For convenient fuel storage and refueling.
- Water Heater: Keeps the engine warm in cold climates, ensuring smooth start-ups.
- ATS (Automatic Transfer Switch): Automatically switches between primary and backup power sources.
- PMG Generator: Provides a more stable and reliable power output.
- SYNC Function: Allows synchronization with other generators for increased power capacity.
- 12/24 Hours Fuel Tank: Extended runtime options to suit your needs.
- 3000 Hours Spare Parts: Ensure you're always prepared with a supply of essential spare parts.
FAQ:
- What is the rated output of the Diesel 168kVA Industrial Generator?
Answer: The rated output is 168kVA, with a standby output of 184kVA. - What engine powers this generator?
Answer: It is powered by a Deutz BF6M1013EC G1 engine. - How loud is the generator?
Answer: The noise level is 72dB(A) at 7 meters. - Can I customize the generator with additional features?
Answer: Yes, a range of optional features are available to tailor the generator to your specific needs. - What is the warranty period for this generator?
Answer: Please contact us for warranty information.
In conclusion, the Diesel 168kVA Industrial Generator is a versatile and reliable power solution for a wide range of industrial applications. With its Deutz electric genset, high power output, and advanced controller, this generator is designed to meet your power needs while minimizing fuel costs and maintenance requirements. Customize it with a range of optional features to suit your specific needs, and enjoy the peace of mind that comes with owning a Deutz-powered generator. Don't miss out on this exceptional opportunity to power your industrial operations with efficiency and reliability.
