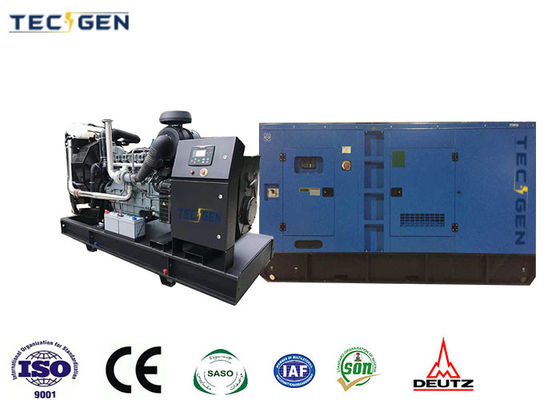

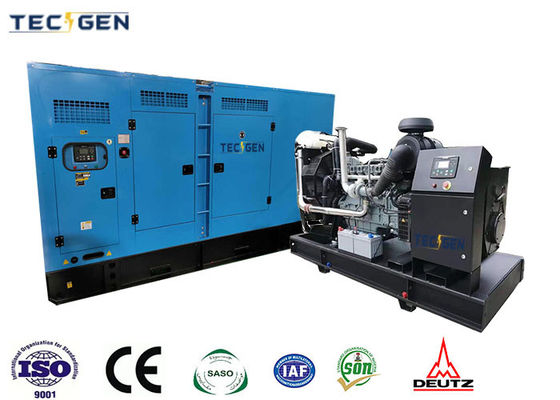

Prime 313kVA generating set Deutz diesel generators with auto controller for industrial sites
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG344DES |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 20 - 40 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open / Silent Type | Product Name | Deutz Generator Set |
|---|---|---|---|
| Frequency | 50Hz / 1500rpm | Engine Model | BF6M1015C-LA G3A |
| Alternator Model | HCI 444ES | Prime Genset Power | 250kW / 313kVA |
| Standby Genset Power | 275kW / 344kVA | Engine Power | 314kW Max |
| Highlight | 313kVA Deutz diesel generators,Auto Controller Deutz diesel generators,Industrial Sites Deutz diesel generators |
||
Product Description
Prime 313kVA generating set Deutz diesel generators with auto controller for industrial sites
Standard Features of the Prime 313kVA Generating Set:
Introducing our robust Prime 313kVA Generating Set powered by a Deutz diesel engine, designed to provide reliable and efficient power solutions for a wide range of applications. This generating set comes in two models: TG344DE (open) and TG344DES (silent), both offering a frequency of 50Hz and a voltage of 400/230V in three-phase configuration. With a prime power rating of 250kW and a standby power of 275kW, this generator is engineered to meet your power needs seamlessly.
Key Features:
- Powerful Engine: Equipped with the Deutz BF6M1015C-LA G3A engine, renowned for its durability and high performance. This six-cylinder engine boasts a displacement of 11.906 liters and a maximum power output of 314kW, ensuring consistent and reliable power generation.
- Efficient Alternator: The Stamford HCI 444ES alternator offers a rated output of 260kW, with a star winding connection and an insulation class of H. It provides a steady-state voltage regulation of 1%, ensuring stable power output.
- Advanced Control System: The DEIF SGC-420 controller integrates AMF (Automatic Mains Failure) module for seamless power transfer, static overcurrent protection, an emergency stop push button, and communication options like RS232 and CAN bus.
- Compact and Durable: Designed for easy installation and transportation, the generating set comes with dimensions of 3000mm (L) x 1320mm (W) x 1700mm (H) for the open model and 3810mm (L) x 1630mm (W) x 2130mm (H) for the silent model, weighing between 2940kg and 3700kg depending on the model.
Prime 313kVA Generating Set Datasheets:
| Technical Specification: | ||
| Prime 313kVA Generating Set Specification | ||
| Genset Model | TG344DE | TG344DES |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 451.8A | |
| Prime Power | 250kW / 313kVA | |
| Standby Power | 275kW / 344kVA | |
| Engine Model | BF6M1015C-LA G3A | |
| Alternator Model | HCI 444ES | |
| Controller | SGC-420 | |
| Weight & Dimensions | ||
| Length (mm) | 3000 | 3810 |
| width (mm) | 1320 | 1630 |
| Height (mm) | 1700 | 2130 |
| Weight (kgs) | 2940 | 3700 |
| Engine Specification | ||
| Brand | Deutz | |
| Engine Model | BF6M1015C-LA G3A | |
| Max power | 314kW | |
| Injection | Indirect | |
| Aspiration | CAC | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 132 x 145 | |
| Displacement (L) | 11.906 | |
| Cooling | water | |
| Compression Ratio | 16.5:1 | |
| Engine Oil capacity (L) | 17 | |
| Coolant Capacity ( In radiator) | 17 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 52.1 | |
| 75% Load (L/h) | 38.2 | |
| 50% Load (L/h) | 23.5 | |
| 25% Load (L/h) | 11.7 | |
| Alternator Specification | ||
| Brand | Stamford | |
| Model | HCI 444ES | |
| Rate Output | 260kW | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | DEIF | |
| Model | SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger, overcurrent | ||
| Emergency stop push button | ||
| RS232, CAN | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Usage:
The Prime 313kVA Generating Set is ideal for a variety of applications, including industrial sites, commercial buildings, hospitals, and remote locations where a reliable power source is crucial. It serves as a primary or backup power source, ensuring uninterrupted power supply during outages or emergencies.
Advantages:
- Fuel Efficiency: With fuel consumption rates of 52.1 liters per hour at 100% load, 38.2 liters at 75% load, 23.5 liters at 50% load, and 11.7 liters at 25% load, this generator offers exceptional fuel efficiency.
- Low Maintenance: The dry element air filter and electric governor contribute to reduced maintenance requirements, extending the lifespan of the engine.
- Silent Operation: The silent model (TG344DES) is engineered to operate quietly, minimizing noise pollution and making it suitable for residential or noise-sensitive areas.
- Reliability: Backed by the reputation of Deutz engines and Stamford alternators, this generating set is built to last, providing dependable power when you need it most.
Optional Equipment:
Customize your generating set with a variety of optional equipment, including an ATS (Automatic Transfer Switch) box, switch box, remote control, daily fuel tank, engine heater, water heater, PMG generator, parallel panel, fuel-water separator, trailer type for easy mobility, and a 3000-hour spare parts kit.
FAQ:
- What is the fuel consumption of the Prime 313kVA Generating Set?
- The fuel consumption ranges from 11.7 liters per hour at 25% load to 52.1 liters per hour at 100% load.
- Can I use this generator in a residential area?
- Yes, the silent model (TG344DES) operates quietly, making it suitable for residential or noise-sensitive areas.
- What is the maximum altitude this generator can operate at?
- The generating set can operate at an altitude of up to 1000 meters.
- Is the generating set easy to maintain?
- Yes, with a dry element air filter and electric governor, maintenance requirements are minimal, ensuring long-term reliability.
- What is the warranty period for this product?
- Please contact our sales team for information on the warranty period and terms.
By leveraging the power of the Deutz diesel engine and the reliability of the Stamford alternator, the Prime 313kVA Generating Set stands out as a superior power solution. Whether you need a primary or backup power source, this generating set delivers consistent and reliable performance. Don't let power outages disrupt your operations; choose the Prime 313kVA Generating Set for peace of mind and uninterrupted power supply. For more information, contact us today!
