Continuous 275kVA electric genset silent Deutz genset with Leroy Somer alternator

Continuous 275kVA electric genset silent Deutz genset with Leroy Somer alternator

Standard Features:

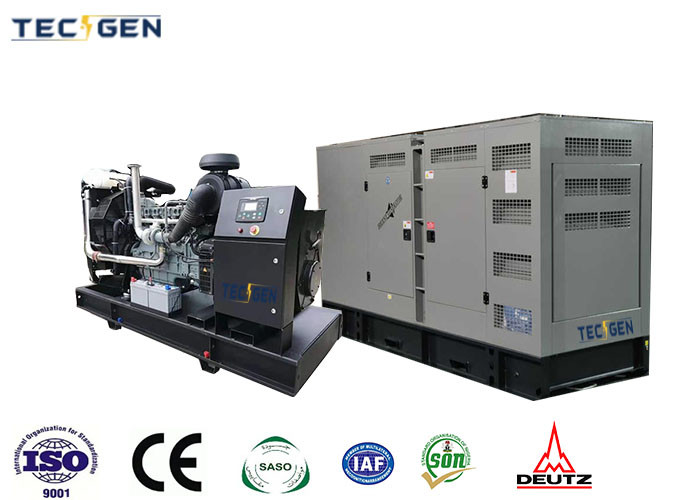

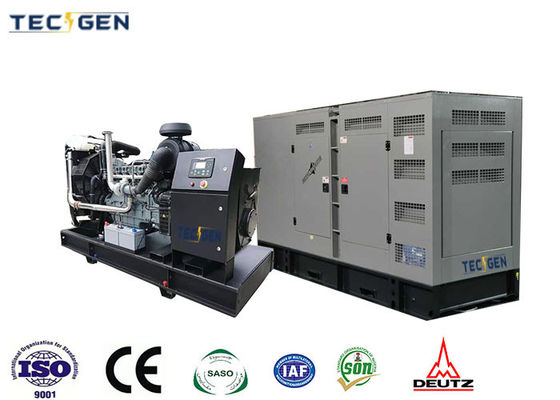

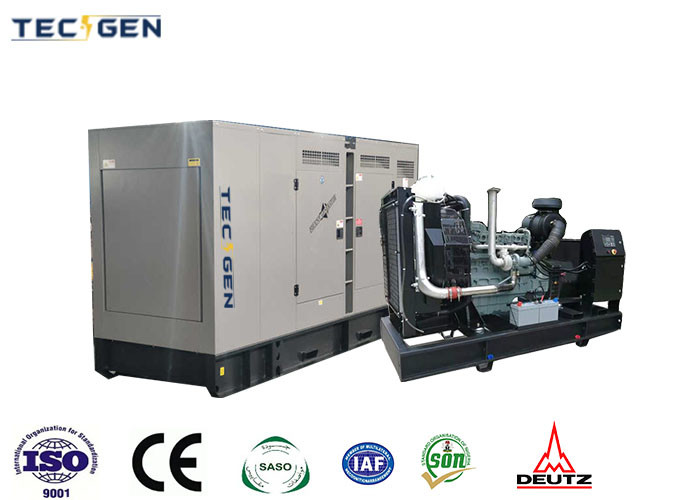

Our Continuous 275kVA Electric Genset, model TG303DE and TG303DES (open and silent versions respectively), is engineered to provide reliable power solutions for various applications. Running at a frequency of 50Hz and outputting voltage of 230/400V, this 3-phase, 4-wire genset is designed to meet the power demands of small to medium-sized businesses and institutions. With a prime power rating of 220kW and a standby power of 242kW, it ensures continuous and uninterrupted power supply, even during emergencies.

Key Features:

1. Powerful Engine: Equipped with the Deutz BF6M1015C-LA G2A engine, this genset boasts a standby power of 285kW, ensuring it can handle heavy loads with ease. The engine features indirect injection, CAC aspiration, and a displacement of 11.906 liters, providing efficient and clean power output.
2. Silent Operation: The silent version, TG303DES, comes with advanced sound-damping technology, making it ideal for use in noise-sensitive environments. Its compact design ensures minimal disturbance, making it perfect for residential areas, hospitals, and other sensitive locations.
3. High-Quality Alternator: The Leroy Somer TAL-A46-E alternator offers a rate output of 220kW, ensuring stable and consistent power supply. With an insulation class of H and an IP23 enclosure, it is designed for durability and reliability in harsh conditions.
4. Advanced Controller System: The DEIF SGC-420 controller provides comprehensive control functions, including AMF (Automatic Mains Failure) module, static battery charging, emergency stop pushbutton, and ATS (Automatic Transfer Switch) connection. This ensures seamless operation and easy monitoring.
5. Long-lasting Fuel Tank: The integrated 8-hour fuel tank ensures continuous operation without the need for frequent refueling, making it suitable for extended power outages.

Continuous 275kVA Electric Genset Technical Datasheets:

Usage:

The Continuous 275kVA Electric Genset is ideal for a wide range of applications, including commercial buildings, hospitals, data centers, industrial facilities, and more. Its robust design and reliable performance ensure that it can handle the most demanding power requirements, providing a dependable backup power source during emergencies.

Advantage:

• Reliability: With a Deutz engine and Leroy Somer alternator, this genset is built to last, providing years of reliable service.
• Efficiency: The indirect injection and CAC aspiration ensure efficient fuel combustion, reducing fuel consumption and emissions.
• Quiet Operation: The silent version offers minimal noise pollution, making it suitable for use in noise-sensitive environments.
• Easy Maintenance: The design allows for easy access to critical components, making maintenance and repairs straightforward.
• Comprehensive Control: The DEIF SGC-420 controller provides comprehensive control and monitoring capabilities, ensuring seamless operation.

Options:

• ATS Box: Wall-mounted automatic transfer switch box for seamless power transfer.
• Remote Control: Remote monitoring and control capabilities for added convenience.
• Daily Fuel Tank: Additional fuel tank for extended operation.
• Engine Heater: Keeps the engine warm during cold weather, ensuring easy start-up.
• Water Heater: Keeps the coolant warm, preventing freezing in cold climates.
• PMG Generator: Provides a stable power source for the controller and other auxiliary equipment.
• Parallel Panel: Allows for the connection of multiple gensets for increased power output.
• Fuel-Water Separator: Ensures clean fuel supply, preventing engine damage.
• Silent & Trailer Type: Available in silent and trailer-mounted versions for added versatility.
• Remote Monitor: Real-time monitoring of genset performance and diagnostics.
• 3000 Hours Spare Parts: Kit including essential spare parts for 3000 hours of operation.

FAQ:

Q: What is the prime power rating of the Continuous 275kVA Electric Genset?
A: The prime power rating is 220kW.

Q: Is the genset available in a silent version?
A: Yes, the TG303DES model is designed for silent operation.

Q: What type of engine does this genset use?
A: It uses the Deutz BF6M1015C-LA G2A engine.

Q: How long can the genset operate on a full fuel tank?
A: The integrated 8-hour fuel tank allows for continuous operation for up to 8 hours at full load.

Q: What is the warranty period for this genset?
A: Please contact us for warranty details.

By incorporating the Continuous 275kVA Electric Genset into your power solution, you can ensure reliable and efficient power supply for your business or institution. With its robust design, advanced features, and versatile options, this genset is the perfect choice for meeting your power needs. For more information or to place an order, please contact us today.
