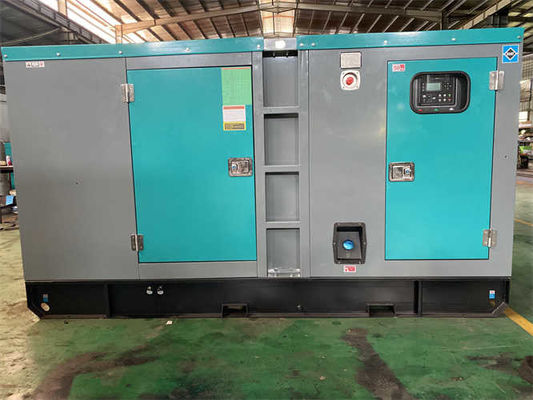

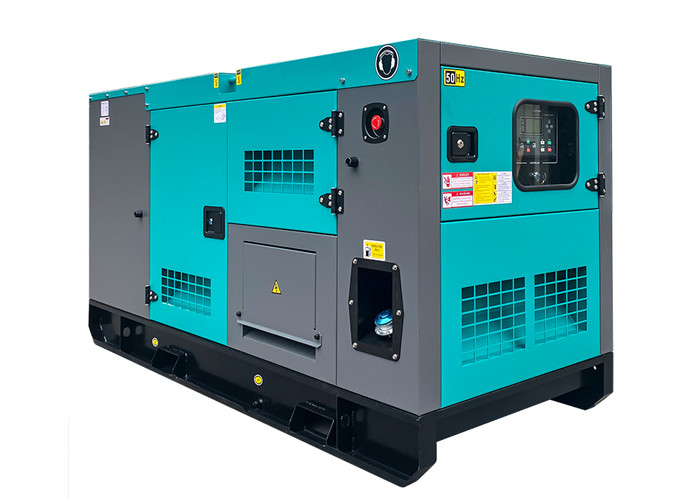

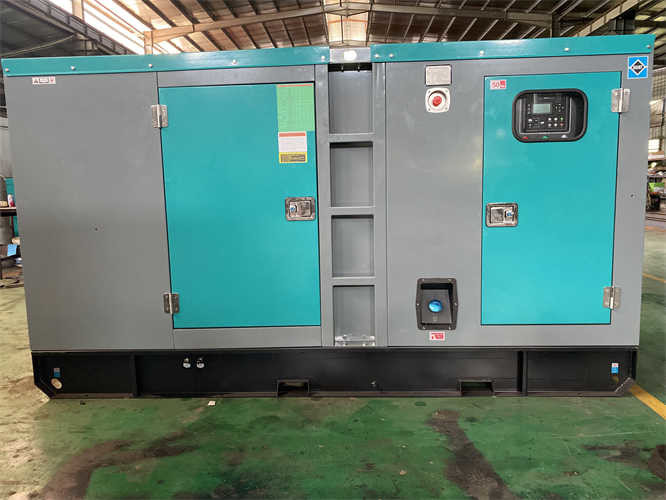

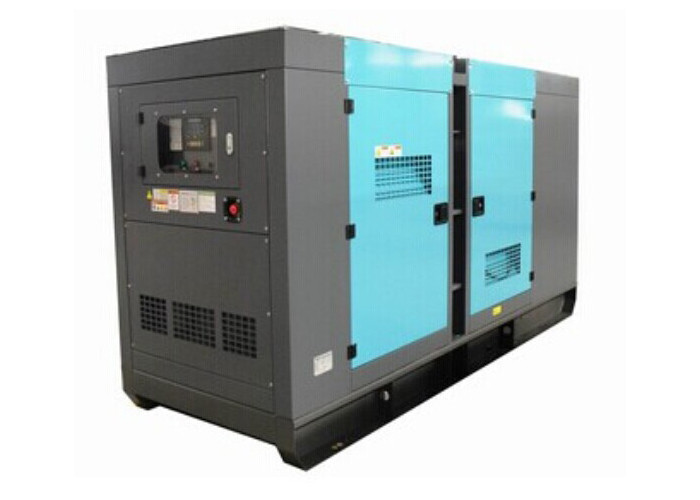

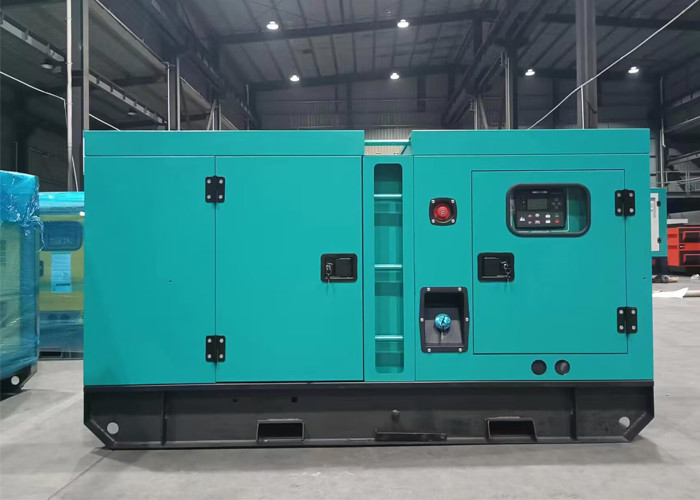

100KVA UK Perkins Diesel Generators
| Place of Origin | China |
|---|---|
| Brand Name | Perkins |
| Certification | CE/SONCAP/FCC/SGS |
| Model Number | TGP110S |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plywood case Package or Plastic film package in container |
| Delivery Time | 15-20 working days after received deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Open Or Silent | Engine Brand | Perkins |
|---|---|---|---|
| Alternator Brand | Stamford/Leroy Somer/Tecgen | Control Panel | Digital |
| Maintenance | Low | Noise Level | 65dBA |
| Highlight | 100KVA Perkins Diesel Generators,UK Perkins Diesel Generators,65dBA perkins 100kva generator |
||
Product Description
Low Fuel Consumption 100KVA UK Perkins Power Generator 110KVA Standby Diesel Generator Set
1) Engine: UK Perkins diesel engine, Water-cooled
2) Alternator: Stamford / Leroy Somer / Marathon / Tecgen Alternator
Brushless H class insulation, Self excitation, IP 23 protection, AVR regulator,THF < 5%,low radio interference.
3) 3 phase 4 wires
4) Voltage Available :
208V/220V/230V/240V/380V/390V/400V/415V/440V/460V/480V
PRODUCTS DETAILS
| DIESEL GENERATOR SET | |
| Genset Model | TG110PS |
| Prime Power | 100KVA/80KW |
| Standby Power | 110KVA/88KW |
| Rated Voltage (V) | 380 |
| Rated Frequency (Hz) | 50 |
| Rated Speed (RPM) | 1500 |
| Power Factor (COS¢) | 0.8 (lagging) |
| ENGINE DATA | |
| Engine Brand | Perkins |
| Engine Model | 1104C-44TAG2 |
| Engine Power(KW) | 103 |
| No. of Cylinders | 4 |
| Cylinder Arrangement | In-line |
| Air intake way | Turbo |
| Governor | Electronic |
| Bore*Stroke (mm*mm) | 105*127 |
| Displacement (Liter) | 4.41 |
| Compression Ratio | 18.2:1 |
| Cooling System | Water-Cooled |
| Starting Method | DC 24V Electrical Starting |
| Fuel Consumption (g/kw.h) | 205 |
| ALTERNATOR DATA | |
| Alternator Brand | Stamford |
| Alternator Model | UCI274C |
| Connecting Type | 3 Phases and 4 Wires |
| Number of Bearing | Single |
| Production Grade | IP23 |
| Altitude | ≤ 1000m |
| Exciter Type | Brushless, Self-exciting, AVR & 100% Copper Winding Wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤ 50 |
| Telephone Harmonic Factor (THF) | ≤ 2% |
| Voltage Regulation, Steady State | 1.00% |
| Transient State Voltage | ≤ -15% ~ +20% |
Tecgen Power Generator Feature:
1, Output range: 10kVA to 3000kVA Heavy Duty diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, Chint circuit breaker
14, Three-phase output meets differing requirements
15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
16, Working Hours Base Fuel Tank
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date
